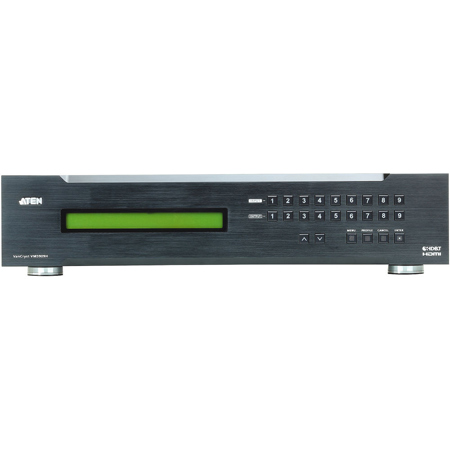

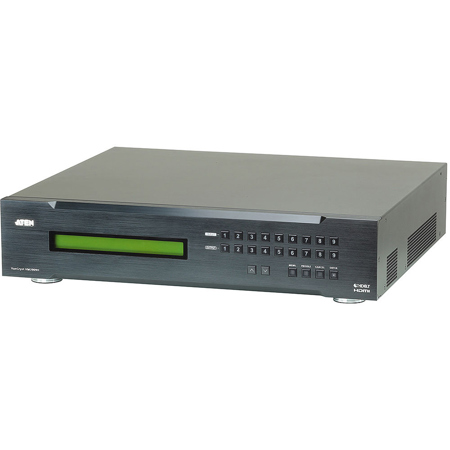

Aten VM3909H 2RU 9x9 HDMI HDBaseT-Lite Matrix Switch

You can experience the power of advanced HDBaseT technology with the sophisticated VM3909H 2RU 9x9 HDMI HDBaseT-Lite Matrix Switch by ATEN. This high-tech device extends uncompressed 4K/Full HD digital video, audio, IR, and power through a single Cat 6a cable for up to 40/70 meters, making it an ideal solution for large venues or installations.

The VM3909H Matrix Switch, when paired with VE805R receivers, supports both ATEN's Seamless Switch technology and Video Wall functionality. The Seamless Switch technology, powered by an FPGA graphics processor, ensures continuous video streaming, real-time control, and stable signal transmission across all sources.

This innovative switch supports 9 HDMI inputs and mirrored 9 HDMI and HDBaseT outputs. The mirrored HDMI outputs can serve as a verification tool for the corresponding HDBaseT output or as an additional video display. The HDBaseT connectivity feature allows for long-distance connection of HDMI displays via a single Cat 5e/6/6a cable. Additionally, the HDBaseT Anti-jamming feature ensures resistance to signal interference during high-quality video transmission.

The VM3909H Matrix Switch also features Power over HDBaseT (POH), supplying power over a long distance from the switch to a receiver via a single Cat 5e/6/6a cable. This state-of-the-art device also offers multiple control methods, including system management via front-panel pushbuttons, IR, RS-232, and Ethernet (Telnet/Web GUI) connections.

The Video Wall functionality allows you to create up to 18 custom video wall profiles for unique screen layouts through an intuitive web interface. The VM3909H Matrix Switch is designed as a functional and integrated control system, perfect for residential, commercial, and conference center settings.

Please note that the HDMI outputs do not support the Video Wall and Seamless Switch functions. The Seamless Switch, Video Wall, and POH features are only available when used with a compatible receiver. The VM3909H can provide up to 15.4 W @ 54 VDC of power per port and 75W of total power; please ensure that the power consumption of the devices connected to the VM3909H does not exceed this limit.
