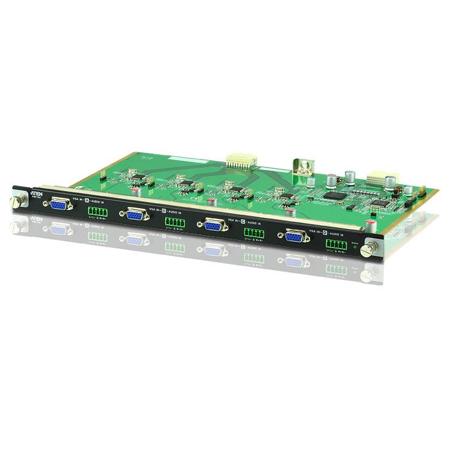

Aten VM7104 4-Port VGA Input Board for VM1600 Modular Matrix Switch

SKU: ANVM7104 MFR: VM7104
Earn VIP Reward Points

Key Features

  • Expand your video matrix with this 4-Port VGA Input Board, offering versatile compatibility.
  • Achieve high video quality with resolutions up to 1920x1200 for crisp, clear visuals.
  • Enjoy reliable connectivity through HDB-15 and captive screw connectors for audio inputs.
  • Easily integrate into your VM1600 Modular Matrix Switch for a user-friendly interface.
  • Optimize real-time streaming with a max bandwidth of 300 MHz for seamless broadcasts.
  • Ensure easy setup with a compact design, perfect for various video switching applications.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten VM7104 Specifications

  • Compatibility

    VM1600 Modular Matrix Switch

  • Video Input: Interfaces

    4 x HDB-15 Female (Blue)

  • Video Input: Impedance

    75 Ohms

  • Max. Bandwidth

    300 MHz

  • Max. Resolution

    Up to 1920 x 1200

  • Max. Distance

    1.8 m

  • Audio Inputs: Interfaces

    4 x Captive Screw Connectors, 5 pole

  • Consumption

    7.1 W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0 - 80% RH, Non-Condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    35.20 x 23.70 x 2.28cm / 13.86 x 9.33 x 0.90"

  • Weight

    0.56kg / 1.23lbs

About Aten VM7104

Become the master of your multimedia setup with the VM7104 4-Port VGA Input Board for the VM1600 Modular Matrix Switch. This high-quality, durable input board is designed to efficiently route four VGA video and audio sources to up to 16 displays. It's the perfect solution for managing complex video setups, whether in a professional or home environment.

The VM7104 is not just reliable, but also advanced, supporting a wide range of input signals including RGBHV, RGBS, Y CbCr, and YPbPr. This ensures compatibility with a variety of video sources, providing you with the flexibility you need in a modern multimedia setup.

One of the standout features of this VGA input board is its ability to embed stereo audio into HDMI Audio output. This means you can manage both your video and audio sources through one efficient, high-quality device.

Designed with the user in mind, the VM7104 features a hot-swappable design. This means you can change the board without having to power off the unit, saving you time and reducing the risk of any downtime in your setup.

Manufactured by Aten, a reputable brand known for its high-quality products, the VM7104 4-Port VGA Input Board for VM1600 Modular Matrix Switch is a reliable and efficient choice for your multimedia needs.

Aten VM7104 Features

  • Connects up to 4 VGA or Component inputs
  • Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals
  • Hot-swappable design for easy integration of I/O boards
  • Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibility

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Expand your video matrix with this 4-Port VGA Input Board, offering versatile compatibility.
  • Achieve high video quality with resolutions up to 1920x1200 for crisp, clear visuals.
  • Enjoy reliable connectivity through HDB-15 and captive screw connectors for audio inputs.
  • Easily integrate into your VM1600 Modular Matrix Switch for a user-friendly interface.
  • Optimize real-time streaming with a max bandwidth of 300 MHz for seamless broadcasts.
  • Ensure easy setup with a compact design, perfect for various video switching applications.

What's in the box:

  • Aten VM7104 4-Port VGA Input Board for VM1600 Modular Matrix Switch
  • 4x Terminal Block Connectors
  • User Instructions
  • Aten 2 Year Limited Warranty
