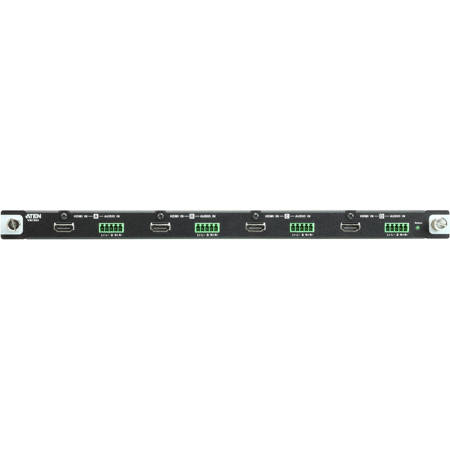

Aten VM7804 4-Port HDMI Input Board, 1920x1080 Maximum Video Resolution Support

SKU: ANVM7804 MFR: VM7804
Earn VIP Reward Points

Key Features

  • Enhance your video switching with this 4-Port HDMI input board, supporting up to 1920x1080 resolution.
  • Experience reliable HDMI connectivity; supports 3D, Deep Color, and Consumer Electronics Control (CEC).
  • This video switcher component ensures wide compatibility with HDCP 1.4 for protected content.
  • Achieve low latency video distribution with a max data rate of 6.75 Gbps for seamless transitions.
  • Simplify your setup; this I/O module offers easy integration for professional video applications.
  • Enjoy affordable performance with this Aten HDMI input board, perfect for live streaming setups.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten VM7804 Specifications

  • Video Input: Interface

    4x HDMI Type A Female (Black)

  • Video Input: Impedance

    100Ohms

  • Video Output: Interface

    4x HDMI Type A Female (Black)

  • Video Output: Impedance

    100Ohms

  • Video: Max Data Rate

    6.75 Gpbs (2.25 Gbps Per Lane)

  • Video: Max Pixel Clock

    225 MHz

  • Video: Compliance

    HDMI (3D, Deep Color)
    HDCP 1.4 Compatible
    Consumer Electronics Control (CEC)

  • Video: Max Resolution

    Up to 1920 x 1080

  • Video: Max Distance

    15m / 49.21'

  • Audio: Input

    4x Captive Screw Connector, 5 Pole

  • Audio: Output

    4x Captive Screw Connector, 5 pole

  • Power Consumption

    7W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-Condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    35.20 x 23.80 x 2.28cm / 13.86 x 9.37 x 0.90"

  • Weight

    0.55kg / 1.21lbs

  • UPC Code

    672792005596

About Aten VM7804

The VM7804 4-Port HDMI Input Board is a durable and high-quality solution for your audio and video needs. This advanced and efficient board offers a seamless way to route any of four audio or video sources to any of four displays, when used in conjunction with an ATEN Modular Matrix Switch. With a maximum video resolution support of 1920x1080, this reliable HDMI input board ensures crystal clear visuals for an enhanced viewing experience.

In addition to its video capabilities, the VM7804 also excels in audio handling. It supports HDMI audio extraction and the embedding of stereo audio, providing a comprehensive solution for your multimedia needs. This 4-port HDMI input board is designed to accommodate multiple HDMI devices such as computers, gaming consoles, and media players, making it a versatile addition to your tech setup.

Choose the VM7804 4-Port HDMI Input Board for its superior resolution support and multi-device compatibility, and experience the difference in quality and efficiency.

Aten VM7804 Features

  • Superior video quality - HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
  • HDMI (3D, Deep Color); HDCP 1.4 Compatible
  • Built-in scaler on each output port to support the scaling function for different video Resolutions
  • Consumer Electronics Control (CEC) support
  • EDID Expert - selects optimum EDID settings for smooth power-up and the highest quality display
  • Built-in EDID wizard - provides an easy way to customized EDID settings
  • Hot-swappable design for easy integration of I/O boards
  • Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Enhance your video switching with this 4-Port HDMI input board, supporting up to 1920x1080 resolution.
  • Experience reliable HDMI connectivity; supports 3D, Deep Color, and Consumer Electronics Control (CEC).
  • This video switcher component ensures wide compatibility with HDCP 1.4 for protected content.
  • Achieve low latency video distribution with a max data rate of 6.75 Gbps for seamless transitions.
  • Simplify your setup; this I/O module offers easy integration for professional video applications.
  • Enjoy affordable performance with this Aten HDMI input board, perfect for live streaming setups.

What's in the box:

  • Aten VM7804 4-Port HDMI Input Board
  • User Instructions
  • 4x Terminal Block
  • Aten 3 Year Limited Warranty
