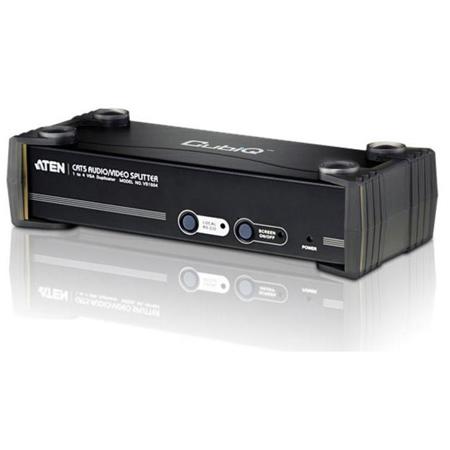

Aten VS1504T 4-Port VGA/Audio Cat 5e/6 Splitter with RS-232, Up to 1920x1200 Video Resolution

SKU: ANVS1504T MFR: VS1504T
Earn VIP Reward Points

Key Features

  • Distribute VGA video & audio to 4 displays using Cat 5e/6 cable with this splitter.
  • Achieve up to 1920x1200 video resolution at 60Hz for clear, crisp display quality.
  • Extend your display signal up to 150m, perfect for presentations & digital signage.
  • Use RS-232 control for remote management, ideal for commercial audio visual setups.
  • Enjoy reliable audio quality alongside video, enhancing multimedia presentations.
  • This durable metal splitter supports 300MHz bandwidth, ensuring stable performance.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten VS1504T Specifications

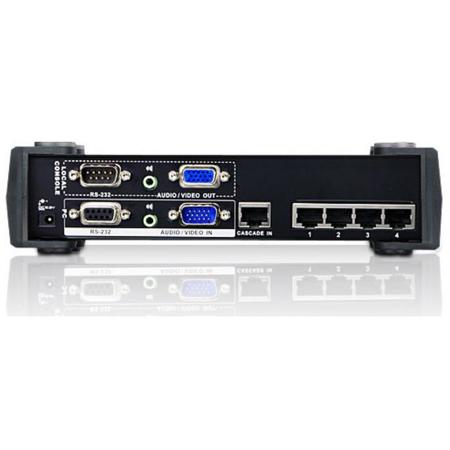

  • Video Input: Interface

    1x HDB-15 Male (Blue)

  • Video Input: Impedance

    75Ohms

  • Video Input: Max Distance

    1.8m / 5.91'

  • Video Output: Interface

    1x HDB-15 Female (Blue) - Local Output 4x RJ-45 Female

  • Video Output: Impedance

    75Ohms

  • Video: Max. Bandwidth

    300 MHz

  • Video: Max Resolutions / Distance

    Up to 1920 x 1200 at 60Hz at 30m; 1280 x 1024 at 60Hz at 150m

  • Audio: Input

    1x Mini Stereo Jack Female (Green)

  • Audio: Output

    1x Mini Stereo Jack Female (Green)

  • Control: RS-232

    Connector:
    1x DB-9 Female (Black
    1x DB-9 Male (Black)

  • Power

    Connector: 1x DC Jack (Black)
    Consumption: 5.3 VDC, 4.7W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-Condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    8.25 x 2.25 x 3.375" / 20.96 x 5.72 x 8.57cm

  • Weight

    0.75kg / 1.65lbs

  • UPC Code

    672792002007

About Aten VS1504T

What sets the ATEN VS1504T Cat 5 Audio/Video Splitter apart is its high-quality, durable, and efficient design that enables the transmission of superior audio and video content to multiple displays. With a reach extending up to 150m (500') from a single input source, this reliable device is an economical solution for your multimedia distribution needs.

The VS1504T is not just a 4-Port VGA/Audio Cat 5e/6 Splitter with RS-232, it's a powerhouse that supports a video resolution of up to 1920x1200. This makes it perfectly suited for high-resolution video applications, ensuring your content is displayed with the clarity and detail it deserves.

One of the standout features of this user-friendly device is its cascading capability up to three levels. This means that when paired with ATEN repeaters in an installation, the VS1504T can support thousands of displays, making it an invaluable tool for large-scale setups.

Incorporating RS-232 connectivity, the VS1504T allows for the inclusion of serial devices such as touchscreens in your installation. This flexibility makes it an ideal choice for a variety of settings that require multimedia content to be delivered to multiple destinations.

Whether you're looking to enhance your in-store or tradeshow digital signage, broadcast information to public locations, cover sporting events, or equip theater and lecture overview rooms, the ATEN VS1504T Cat 5 Audio/Video Splitter is your go-to solution. It's also a perfect fit for classroom and company training facilities, ensuring your content reaches every corner of the room.

In a nutshell, the ATEN VS1504T is a testament to Aten's reputation for producing high-quality, reliable networking and connectivity solutions.

Aten VS1504T Features

  • One video input to 4 video outputs
  • Cascadable to three levels - provides up to thousands of video signals when combined in an installation with ATEN receiving devices
  • Audio and serial enabled
  • Uses Cat 5e (or higher) cable to extend displays up to 500 ft, 1485 ft when combined with aten receiving devices
  • High quality video - supports 1920 x 1200 at 60Hz
  • Group screens off/on function
  • Provides two RS-232 channels for selection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Distribute VGA video & audio to 4 displays using Cat 5e/6 cable with this splitter.
  • Achieve up to 1920x1200 video resolution at 60Hz for clear, crisp display quality.
  • Extend your display signal up to 150m, perfect for presentations & digital signage.
  • Use RS-232 control for remote management, ideal for commercial audio visual setups.
  • Enjoy reliable audio quality alongside video, enhancing multimedia presentations.
  • This durable metal splitter supports 300MHz bandwidth, ensuring stable performance.

What's in the box:

  • Aten VS1504T 4-Port VGA/Audio Cat 5e/6 Splitter with RS-232
  • VGA/Audio Cable (1.8m)
  • Power Adapter
  • User Guide
  • Aten 3 Year Limited Warranty
