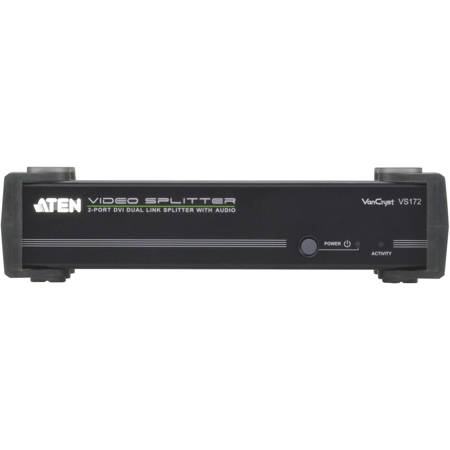

Aten VS172 2-Port DVI Dual Link Splitter with Audio
Aten VS172: Picture 1 thumbnail
Aten VS172: Picture 2 thumbnail
Aten VS172: Picture 3 thumbnail
See all Aten items

Aten VS172 2-Port DVI Dual Link Splitter with Audio/RS232, Up to 2560x1600 Video Resolution Support

SKU: ANVS172 MFR: VS172
Be the first to review this itemAsk a Question
$368.00
OR
$62/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Duplicate your DVI video with this splitter, broadcasting to two displays at once!
  • Experience high-resolution video: supports up to 2560x1600 with this DVI splitter.
  • Share audio alongside video, perfect for presentations using this audio splitter.
  • Control via RS-232 for seamless integration; this display splitter offers easy setup.
  • Compact metal housing ensures durability and reliability for this video splitter.
  • HDCP compliant DVI splitter ensures protected content displays without issue, always!
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Aten VS172 Specifications

  • Video Input

    Interface: 1x DVI-D Female (White)
    Impedance: 100Ohms
    Max distance: Up to 1.8m / 5.91'

  • Video Output

    Interface: 2x DVI-D Female (White)
    Impedance: 100Ohms

  • Video

    Max. data rate: 13.5 Gbps (2.25 Gbps Per Lane)
    Max. pixel clock: 225 MHz
    Compliance: HDCP Compatible
    Max resolutions: Up to 2560 x 1600
    Max distance: Up to 5m / 16.40'

  • Audio Input

    1x Mini Stereo Jack Female (Green)

  • Audio Output

    2x Mini Stereo Jack Female (Green)

  • Control: RS-232

    Connector: 1x DB-9 Female (Black)
    Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

  • EDID Settings

    EDID Mode: Default / Port 1 / Auto

  • Power Connector

    1x DC Jack

  • Power Consumption

    5.3 VDC, 3.1W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0 - 80% RH, Non-Condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    21.00 x 8.80 x 5.55cm / 8.27 x 3.46 x 2.19"

  • Weight

    0.68kg / 1.50lbs

  • UPC Code

    672792003691

About Aten VS172

The VS172 2-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to two audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600. The built-in bi-directional RS-232 port on the rear panel allows the splitter to be controlled through a Control Unit, PC, and/or home automation/home theater software package for complete system integration.

The VS172 is easy to operate and can be cascaded to three levels, handling up to 8 monitors, which makes them the ideal solution for situations such as: a) Broadcasting video information to the public (news headlines, stock prices, airline and train schedules, etc.) b) Company training facilities c) Classroom instruction.

Aten VS172 Features

  • Displays DVI audio/video to multiple DVI-compatible monitors or projectors
  • Superior video quality - up to 2560 x 1600 at 60 Hz including 2K-resolution (2048 x 2048 at 60 Hz)
  • Cascadable to 3 levels - provides up to 8 video signals
  • Audio enabled
  • Features RS-232 serial port for command controls
  • RS-232 Chain Control - use RS-232 commands to control cascaded devices via a DVI Cable
  • EDID Expert - selects the optimum EDID settings via RS-232

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Duplicate your DVI video with this splitter, broadcasting to two displays at once!
  • Experience high-resolution video: supports up to 2560x1600 with this DVI splitter.
  • Share audio alongside video, perfect for presentations using this audio splitter.
  • Control via RS-232 for seamless integration; this display splitter offers easy setup.
  • Compact metal housing ensures durability and reliability for this video splitter.
  • HDCP compliant DVI splitter ensures protected content displays without issue, always!

What's in the box:

  • Aten VS172 2-Port DVI Dual Link Splitter with Audio
  • Power Adapter
  • User Instructions
  • Aten 3 Year Limited Warranty
