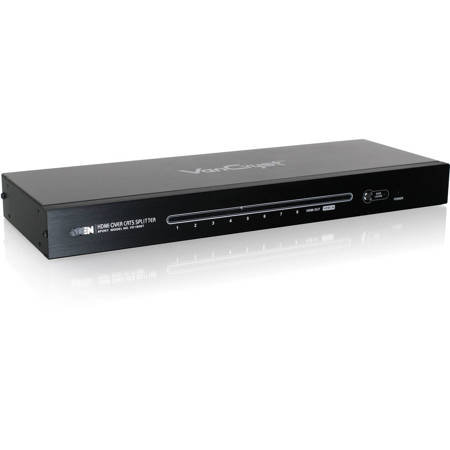

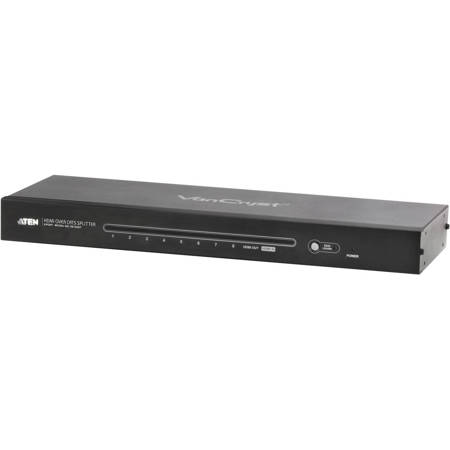

Aten VS1808T 8-Port HD Video/Audio HDMI Over CAT5 Splitter

SKU: ANVS1808T MFR: VS1808T
Earn VIP Reward Points

Key Features

  • Extend HDMI signals up to 60m with this 8-port splitter, perfect for presentations.
  • Enjoy full 1080p HD video and audio quality across multiple displays using CAT5 cables.
  • This HDMI over CAT5 splitter supports EDID modes, ensuring optimal display compatibility.
  • Control your display splitter via RS-232 for seamless integration into control systems.
  • Durable metal housing ensures reliable performance for your video and audio distribution.
  • Simplify your setup with this HDMI splitter, ideal for events, retail, and education.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten VS1808T Specifications

  • Video Input

    Interface: 1x HDMI Type A Female (Black)
    Impedance: 100Ohms
    Max distance: Up to 1.8m / 5.91'

  • Video Output

    Interface: 1x HDMI Type A Female (Black) - Local Output, 8x RJ-45 Female
    Impedance: 100Ohms

  • Video

    Max. data rate: 6.75 Gbps (2.25 Gbps Per Lane)
    Max. pixel clock: 225 MHz
    Compliance: HDMI (3D, Deep Color), HDCP Compatible, Consumer Electronics Control (CEC)
    Max resolutions: Up to 1080p (Depends on connected receiver)
    Max distance: Up to 60m / 196.85' (Depends on connected receiver)

  • Audio Input

    1x HDMI Type A Female (Black)

  • Audio Output

    1x HDMI Type A Female (Black)

  • Control: RS-232

    Connector: 1x DB-9 Female (Black)
    Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

  • EDID Settings

    EDID Mode: Default / Port 1 / Learn

  • Power Connector

    1x DC Jack

  • Power Consumption

    5.3 VDC, 13W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0 - 80% RH, Non-Condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    43.72 x 15.78 x 4.40cm / 17.21 x 6.21 x 1.73"

  • Weight

    2.15kg / 4.74lbs

  • UPC Code

    672792003103

About Aten VS1808T

Experience the power and efficiency of the VS1808T 8-Port HD Video/Audio HDMI Over CAT5 Splitter, a high-quality, durable solution for your multimedia distribution needs. This user-friendly device is designed to connect a single source to eight displays over a long distance, making it an ideal choice for professional A/V installations that require multimedia content to be delivered to multiple destinations.

The VS1808T HDMI Over CAT5 Splitter extends displays up to 60 meters, supporting HDMI features such as 3D and Deep Color. It also supports Dolby True HD and DTS HD Master Audio, ensuring superior audio quality to match the high-definition visuals. With HDCP compatibility, this device ensures secure, copyright-protected content transmission.

This HDMI over CAT5 splitter offers a local HDMI output and features a RS-232 serial port for command controls. It's cascadable to three levels, providing flexibility for larger installations. It supports superior video quality, including HDTV resolutions of 480p, 720p, 1080i, and 1080p (1920 x 1080), and includes an EDID mode selection for optimal display settings.

The VS1808T is compatible with VB802 HDMI Over CAT5 Repeater and VE800R HDMI Receiver units, allowing for signal transmission up to 300 meters. Its Consumer Electronics Control (CEC) feature allows interconnected HDMI devices to communicate and respond to a single remote control, simplifying your setup.

Perfect for a wide range of applications, the VS1808T HDMI Over CAT5 Splitter is an excellent choice for in-store or tradeshow digital signage, public broadcasting of information such as news or travel updates, sporting events, theater and lecture rooms, and company training facilities. Experience the reliability and efficiency of this Aten-made HDMI over CAT5 splitter, designed to meet your multimedia distribution needs with ease and precision.

Aten VS1808T Features

  • 8-port HDMI over CAT5 splitter for efficient HD audio/video distribution
  • Extends HDMI signals up to 60m, supporting 3D and Deep Color
  • Compatible with Dolby True HD and DTS HD Master Audio for high-quality sound
  • Cascadable up to three levels with RS-232 serial port for advanced control
  • Supports HDTV resolutions up to 1080p for crystal-clear video quality
  • Ideal for digital signage, broadcasting, and educational facilities

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend HDMI signals up to 60m with this 8-port splitter, perfect for presentations.
  • Enjoy full 1080p HD video and audio quality across multiple displays using CAT5 cables.
  • This HDMI over CAT5 splitter supports EDID modes, ensuring optimal display compatibility.
  • Control your display splitter via RS-232 for seamless integration into control systems.
  • Durable metal housing ensures reliable performance for your video and audio distribution.
  • Simplify your setup with this HDMI splitter, ideal for events, retail, and education.

What's in the box:

  • Aten VS1808T 8-Port HD Video/Audio HDMI Over CAT5 Splitter
  • Power Adapter
  • 4x Foot Pad Set
  • Mounting Kit
  • User Instructions
  • Aten 3 Year Limited Warranty
