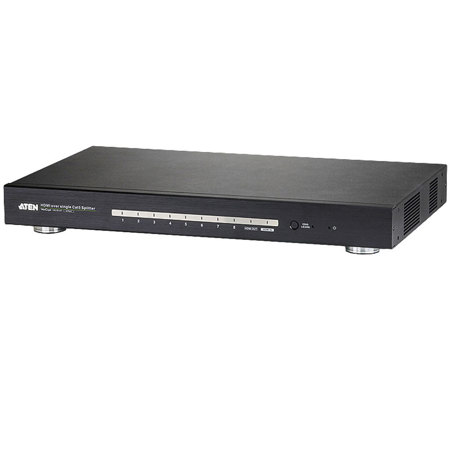

Aten VS1818T 8-Port HDBaseT HDMI Over Single Cat 5 Splitter

SKU: ANVS1818T MFR: VS1818T
Earn VIP Reward Points

Key Features

  • Distribute HDMI signals with this 8-port splitter over Cat 5, reaching up to 328 feet.
  • Experience superior sound quality and video with HDBaseT technology for optimal performance.
  • This HDMI splitter supports up to 4K resolutions, ensuring crystal-clear visuals for any display.
  • Easily manage your display setup with RS-232 control, offering seamless integration and control.
  • Perfect for presentations, this splitter supports multiple displays with HDMI and HDCP compliance.
  • Durable metal housing ensures long-lasting reliability for your audio-visual presentation needs.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten VS1818T Specifications

  • Video Input

    Interface: 1x HDMI Type A Female (Black)
    Impedance: 100Ohms
    Max distance: Up to 1.8m / 5.91'

  • Video Output

    Interface: 1x HDMI Type A Female (Black) - Local Output, 8x RJ-45 Female
    Impedance: 100Ohms

  • Video

    Max. data rate: 10.2 Gbps (3.4 Gbps Per Lane)
    Max. pixel clock: 340 MHz
    Compliance: HDMI (3D, Deep Color, 4K), HDCP Compatible, Consumer Electronics Control (CEC)
    Max resolutions: Up to 4K (Depends on connected receiver)
    Max distance: Up to 100m / 328.08' (Depends on connected receiver)

  • Audio Input

    1x HDMI Type A Female (Black)

  • Audio Output

    1x HDMI Type A Female (Black)

  • Control: RS-232

    Connector: 1x DB-9 Female (Black)
    Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
    Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

  • EDID Settings

    EDID Mode: Default / Port 1 / Learn / Auto

  • Power Connector

    1x 3-Prong AC Socket (Black)

  • Power Consumption

    120 VAC, 33W; 230 VAC, 35W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0 - 80% RH, Non-Condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    43.24 x 26.11 x 4.40cm / 17.02 x 10.28 x 1.73"

  • Weight

    2.15kg / 4.74lbs

  • UPC Code

    672792005398

About Aten VS1818T

What sets the VS1818T 8-Port HDBaseT HDMI Over Single Cat 5 Splitter apart is its ability to efficiently distribute high-definition video from a single input source to eight different displays. This durable and high-quality product from Aten, a trusted brand in networking and connectivity solutions, is an ideal choice for any setup that requires HDMI content to be broadcasted to multiple destinations.

This user-friendly device extends displays up to 100 meters, making it a reliable solution for long-distance transmissions. It incorporates advanced HDBaseT extension technology, utilizing just one Cat 5e cable to connect the transmitter and receiver, ensuring a streamlined and cost-effective setup.

The VS1818T splitter is designed to resist signal interference during high-quality video transmissions, thanks to its innovative anti-jamming feature. It supports a wide range of formats, including HDMI (3D, Deep color, 4kx2k), HDCP, Dolby True HD, and DTS HD Master Audio, ensuring compatibility with various devices and content types.

Additionally, this efficient HDMI splitter supports Consumer Electronics Control (CEC) and features a built-in bi-directional RS-232 serial remote port for high-end system control. It supports resolutions up to Ultra HD 4kx2k and 1080p Full HD, and up to 340MHz bandwidth for high-performance video.

The VS1818T splitter also offers an EDID mode selection for reliable EDID data relay, optimizing video resolution for the HDMI source device. It's also rack-mountable, making it a versatile addition to any professional setup.

This HDMI over single Cat 5 splitter is perfect for a wide range of applications, including in-store or tradeshow digital signage, information broadcasts at public locations, sporting events, theater and lecture overview rooms, and classroom and company training facilities. With the VS1818T 8-Port HDBaseT HDMI Over Single Cat 5 Splitter, you can ensure efficient and high-quality HDMI signal distribution, no matter the distance or the number of displays.

Aten VS1818T Features

  • High-performance 8-Port HDBaseT HDMI Over Single Cat 5 Splitter for efficient signal distribution
  • Incorporates advanced HDBaseT extension technology for high-quality, long-distance transmissions
  • Anti-jamming feature to resist signal interference during video transmissions
  • Supports a wide range of formats including HDMI (3D, Deep color, 4kx2k), HDCP, Dolby True HD, and DTS HD Master Audio
  • Features built-in bi-directional RS-232 serial remote port for high-end system control
  • Ideal for various applications like digital signage, public information broadcasts, sporting events, and training facilities

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Distribute HDMI signals with this 8-port splitter over Cat 5, reaching up to 328 feet.
  • Experience superior sound quality and video with HDBaseT technology for optimal performance.
  • This HDMI splitter supports up to 4K resolutions, ensuring crystal-clear visuals for any display.
  • Easily manage your display setup with RS-232 control, offering seamless integration and control.
  • Perfect for presentations, this splitter supports multiple displays with HDMI and HDCP compliance.
  • Durable metal housing ensures long-lasting reliability for your audio-visual presentation needs.

What's in the box:

  • Aten VS1814T 8-Port HDBaseT HDMI Over Single Cat 5 Splitter
  • Power Cord
  • Mounting Kit
  • User Instructions
  • Aten 3 Year Limited Warranty
