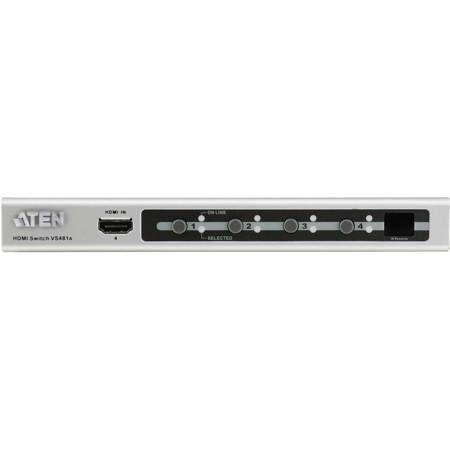

Aten VS481A 4-Port HD Digital HDMI Video and Audio Switch
See all Aten items

Aten VS481A 4-Port HD Digital HDMI Video and Audio Switch

SKU: ANVS481A

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Aten VS481A Specifications

  • Video Input

    Interface: 4x HDMI Type A Female (Black)
    Impedance: 100Ohms
    Max. Distance: 1.8m / 5.91'

  • Video Output

    Interface: 1x HDMI Type A Female (Black)
    Impedance: 100Ohms

  • Video

    Max. Data Rate: 6.75 Gbps (2.25 Gbps Per Lane)
    Max. Pixel Clock: 225MHz
    Compliance: HDCP Compatible, HDMI (3D, Deep Color), Consumer Electronics Control (CEC)
    Max. Resolution: Up to 1080p
    Max. Distance: Up to 15m / 49.21'

  • Audio

    Input: 4x HDMI Type A Female (Black)
    Output: 1x HDMI Type A Female (Black)

  • Control: RS-232

    Connector: 1x DB-9 Female (Black)
    Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

  • Power Connector

    1x DC Jack

  • Power Consumption

    5 VDC, 2.4W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Humidity

    0-80% RH, Non-Condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    20.00 x 8.27 x 2.50cm / 7.87 x 3.26 x 0.98"

  • Weight

    0.47kg / 1.04lbs

  • UPC Code

    672792115868

About Aten VS481A

The VS481A 4 Port HDMI Switch allows you to quickly and easily share your HDMI display device with 4 HDMI input sources. The VS481A allows convenient switching between digital devices such as DVD players, Satellite receivers, Digital Camcorder. The VS481A allows you to select the desired input source via a remote control unit and pushbuttons located on the switch.

Aten VS481A Features

  • Allows up to four HDMI A/V source to be connected to one HDMI display
  • Toggle between A/V sources using remote control or front panel pushbuttons
  • Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200) and WUXGA(1920x1200)
  • HDMI (3D, Deep Color)
  • Supports Dolby True HD and DTS HD Master Audio
  • Up to 60 Hz refresh rate
  • Long distance transmission - up to 20m (24 AWG)
  • Built-in bi-directional RS-232 serial remote port for high-end system control
  • Power On Detection - if one of the HDMI source devices is powered off, the VS481A will automatically switch to the next powered on device
  • Plug-and-play - no software installation required
  • DDC Compatible
  • HDCP 1.1 compliant
  • Signaling rates up to 2.25 Gbits in support of 1080p display
  • All-metal casing
  • LED indication of video source devices
  • Easy and affordable way to add four HDMI inputs to your home theater system

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • DDC Compatible
  • HDCP 1.1 compliant
  • All-metal casing

What's in the box:

  • Aten VS481A 4-Port HD Digital HDMI Video and Audio Switch
  • 1x 5.91' Standard HDMI Cable (1.8m)
  • 1x IR Remote Control Unit
  • 1x Power Adapter
  • User Instructions
  • Aten 3 Year Warranty
