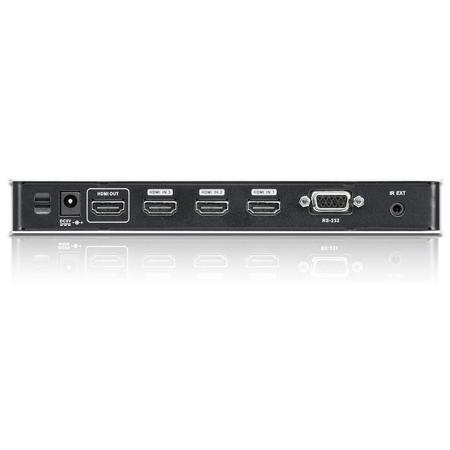

Aten VS481B 4-Port HDMI Switch
See all Aten items

Aten VS481B 4-Port HDMI Switch, 4K Video Resolution Support

SKU: ANVS481B

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Aten VS481B Specifications

  • Video Input

    Interface: 4x HDMI Type A Female (Black)
    Impedance: 100Ohms
    Max. Distance: 1.8m / 5.91

  • Video Output

    Interface: 1x HDMI Type A Female (Black)
    Impedance: 100Ohms
    Max. Distance: 15m / 49.21'

  • Video

    Max. Data Rate: 9 Gbps (3 Gbps Per Lane)
    Max. Pixel Clock: 300MHz
    Compliance: HDCP 2.2 Compatible, HDMI (3D, Deep Color), Consumer Electronics Control (CEC)
    Max. Resolution: Up to 4K at 60Hz (4:2:0)
    Max. Distance: Up to 15m / 49.21'

  • Audio

    Input: 4x HDMI Type A Female (Black)
    Output: 1x HDMI Type A Female (Black)

  • Control: RS-232

    Connector: 1x DB-9 Female (Black)
    Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

  • Control: IR

    1x Mini Stereo Jack Female (Black)

  • Power Connector

    1x DC Jack

  • Power Consumption

    5 VDC, 5W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Humidity

    0-80% RH, Non-Condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    20.00 x 8.27 x 2.50cm / 7.87 x 3.26 x 0.98"

  • Weight

    0.47kg / 1.04lbs

  • UPC Code

    672792005732

About Aten VS481B

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel's LEDs indicate the source device selected for the display at a glance. The VS481B supports Ultra HD 4KX2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection; Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

Aten VS481B Features

  • Allows up to four HDMI A/V sources to be connected to one HDMI display
  • Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
  • Supports 340MHz bandwidth for ultrahigh 4kx2k video
  • HDMI (3D, Deep Color, 4kx2k); HDCP compatible
  • Auto switching modes for auto port selection
  • Long distance transmission - up to 15 m (24 AWG)
  • Consumer Electronics Control (CEC) support
  • Supports Dolby True HD and DTS HD Master Audio
  • Built-in bi-directional RS-232 serial remote port for high-end system control
  • Instant switching between HDMI input sources
  • Supports IR extension using a IR extension cable
  • LED indication of video source devices

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Supports 340MHz bandwidth for ultrahigh 4kx2k video
  • HDMI (3D, Deep Color, 4kx2k); HDCP compatible
  • Auto switching modes for auto port selection
  • Long distance transmission - up to 15 m (24 AWG)
  • Consumer Electronics Control (CEC) support
  • Supports Dolby True HD and DTS HD Master Audio

What's in the box:

  • Aten VS481B 4-Port HDMI Switch
  • 1x HDMI Cable
  • 1x IR Remote Control
  • 1x Power Adapter
  • User Instructions
  • Aten 3 Year Warranty
