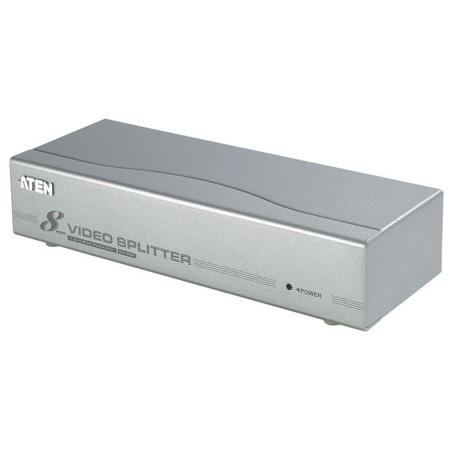

Aten VS98A 300MHz 8 Port VGA Video Splitter
Aten VS98A: Picture 1 thumbnail
Aten VS98A: Picture 2 thumbnail
See all Aten items

Aten VS98A 300MHz 8 Port VGA Video Splitter, Up to 1920x1440 Video Resolution Support

SKU: ANVS98A MFR: VS98A
Be the first to review this itemAsk a Question
$92.00
Earn VIP Reward Points

Key Features

  • Share VGA video to 8 displays with this splitter, ideal for presentations & info sharing.
  • Achieve up to 1920x1440 video resolution for clear, crisp images using this video splitter.
  • Extend your VGA signal up to 30m, perfect for classrooms, trade shows, and digital signage.
  • This 8-port VGA splitter supports 350MHz bandwidth, ensuring high-quality video output.
  • Durable metal housing ensures reliable performance of this video splitter for long-term use.
  • Easy to install Aten VGA splitter; simply connect and enjoy seamless video distribution today!
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$13.99

3 Year

$20.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Aten VS98A Specifications

  • Video Input

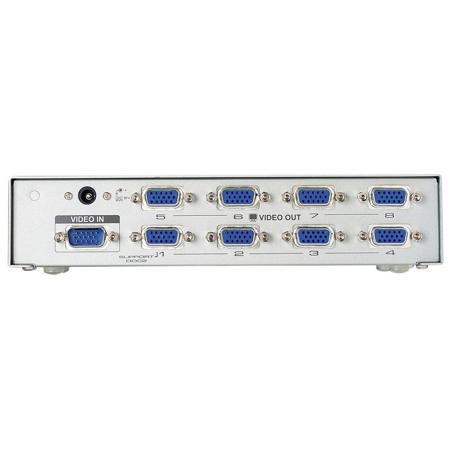

    Interface: 1x HDB-15 Female (Blue)
    Impedance: 75Ohms
    Max. Distance: 1.8m / 5.91'

  • Video Output

    Interface: 8x HDB-15 Female (Blue)
    Impedance: 75Ohms

  • Video

    Max Bandwidth: 350MHz
    Max. Resolution: Up to 1920 x 1440
    Max. Distance: Up to 30m / 98.42'

  • Power Connector

    1x DC Jack

  • Power Consumption

    9 VDC, 3.94W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Humidity

    0-80% RH, Non-Condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    20.00 x 7.51 x 4.40cm / 7.87 x 2.96 x 1.73"

  • Weight

    0.69kg / 1.52lbs

  • UPC Code

    672792000140

About Aten VS98A

Bring your visual presentations to life with the VS98A 300MHz 8 Port VGA Video Splitter, designed to support high-resolution video up to 1920x1440. This advanced video splitter not only replicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to eight separate outputs, but it also amplifies the video signal to cover a distance of up to 65 meters.

With the ability to cascade and support up to 512 displays, this VGA video splitter is a powerful tool for broadcasting high-quality video information to large audiences. Whether you're aiming to enhance public information displays, monitor work environments from secure locations, or provide superior video quality for corporate or educational training, the VS98A 300MHz 8 Port VGA Video Splitter delivers exceptional performance.

Experience the convenience of its high bandwidth capacity of up to 300 MHz, ensuring smooth and uninterrupted video transmission. This VGA video splitter is more than just a device; it's a solution for all your video broadcasting needs.

Aten VS98A Features

  • One video input to 8 video outputs
  • Cascadable to 3 levels - provides up to 512 video signals
  • Supports 300 MHz bandwidth
  • Long-distance transmission - up to 65 m
  • Superior video quality - 1920 x 1440 at 60Hz
  • DDC, DDC2, DDC2B Compatible (Port 1 only)
  • Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Share VGA video to 8 displays with this splitter, ideal for presentations & info sharing.
  • Achieve up to 1920x1440 video resolution for clear, crisp images using this video splitter.
  • Extend your VGA signal up to 30m, perfect for classrooms, trade shows, and digital signage.
  • This 8-port VGA splitter supports 350MHz bandwidth, ensuring high-quality video output.
  • Durable metal housing ensures reliable performance of this video splitter for long-term use.
  • Easy to install Aten VGA splitter; simply connect and enjoy seamless video distribution today!

What's in the box:

  • Aten VS98A 300MHz 8 Port VGA Video Splitter
  • 1x Power Adapter
  • User Instructions
  • Aten 3 Year Limited Warranty
