Antelope Audio Zen Tour Portable Thunderbolt/USB Audio Interface
Antelope Audio presents the new Zen Tour portable interface
Antelope Audio Portable Audio Interface: Picture 1 thumbnail
See all Antelope Audio items

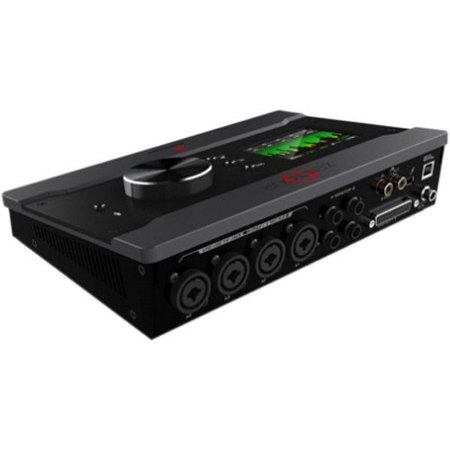

Antelope Audio Zen Tour Portable Thunderbolt / USB Audio Interface

SKU: ANZENT

This item is no longer available.

Recommended Alternatives

Antelope Audio AMARI: Picture 1 regular
Antelope Audio AMARI Mastering USB AD/DA Converter and Headphone Amplifier
$3,395.00
Antelope Audio Galaxy 32 Synergy Core: Picture 1 regular
Antelope Audio Galaxy 32 Synergy Core 32-Channel Audio Interface with Dante, HDX
$5,995.00
Antelope Audio Galaxy 64 Synergy Core: Picture 1 regular
Antelope Galaxy 64 Synergy Core 64-Ch AD/DA Dante/HDX/Thunderbolt Interface
$9,995.00
Antelope Audio Orion32 + Gen 3: Picture 1 regular
Antelope Audio Orion32 + Gen 3 64-Ch Thunderbolt and 32-Ch USB AD/DA Converter
$3,295.00
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Antelope Audio Portable Audio Interface Specifications

  • Analog Inputs

    4 x Mic / Line Instrument on XLR combos on the back
    4 x Hiz / Line on TRS on the front

  • Digital Inputs

    2 x ADAT (up to 16CH)
    1 x S/PDIF

  • Analog Outputs

    8 x Lines on 1 x DB25 (8 channels)
    2 x Stereo Monitor out on TRS (4 channels, only 1 active at a time)
    2 x Stereo Headphone out on TRS (4 channels)
    2 x ReAmp outs on TRS (2 channels)

  • Digital Outputs

    2 x ADAT (up to 16CH)
    1 x S/PDIF
    USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz 24 channels I/O

  • Thunderbolt

    1 x Thunderbolt, 32 channels

  • USB I/O

    1 x USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz, 32 channels I/O, Type B

  • D/A Monitor Converter

    Dynamic Range: 129 dB
    THD + N: -108 dB

  • D/A Converter

    Dynamic Range: 120 dB
    THD + N: -107dB

  • A/D Converter

    Dynamic Range: 120 dB
    THD + N: -110 dB

  • Sample Rates

    32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

  • Mic Pre

    Gain: 0 65 dB
    THD + N: -108 dB

  • Clocking System

    4th Generation Acoustically Focused Clocking
    64-bit DDS
    Oven Controlled Crystal Oscillator

  • Clocking Stability

    <+/-0.02 ppm, oven controlled at 64.5 Degree C/ 148.1 Degree F

  • Clocking Aging

    < 1 ppm per year

  • Clocking Calibration

    <+/-0.001 ppm

  • Power Supply

    DC Universal Input 18V

  • Power Consumption

    25 Watts Max

  • System Requirements: Windows

    OS: Windows 7/8/8/1/10
    Disk Space: Minimum 512 MB avaialable disk space
    USB: 1 x USB 2.0 Port
    Required USB bandwidth: 80-90%
    CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
    Memory (RAM): 4 GB Minimum (8 GB or more Recommended)

  • System Requirements: MAC

    OS X: 10.9/10.10/10.11 (El Capitan 10.11.5 Recommended)
    Disk Space: Minimum 512 MB avaialable disk space
    USB: 1 x USB 2.0/3.0 Port
    Required USB bandwidth: 80-90%
    Memory (RAM): 4 GB Minimum (8 GB or more Recommended)
    CPU: Intel Core 2 Duo (Minimum) Intel Core i3 or higher (Recommended)

  • UPC Code

    853744004373

About Antelope Audio Portable Audio Interface

With Zen Tour Antelope have pushed the envelope once again. Antelope is offering not just a portable Thunderbolt & USB audio interface, but a pro piece, easily covering the needs of a small band

Zen Tour comes with 4 switchable Mic/Line inputs and 4 more HiZ/Line ins. Two reamp outs and a Talkback button on the front panel put it in the spotlight of portable interfaces.

Antelope Audio Portable Audio Interface Features

  • 4 switchable Mic/Line
  • 4 HiZ/Line ins
  • 8 analog outs
  • digital I/O on ADAT & S/PDIF
  • Two independent headphone amps
  • Two separate pairs of monitor outs
  • ZERO LATENCY: Guitar amp modeling and effects processing with virtually 0 latency
  • NETWORKING CONTROL: Advanced Remote Apps Control Zen Tour from multiple computers or via mobile and desktop apps
  • THUNDERBOLT & USB: 32 channels via Thunderbolt and 24 on USB for zero-latency audio streaming
  • VINTAGE GUITAR FX: FPGA based hardware models of vintage gear and equalizers, at no cost
  • STUNNING AD/DA: 24-bit, 192 kHz audio and Antelope s signature flawless conversion

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 4 switchable Mic/Line
  • 4 HiZ/Line ins
  • 8 analog outs
  • digital I/O on ADAT & S/PDIF
  • Two independent headphone amps
  • Two separate pairs of monitor outs

What's in the box:

  • Zen Tour Portable Thunderbolt and USB AD/DA Interface
  • Wall Wart Power Supply Unit
  • Cleaning Cloth
  • 1 USB cable
  • Owner's Manual
  • Warranty Card
