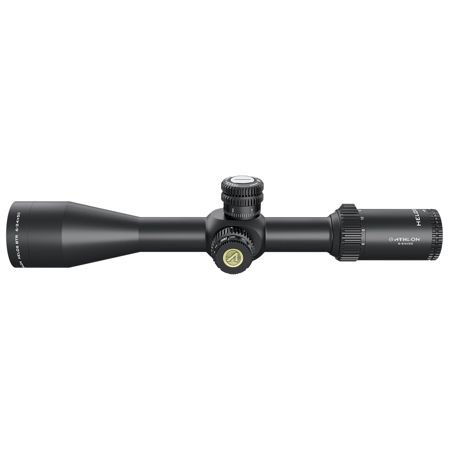

Athlon Optics 6-24x50 Helos BTR Series Riflescope, Matte Black with Illuminated First Focal Plane MIL APMR Reticle, Side Parallax Focus, 30mm Tube

SKU: AO214107

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Kelly J : price

Reviews about this item

Review Summary

Athlon Optics Helos BTR Specifications

Performance

Performance

Jump to...
  • Magnification

    6 to 24x

  • Objective Lens Diameter

    50mm

  • Field of View

    6x: 16.7' @ 100 yd (5.5m @ 100m)
    24x: 4.5' @ 100 yd (1.5m @ 100m)

  • Exit Pupil Diameter

    6x: 8.3mm
    24x: 2.1mm

  • Eye Relief

    3.3" (83mm)

Reticle

Jump to...
  • Reticle Type

    APMR Reticle (First Focal Plane)

Features

Jump to...
  • Impact Point Correction

    1/10 MRAD per Click

  • Windage Adjustment

    18 MRAD

  • Elevation Adjustment

    18 MRAD

Environmental

Jump to...
  • Parallax Correction

    Yes, 10 yd (9.1m to Infinity)

  • Water Resistance

    Waterproof

  • Fogproof

    Yes, Argon Filled

General

Jump to...
  • Maintube Diameter

    1.18" (30mm)

  • Battery

    1x CR2032

  • Material

    Aluminum

  • Dimensions

    Length: 14.1" (35.8cm)

  • Weight

    29.8 oz (844.8g)

  • UPC Code

    813869021112

About Athlon Optics Helos BTR

When you hear first focal plane rifle scope some think that might possibly that's the best rifle scopes there are. With locking turrets, crisp turrets, advanced fully multi-coated options built from a one piece tube made from aircraft-grade 6061-T6 aluminum you expect to come with a high price tag. This is exactly why we introduced the Helos BTR family. Feature rich but won't break the bank.

APMR first focal plane illuminated MIL reticle
Designed for precision long and mid-distance shooting with illuminated center cross and 0.5 mil hash mark increments , APMR FFP IR MIL reticle can help you quickly lock in your target and set holdover positions and leads for a moving target. The illuminated 18 mil span cross lines with 0.5 mil hash marks and 0.2 mil hash marks from 7 mil to 9 mil on three directions provide finer details that help a shooter quickly locate the target and find a holdover position within higher level of precision and confidence.

Features

First Focal Plane Reticle
First focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out. These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.

Locking Turrets
Locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to next during your competition or putting them away for your next hunting trip.

Illuminated Reticle
The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.

Etched Glass Reticle
Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil

Fully Multicoated
Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses

6061 T6 Aluminum
The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.

Heat Treated One Piece Tube Construction
Heat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product

Waterproof
Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater

Fog proof
Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside

Shockproof
Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.

Argon Purged
Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability .

Athlon Optics Helos BTR Features

  • First Focal Plane Reticle
  • Locking Turrets
  • Illuminated Reticle
  • Etched Glass Reticle
  • Fully Multicoated
  • 6061 T6 Aluminum
  • Heat Treated One Piece Tube Construction
  • Waterproof
  • Fog proof
  • Shockproof
  • Argon Purged

Key Features

  • First Focal Plane Reticle
  • Locking Turrets
  • Illuminated Reticle
  • Etched Glass Reticle
  • Fully Multicoated
  • 6061 T6 Aluminum

What's in the box:

  • 6-24x50 Helos BTR Riflescope
  • CR2032 Battery
  • 2x Flip-Up Lens Covers
  • Lens Cloth
  • Athlon Optics Lifetime Limited Warranty
