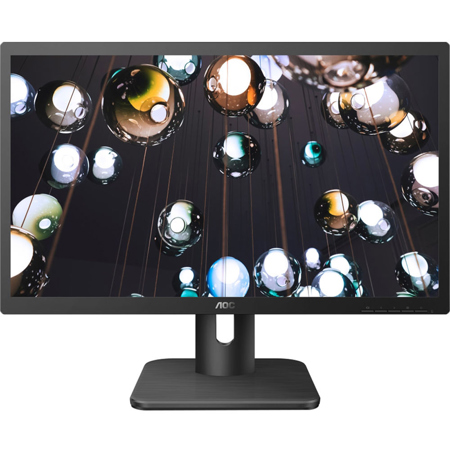

AOC 20E1H 19.5" 16:9 HD+ TN WLED Monitor, Black

SKU: AOC20E1H

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

AOC 20E1H Specifications

Display

Display

Jump to...
  • Screen Size

    19.5" (49.53cm)

  • Flat / Curved

    Flat

  • Display Hardness

    3H

  • Pixel Pitch

    0.2712

  • Panel Resolution

    1600 x 900

  • Resolution Name

    HD+

  • Aspect Ratio

    16:9

  • Panel Type

    TN

  • Brightness In Nits

    250

  • Backlight Type

    WLED

  • Refresh Rate

    60Hz

  • Response Time Gtg

    5 ms

  • Static Contrast Ratio

    1000:1

  • Dynamic Contrast Ratio

    20M:1

  • Viewing Angle (CR10)

    170/160

  • Display Colors

    16.7 Million

Video Features

Jump to...
  • Digital Signal Frequency

    30 -83kHz (H) 50 -76 Hz (V)

  • Color Space (SRGB) CIE 1931

    99%

  • Color Space (Adobe RGB) Cie 1931

    73%

  • Flicker-Free

    Yes

Cabinet

Jump to...
  • Removable Stand

    Yes

  • Vesa Wallmount

    100x100mm

Sustainability

Jump to...
  • TCO

    7

  • WEEE

    Yes

  • ROHS Compliant

    Yes

Power Consumption

Jump to...
  • Power Supply

    Internal

  • Power Source

    100 - 240v 50/60hz

  • Power Consumption On

    14 Watts (Energystar Test Method)

  • Power Consumption Standby

    0.5 Watts

Connectivity

Jump to...
  • HDMI

    HDMI 1.4 x 1

  • D-Sub (VGA)

    Yes

  • Audio Input

    Line In

  • Audio Output

    Headphone Out (3.5mm)

Regulatory Compliance

Jump to...
  • Microsoft WHQL

    Yes

General

Jump to...
  • OSD Languages

    English, French, German, Czech, Russian, Kroatian, Chinese (Traditional), Chinese (Simplified), Spanish, Portuguese, Italian, Dutch, Swedish, Finnish, Polish, Japanese, Ukranian, Turkish, Korean

Physical

Jump to...
  • Color

    Black

  • Dimensions (H x W x D)

    15.5 x 19.85 x 7.85" (393.7 x 504.4 x 199.4mm) (Including Base)

  • Weight

    11.41 lbs (5.18kg)

  • UPC Code

    685417719587

About AOC 20E1H

Innovations to elevate your business
The 20E1H boasts a 19.5" TN panel, HD+ resolution with HDMI and legacy DVI and VGA inputs (cables included) and built-in speakers. Stand offers tilting and cable management. Certified green.

Multimedia-Ready with HDMI Input
HDMI (High-Definition Multimedia Interface) is the digital video and sound standard for connecting the latest consumer electronics like Blu-ray players and game consoles.

Low Blue Mode
AOC Low Blue Mode filters harmful short-wave blue light, with 4 levels that suit different viewing situations

Flicker Free Backlight Technology
Most LED monitors use PWM (pulse width modulation) to control brightness; the pulsing creates flicker that may cause discomfort, headaches and eye strain, especially in low-light environments. Flicker Free technology uses a smooth DC (direct current) backlight system.

Clear Vision
The image performance engine can upscale Standard Definition (SD) sources to High Definition (HD) for sharper, more vivid viewing.

Screen+
The bundled Screen+ software splits the PC workspace into four self-contained panes to group application windows for easier viewing. Screen+ also supports multiple monitors.

i-Menu
Included PC software allows the user to change the OSD settings using their mouse.

e-Saver
Software enables the user to set a low power configuration of the monitor when the PC is in screen saving, PC off, and user absence. User can choose the time to turn the monitor off, to save power consumption.

AOC 20E1H Features

  • HDMI & VGA input
  • Cable Management
  • VESA Mount
  • Low Blue Mode & Flicker Free for eye care

Key Features

  • HDMI & VGA input
  • Cable Management
  • VESA Mount
  • Low Blue Mode & Flicker Free for eye care

What's in the box:

  • AOC 20E1H 19.5" 16:9 HD+ TN WLED Monitor (Black)
  • D-SUB VGA Cable
  • Power Cable C13
  • AOC 3 Year Limited Warranty
