Aputure NOVA II 2x1 1000W BLAIR-CG LED Light Panel

SKU: AP0400040K MFR: AP0400040K
Earn VIP Reward Points

Key Features

  • 1000W output LED panel light fixture
  • BLAIR-CG chipset: Blue, Lime, Amber, Indigo, Red, Cyan, Green diodes
  • Advanced white point control with green/magenta color correction
  • CCT range of 1,800K-20,000K
  • Bare bulb output: 24,700lux @3m 5600K
  • Included flat diffusion panel: 5,480lux @3m 5600K
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Aputure NOVA II Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    Light Panel

  • Photometrics

    Unmodified:
    35 Deg. at 1800K: 9824 fc / 105,750 Lux at 3.3'
    35 Deg. at 2500K: 17,273 fc / 185,940 Lux at 3.3'
    35 Deg. at 3200K: 20,743 fc / 223,290 Lux at 3.3'
    35 Deg. at 4300K: 21,262 fc / 228,870 Lux at 3.3'
    35 Deg. at 5600K: 20,350 fc / 219,060 Lux at 3.3'
    35 Deg. at 6500K: 19,815 fc / 213,300 Lux at 3.3'
    35 Deg. at 10000K: 16,855 fc / 181,440 Lux at 3.3'

  • Color Accuracy Standard

    CRI: 95
    TLCI: 95
    TM-30 Rf: 95
    TM-30 Rg: 100
    SSI 89 at 3200K
    SSI 86 at 5600K
    CQS: 96

  • Color Temperature

    RGB, Daylight, Tungsten

  • Color Temperature Range

    1800 to 20,000K

  • Display

    Yes

  • Beam Angle

    35 Degree

  • Built-In Flash

    No

  • Cooling System

    Fan

  • Dimming

    Built-In Dimmer - 0.1 to 100%

  • Water Resistance/IP Rating

    Dust/Weather/Water-Resistant (IP65)

Connectivity

Jump to...
  • Remote Control Type

    Bluetooth
    Art-Net
    Wireless CRMX

  • Mobile App Compatible

    Yes: Android & iOS
    App Name: Sidus Link

Battery

Jump to...
  • Battery Connection

    No

  • Power Source

    AC Power (Cable Included)

  • Power Consumption

    1000 W
    1250 W (Maximum)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

Mounting

Jump to...
  • Umbrella Mount

    No

  • Accessory Mount

    Proprietary

Physical Details

Jump to...
  • Panel Size

    15 x 27"

  • Dimensions

    27.2 x 15.3 x 5.4" (69.1 x 38.9 x 13.7cm) (Fixture without Yoke)
    32.7 x 22.3 x 6.1" (83.1 x 56.6 x 15.5cm) (Fixture with Yoke)

  • Weight

    35.83 lbs (16.25kg) (Fixture without Yoke)
    41 lbs (18.6kg) (Fixture with Yoke)

  • UPC Code

    00850065294667

About Aputure NOVA II

Incredibly Accurate and Natural White Light
The NOVA II 2x1 has a wide range of tunable white light with the best SSI performance to emulate tungsten, daylight, and everything in between. The BLAIR-CG light engine offers a tunable white range from 1,800-20,000K with full 100% MITC +/- Green adjustment. The Indigo emitter activates natural fluorescence for lifelike colors, and a new Deep Red emitter improves skin tone reproduction.

Colors Never Before Achieved in a Panel
The BLAIR-CG light engine in the NOVA II 2x1 covers the greatest range of saturated colors of any panel light. The expanded BLAIR-CG light engine covers more than 90% of the Rec.2020 color space. There are four blues and two reds, including Deep Red, for increased gamut and saturation. Using x,y and HSIC+ modes, dial in precise colors to match products, create backdrops, and even dial in perfect greenscreen or bluescreen keys to match your camera's sensor.

The Brightest Light, Direct or Diffused
The NOVA II 2x1 delivers a direct 35 Degree beam, which remains bright when diffused, providing increased versatility. The secret to this performance is a unique three-part "focus-then-blend" optical formula. First, focusing TIR lenses are placed over LED emitter clusters. Then, these clusters are kept small and packed at a high density on the panel for increased output. Lastly, these lensed emitter clusters are arranged in a complex neutralizing pattern to produce bright, even light with no visible color fringing on subjects.

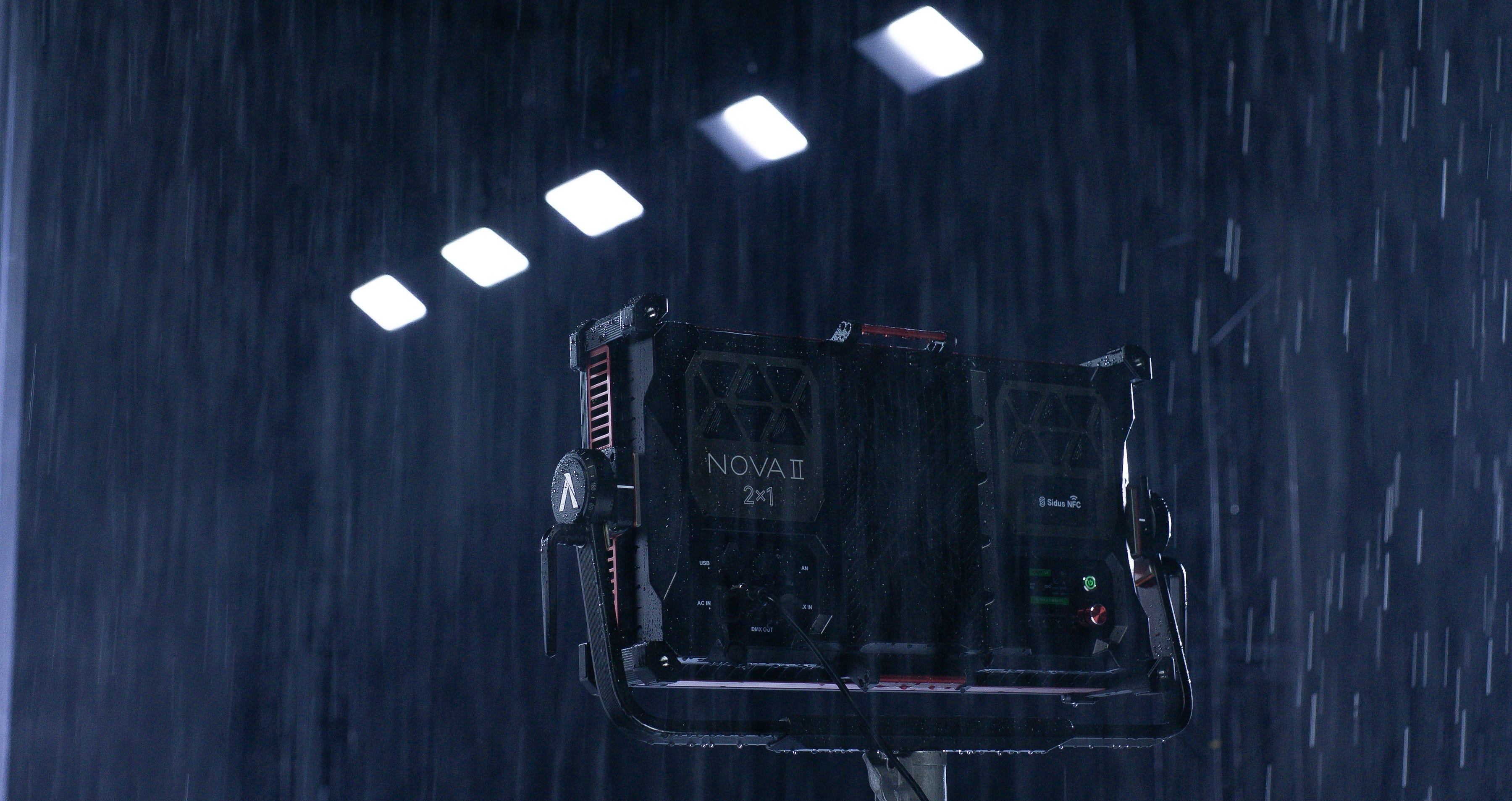

Weatherproof, Quiet, Lightweight: Pick All Three
The advanced structural design of the NOVA II 2x1 allows it to achieve three goals normally at odds: low noise, low weight, and IP65 weather protection. The NOVA II 2x1 panel is IP65 weather protected, has fan noise below 40dB in high speed mode, and weighs 18kg including the yoke.

Aputure NOVA II Features

  • 1000W output LED panel light fixture
  • BLAIR-CG chipset: Blue, Lime, Amber, Indigo, Red, Cyan, Green diodes
  • Advanced white point control with green/magenta color correction (+/-G 100% Full ASC MITC Range)
  • CCT range of 1,800K-20,000K
  • Bare bulb output: 24,700lux @3m 5600K
  • Included flat diffusion panel: 5,480lux @3m 5600K
  • Ultra-high color accuracy: CRI>=95, TLCI>=95, CQS [CIE D5600]>=96, SSI [P3200]: 89, SSI [CIE D5600]: 86, TM-30 Rf (avg) 95, TM-30 Rg (avg) 100

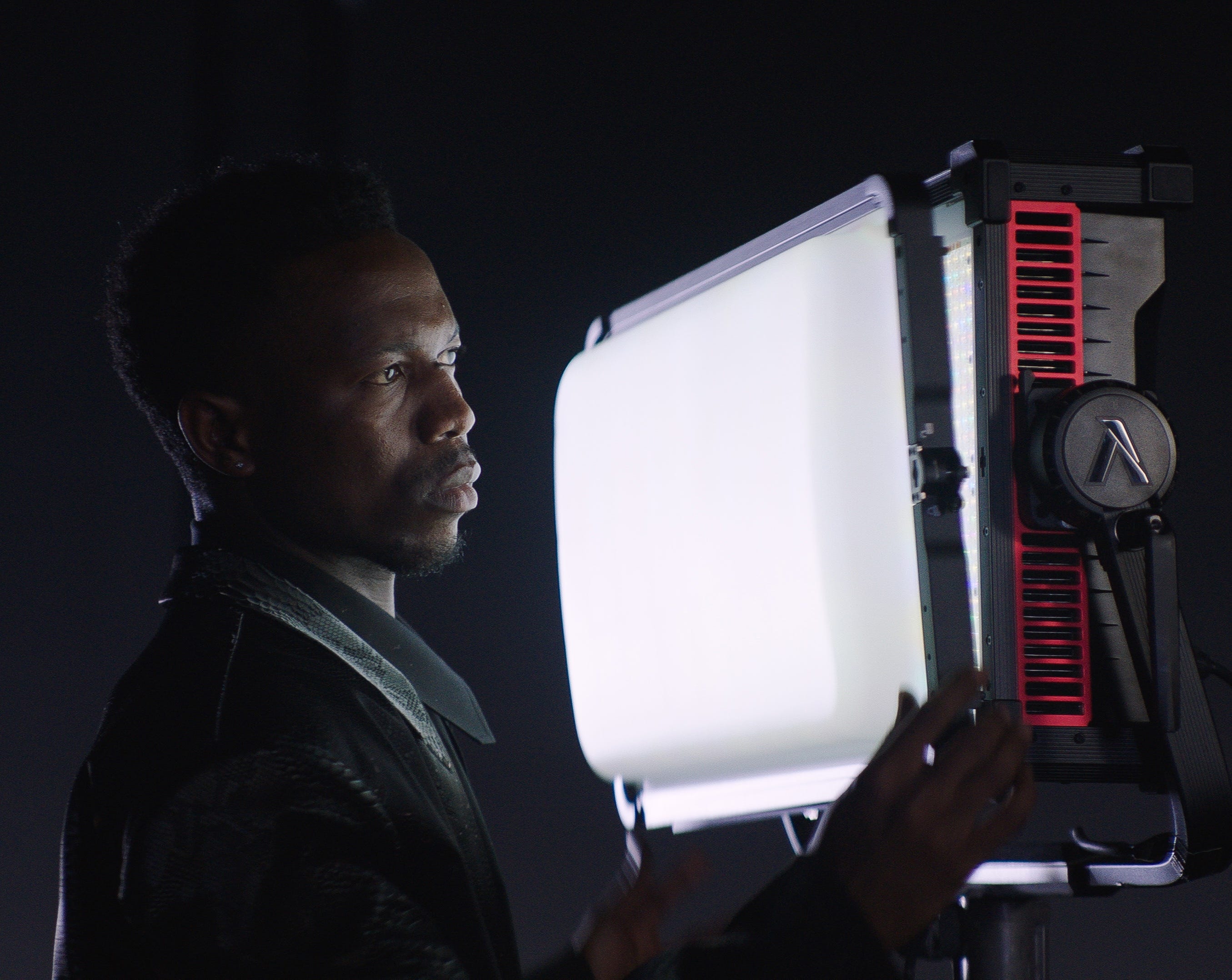

  • New direct front-mounting accessory ecosystem

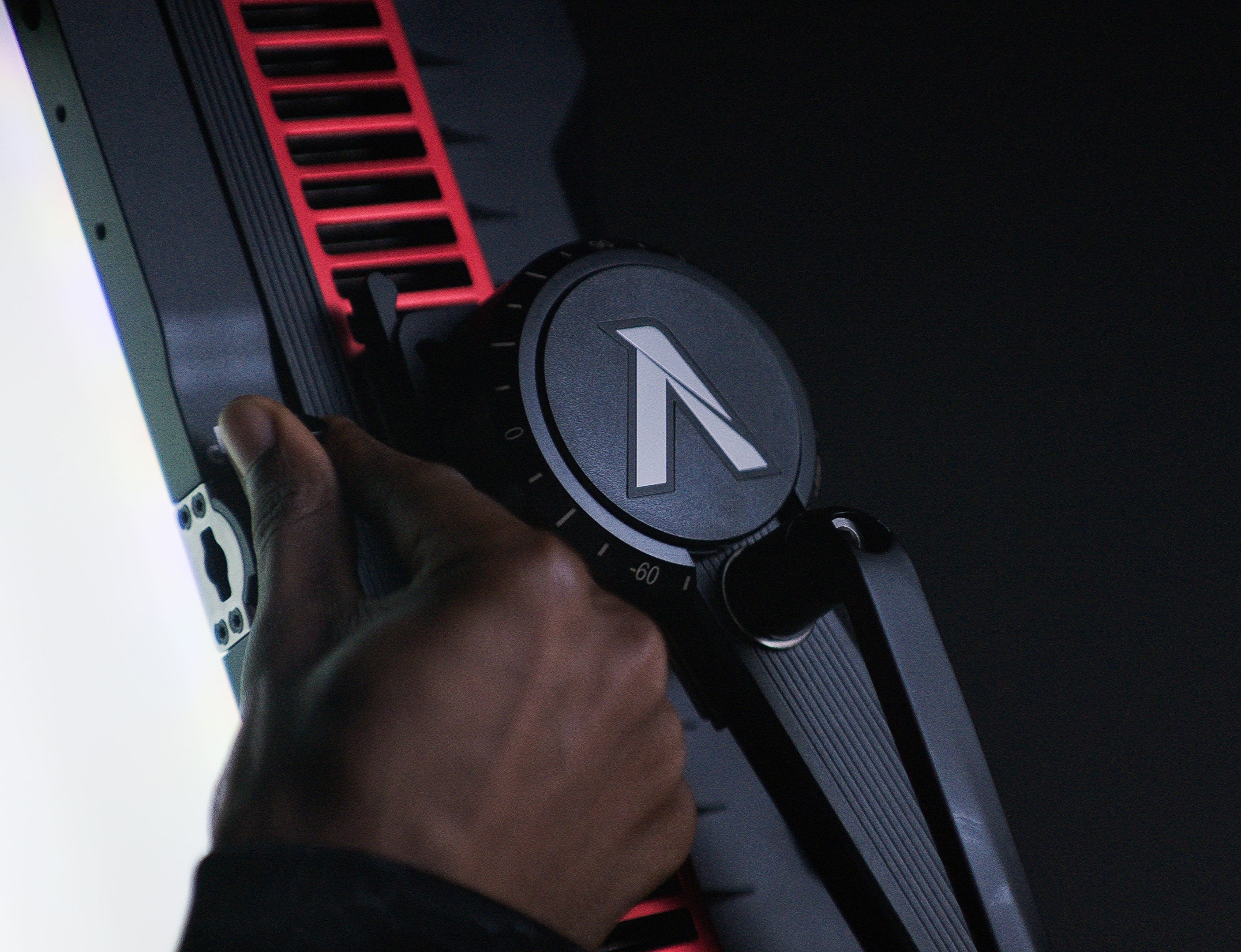

  • Features removable yoke for rigging flexibility
  • High output to weight ratio: lamp head weight with yoke: 18.6kg / 41lbs
  • IP65 weather resistance

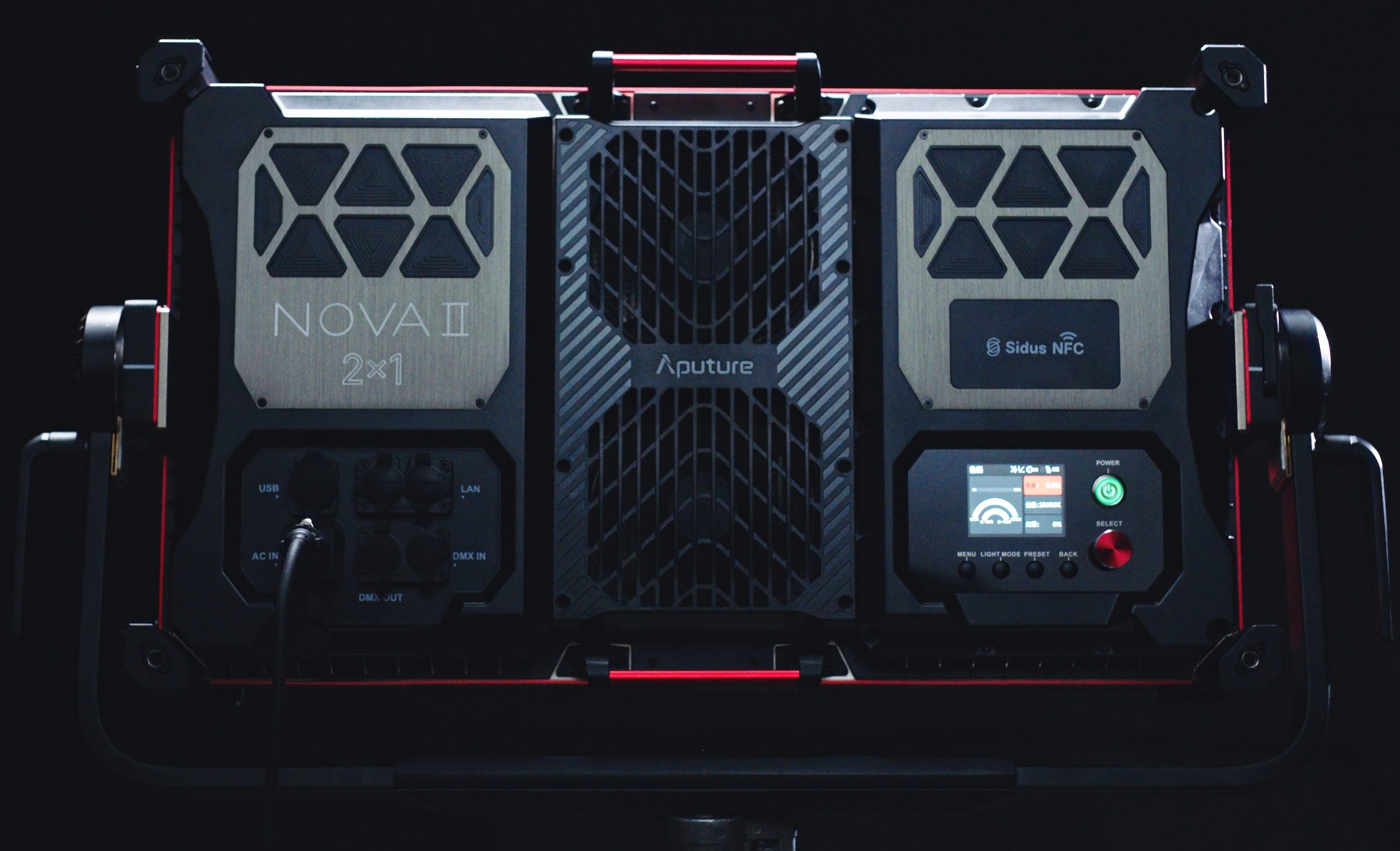

  • Pro control protocols: Sidus Link, Sidus Link Pro, DMX, CRMX, ArtNet/sACN
  • 16-bit 5-Pin DMX512 in & out ports
  • 2x Locking Ethernet Ports
  • Smooth 0.1-100% stepless dimming

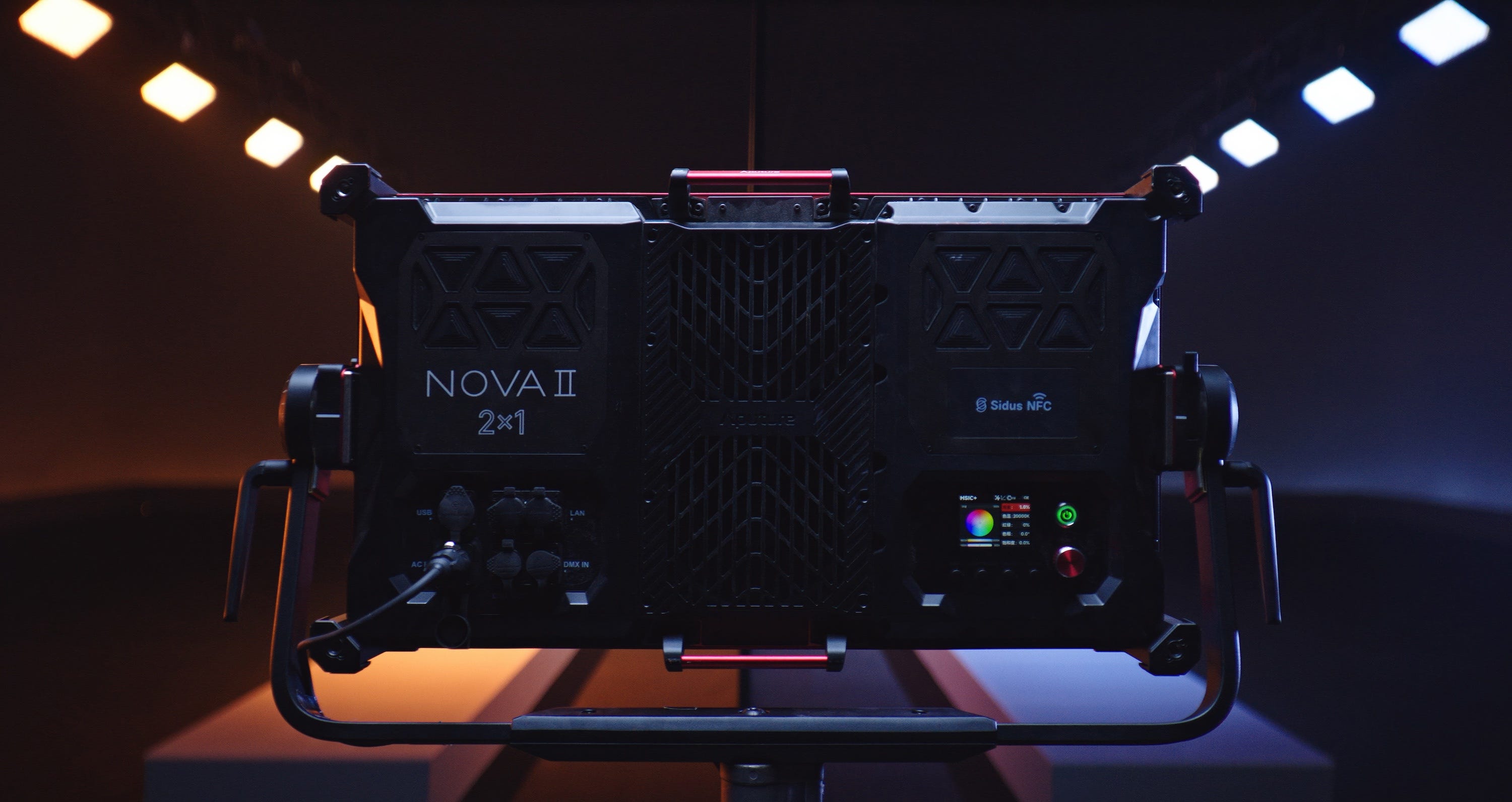

  • Dual output modes: Max and Constant
  • Lead-follow and studio mode
  • 4 fan modes: Smart, High, Medium, Silent (DMX controllable)
  • 4 dimming curves: Linear, Exponential, Logarithmic, S-shaped
  • 15 built-in light effects
  • 10 savable presets
  • Supports batch firmware upgrades of lamps through Sidus Link Pro/Sidus Link, USB drive, and DMX
  • High-resolution rear color display panel clearly communicates fixture status and settings

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • 1000W output LED panel light fixture
  • BLAIR-CG chipset: Blue, Lime, Amber, Indigo, Red, Cyan, Green diodes
  • Advanced white point control with green/magenta color correction
  • CCT range of 1,800K-20,000K
  • Bare bulb output: 24,700lux @3m 5600K
  • Included flat diffusion panel: 5,480lux @3m 5600K

What's in the box:

  • Aputure NOVA II 2x1 1000W BLAIR-CG LED Light Panel
  • Removable Yoke with Junior Pin
  • NOVA II 2x1 Flat Diffuser
  • AC Power Cable (6m)
  • Aputure 1 Year Limited Warranty
