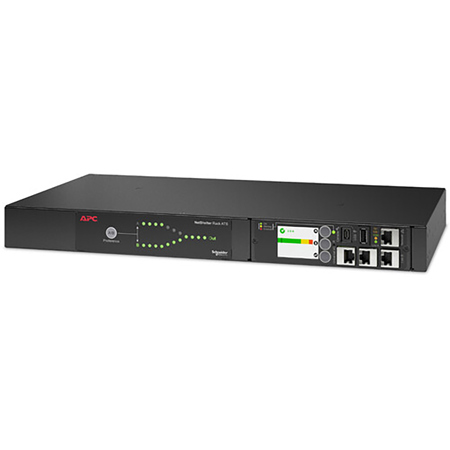

American Power Conversion (APC) AP4433A NetShelter Rack Automatic Transfer Switch, 1U, 12A, C14 IN

SKU: AP4433A MFR: AP4433A
Earn VIP Reward Points

Key Features

  • Ensure seamless power with this APC automatic transfer switch for rack-mounted equipment.
  • Get reliable power redundancy with dual C14 inlets on this NetShelter rack transfer switch.
  • Protect sensitive equipment; this 12A APC switch has overload & short circuit protection.
  • Optimize rack space with this 1U automatic transfer switch, perfect for tight setups.
  • Distribute power efficiently using 12 C13 outlets on this APC power distribution panel.
  • Quick power transfer (10-12ms) keeps your systems running with this APC transfer switch.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$169.00

2 Year

$289.00

3 Year

$429.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

American Power Conversion (APC) AP4433A Specifications

Electrical

Electrical

Jump to...
  • Nominal input voltage

    208 VAC

  • Acceptable input voltage

    +/-10% of nominal

  • Input frequency

    50/60 Hz

  • Input connectors

    Two (2) C14 inlets

  • Output connectors

    Twelve (12) C13 outlets

  • Maximum output current (Outlet)

    12 A (ampacity corrected)

  • Maximum output/input current

    12 A (ampacity corrected)

  • Overload protection

    External (recommended): 16 A facility provided

  • Transfer time

    10 ms maximum (high sensitivity, 50-60 Hz)
    12 ms maximum (low sensitivity, 50-60 Hz)

  • Short circuit current rating

    10 kA

Environmental

Jump to...
  • Maximum elevation (above MSL)

    Operating: 0 to 10,000' (0 to 3 000m)
    Storage: 0 to 50,000' (0 to 15 000m)

  • Temperature

    Operating: 23 to 113 Degree F (-5 to 45 Degree C)
    Storage: -13 to 149 Degree F (-25 to 65 Degree C)

  • Humidity

    Operating: 5 to 95%, non-condensing
    Storage: 5 to 95%, non-condensing

Compliance

Jump to...
  • EMC

    FCC Part 15/ICES-003

  • Safety

    cULus/PSE - UL/EN/IEC 62368-1

Physical

Jump to...
  • Dimensions

    1.72 x 17 x 9.3" (43.7 x 431.8 x 236.2mm)

  • Weight

    8.25 lbs (3.74kg)

  • UPC Code

    731304432500

About American Power Conversion (APC) AP4433A

Bring enhanced reliability and control to your IT infrastructure with the APC NetShelter Rack Automatic Transfer Switch (ATS) AP4433A. As part of the fifth-generation series, this high-availability switch is designed to meet the demands of modern IT environments, from cloud to edge computing. The APC NetShelter Rack ATS AP4433A ensures uninterrupted power supply to single-corded equipment loads within your IT rack, offering industry-leading reliability, agility, and manageability.

This single-phase 1U rack ATS supports a 12A rated current and operates at a 208V rated voltage, with a robust load capacity of 3300VA. It features dual IEC C14 inlets and twelve IEC C13 outlet sockets, providing ample connectivity for your equipment. The AP4433A has been upgraded with the APC NMC3, incorporating advanced features such as network port sharing, environmental monitoring, and enhanced security measures.

Users can easily access and configure the Rack ATS through a secure Web UI, SNMP, and CLI, ensuring seamless integration and management. Additionally, it is fully compatible with EcoStruxure IT, allowing for comprehensive monitoring and management of your IT infrastructure. Enhance your data center's resilience and efficiency with the APC NetShelter Rack ATS AP4433A, a reliable solution for maintaining continuous power to critical equipment.

American Power Conversion (APC) AP4433A Features

  • Minimized downtime disruption with Field-replaceable NMC
  • Monitor temperature and humidity efficiently
  • Dual input power cords to enhance uptime for critical loads
  • Connect and manage up to 32 Rack ATSs from one IP address
  • Seamless switching with transfer time 10ms

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Ensure seamless power with this APC automatic transfer switch for rack-mounted equipment.
  • Get reliable power redundancy with dual C14 inlets on this NetShelter rack transfer switch.
  • Protect sensitive equipment; this 12A APC switch has overload & short circuit protection.
  • Optimize rack space with this 1U automatic transfer switch, perfect for tight setups.
  • Distribute power efficiently using 12 C13 outlets on this APC power distribution panel.
  • Quick power transfer (10-12ms) keeps your systems running with this APC transfer switch.

What's in the box:

  • American Power Conversion (APC) AP4433A NetShelter Rack Automatic Transfer Switch
  • Rack Mounting Brackets
  • Mounting Hardware
  • American Power Conversion (APC) 2 Year Limited Warranty
