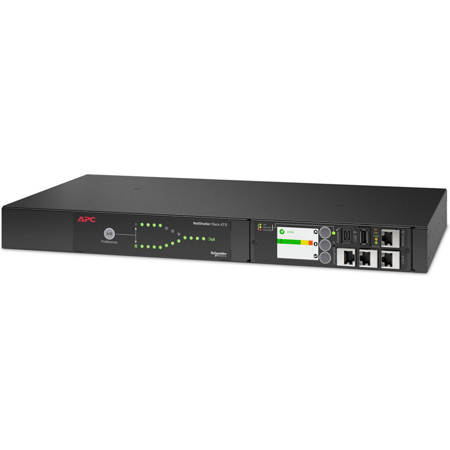

American Power Conversion (APC) AP4450A NetShelter Rack Automatic Transfer Switch, 1U, 15A, 5-15 IN

SKU: AP4450A MFR: AP4450A
Earn VIP Reward Points

Key Features

  • Ensure uptime with this APC NetShelter automatic transfer switch for rack equipment.
  • Get reliable power redundancy with 10 NEMA 5-15R outlets on this 1U power distribution panel.
  • Safeguard critical devices; this transfer switch offers a rapid 10ms power transfer time.
  • This automatic transfer switch supports 100/120 VAC input for versatile power solutions.
  • Maximize rack space; the 1U design fits seamlessly into your existing server rack setup.
  • Enjoy peace of mind with surge protection and overload protection for connected equipment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$119.00

2 Year

$199.00

3 Year

$309.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

American Power Conversion (APC) AP4450A Specifications

Electrical

Electrical

Jump to...
  • Nominal input voltage

    100/120 VAC

  • Acceptable input voltage

    +/-10% of nominal

  • Input frequency

    50/60 Hz

  • Input connectors

    Two (2) 8' (2.44m) NEMA 5-15P power cords

  • Output connectors

    Ten (10) 5-15R outlets

  • Maximum output current (Outlet)

    12 A (UL)
    15 A (PSE)

  • Maximum output/input current

    12 A (UL)
    15 A (PSE)

  • Overload protection

    External (recommended): 15 A facility provided

  • Transfer time

    10 ms maximum (high sensitivity, 50-60 Hz)
    12 ms maximum (low sensitivity, 50-60 Hz)

  • Short circuit current rating

    10 kA

Environmental

Jump to...
  • Maximum elevation (above MSL)

    Operating: 0 to 10,000' (0 to 3 000m)
    Storage: 0 to 50,000' (0 to 15 000m)

  • Temperature

    Operating: 23 to 113 Degree F (-5 to 45 Degree C)
    Storage: -13 to 149 Degree F (-25 to 65 Degree C)

  • Humidity

    Operating: 5 to 95%, non-condensing
    Storage: 5 to 95%, non-condensing

Compliance

Jump to...
  • EMC

    FCC Part 15/ICES-003

  • Safety

    cULus/PSE - UL/EN/IEC 62368-1

Physical

Jump to...
  • Dimensions

    1.72 x 17 x 9.3" (43.7 x 431.8 x 236.2mm)

  • Weight

    9.7 lbs (4.4kg)

  • UPC Code

    731304432517

About American Power Conversion (APC) AP4450A

Under the umbrella of high-performance power solutions, the American Power Conversion (APC) NetShelter Rack Automatic Transfer Switch (ATS) AP4450A stands out as a fifth-generation innovation designed to enhance the control and reliability of your IT infrastructure, from cloud environments to edge computing. This advanced ATS is engineered to deliver redundant power to single-corded equipment within IT racks, ensuring uninterrupted operation and peace of mind.

The APC AP4450A is a single-phase, 1U rack-mounted ATS with a 15A rated current and a voltage capacity of 100V/120V, supporting a load capacity of up to 1440VA. Specifically tailored for the North American market, it features a regulatory derated input current of 12A. The unit is equipped with two NEMA 5-15P inlet connectors and ten NEMA 5-15R outlet sockets, providing ample connectivity options for your equipment.

This model incorporates the latest APC NMC3 technology, offering significant advancements in network port sharing, environmental monitoring, and enhanced security features. Users can effortlessly access and configure the Rack ATS through a secure web user interface, SNMP, or CLI, ensuring seamless integration with existing systems. Additionally, the AP4450A is fully compatible with EcoStruxure IT, enabling comprehensive management and monitoring of your power infrastructure.

With industry-leading reliability, agility, and manageability, the APC NetShelter Rack ATS AP4450A is an essential component for maintaining the efficiency and resilience of your IT operations.

American Power Conversion (APC) AP4450A Features

  • Minimized downtime disruption with Field-replaceable NMC
  • Monitor temperature and humidity efficiently
  • Dual input power cords to enhance uptime for critical loads
  • Connect and manage up to 32 Rack ATSs from one IP address
  • Seamless switching with transfer time 10ms

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Ensure uptime with this APC NetShelter automatic transfer switch for rack equipment.
  • Get reliable power redundancy with 10 NEMA 5-15R outlets on this 1U power distribution panel.
  • Safeguard critical devices; this transfer switch offers a rapid 10ms power transfer time.
  • This automatic transfer switch supports 100/120 VAC input for versatile power solutions.
  • Maximize rack space; the 1U design fits seamlessly into your existing server rack setup.
  • Enjoy peace of mind with surge protection and overload protection for connected equipment.

What's in the box:

  • American Power Conversion (APC) AP4450A NetShelter Rack Automatic Transfer Switch
  • Rack Mounting Brackets
  • Mounting Hardware
  • American Power Conversion (APC) 2 Year Limited Warranty
