American Power Conversion (APC) AP4453A Automatic Transfer Switch, 2 L5-30P IN
See all American Power Conversion (APC) items

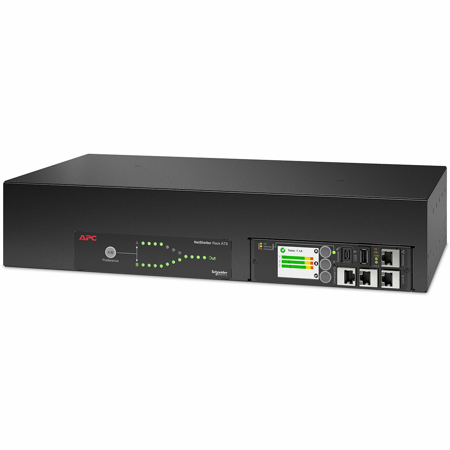

American Power Conversion (APC) AP4453A NetShelter Rack Automatic Transfer Switch, 2U, 30A, 2 L5-30P IN

SKU: AP4453A MFR: AP4453A
(1)Ask a Question
$2,150.00
OR
$180/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Ensure uptime with this 30A APC automatic transfer switch for rack-mounted equipment.
  • Get seamless power redundancy; the transfer time is just 10-12 ms on this power supply.
  • This 2U rack ATS features sixteen 5-20R outlets, perfect for high-density server setups.
  • Dual 8' NEMA L5-30P power cords offer versatile power input options for your equipment.
  • Safeguard devices with overload protection from two 20A circuit breakers in this ATS.
  • This APC NetShelter switch supports 120V input & provides reliable power distribution.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$219.00

2 Year

$369.00

3 Year

$599.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-07-25T20:00:00

Rated 2 out of 5

Missing crucial L5-30P output

I have been using APC for over 30 years now, as they have always had great products. We typically buy the 30 amp 120 volt Smart-UPS and PDU's with the L5-30P connector, to utilize the full 30 amps on these units. However, I do not understand why APC did not provide a L5-30P output for this 30 amp automatic transfer switch. It has x2 L5-30P 30 amp inputs, but only allows for 20 amp outputs. Can APC please look at adding this going forward? Two of your competitors have already incorporate an L5-30P output for their 120v 30 amp transfer switches. The Tripp Lites PDUMNH30AT2 and CyberPower PDU44003 both have this feature. CyberPower goes one step further and included a built in PDU on for all the 120v output ports. I would hope that APC could at least include an L5-30P outlet at a minimum. Thanks!

APC U.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

American Power Conversion (APC) AP4453A Specifications

Electrical

Electrical

Jump to...

  • Nominal input voltage

    120 VAC

  • Acceptable input voltage

    +/-10% of nominal

  • Input frequency

    50/60 Hz

  • Input connectors

    Two (2) 8' (2.44m) NEMA L5-30P power cords

  • Output connectors

    Sixteen (16) 5-20R outlets

  • Maximum output current

    16 A (ampacity corrected)-outlet
    16 A (ampacity corrected)-bank

  • Maximum output/input current

    24 A (ampacity corrected)

  • Overload protection

    Internal: Two (2) 20 A single-pole circuit breakers
    External (recommended): 30 A facility provided

  • Transfer time

    10 ms maximum (high sensitivity, 50-60 Hz)
    12 ms maximum (low sensitivity, 50-60 Hz)

  • Short circuit current rating

    10 kA

Environmental

Jump to...

  • Maximum elevation (above MSL)

    Operating: 0 to 10,000' (0 to 3 000m)
    Storage: 0 to 50,000' (0 to 15 000m)

  • Temperature

    Operating: 23 to 113 Degree F (-5 to 45 Degree C)
    Storage: -13 to 149 Degree F (-25 to 65 Degree C)

  • Humidity

    Operating: 5 to 95%, non-condensing
    Storage: 5 to 95%, non-condensing

Compliance

Jump to...

  • EMC

    FCC Part 15/ICES-003

  • Safety

    cULus/PSE - UL/EN/IEC 62368-1

Physical

Jump to...

  • Dimensions

    3.47 x 17 x 9.3" (88.1 x 431.8 x 236.2mm)

  • Weight

    13.95 lbs (6.33kg)

Other

Jump to...

  • UPC Code

    731304432531

About American Power Conversion (APC) AP4453A

Find unparalleled power management and reliability with the APC NetShelter Rack Automatic Transfer Switch (ATS) AP4453A, a cutting-edge solution designed for high availability in IT environments from Cloud to Edge. This fifth-generation ATS is engineered to deliver superior control and redundancy for single-corded equipment loads within your IT rack, ensuring continuous operation and peace of mind.

The AP4453A is a robust single-phase, 2U rack-mounted ATS with a 30A rated current, specifically tailored for the North American market with a regulatory derated input current of 24A. It features dual NEMA L5-30P inlets, providing versatile input options, and is equipped with ten NEMA 5-20R outlet sockets to accommodate a variety of devices.

This advanced switch incorporates the latest APC NMC3 technology, offering enhanced capabilities such as network port sharing, comprehensive environmental monitoring, and fortified security measures. Users benefit from the flexibility of accessing and configuring the Rack ATS through a secure Web UI, SNMP, and CLI interfaces, ensuring seamless integration with EcoStruxure IT for optimized infrastructure management.

Experience the industry-leading reliability, agility, and manageability of the APC NetShelter Rack ATS AP4453A, a vital component for maintaining uninterrupted power supply and safeguarding your critical IT equipment.

American Power Conversion (APC) AP4453A Features

  • Minimized downtime disruption with Field-replaceable NMC
  • Monitor temperature and humidity efficiently
  • Dual input power cords to enhance uptime for critical loads
  • Connect and manage up to 32 Rack ATSs from one IP address
  • Seamless switching with transfer time 10ms

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure uptime with this 30A APC automatic transfer switch for rack-mounted equipment.
  • Get seamless power redundancy; the transfer time is just 10-12 ms on this power supply.
  • This 2U rack ATS features sixteen 5-20R outlets, perfect for high-density server setups.
  • Dual 8' NEMA L5-30P power cords offer versatile power input options for your equipment.
  • Safeguard devices with overload protection from two 20A circuit breakers in this ATS.
  • This APC NetShelter switch supports 120V input & provides reliable power distribution.

What's in the box:

  • American Power Conversion (APC) AP4453A NetShelter Rack Automatic Transfer Switch
  • Rack Mounting Brackets
  • Mounting Hardware
  • American Power Conversion (APC) 2 Year Limited Warranty
