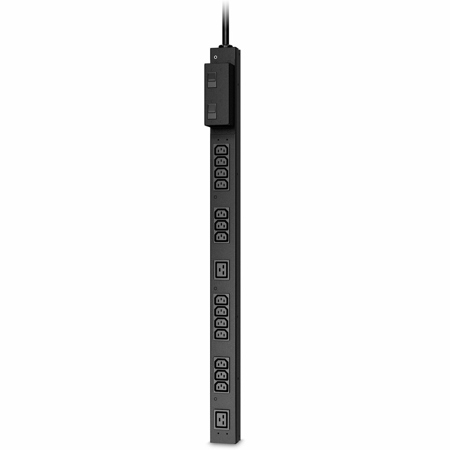

American Power Conversion (APC) AP6002A Basic Rack Power Distribution Unit, 0U, 30A, 14x C13 IN

SKU: AP6002A MFR: AP6002A
Earn VIP Reward Points

Key Features

  • This APC power distribution unit delivers reliable power to your rack equipment.
  • Equipped with 14 C13 and 2 C19 outlets, this unit supports multiple devices.
  • The 10-foot cord provides flexible placement options within your server rack setup.
  • With a 30A maximum input current, this APC PDU handles high power demands.
  • Built-in overcurrent protection ensures the safety of your connected equipment.
  • This 0U rack-mountable PDU optimizes space while providing essential power.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$89.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-03-25T20:00:00

Rated 5 out of 5

Excellent full featured PDU!

We've used these in our cabinet designs and installs and they're the best bang or the buck. Slim, plenty of plugs and solidly built!

RichD

2019-06-12T20:00:00

Rated 5 out of 5

Great Features!

Great Features for this basic product I would recommend

ASierra

2019-06-12T20:00:00

Rated 5 out of 5

Great Features!

Great Features for this basic product I would recommend

Alberto

2019-03-21T20:00:00

Rated 5 out of 5

Great PDU for Modest Means!

If you don't need a lot of 208V outlets, this PDU is worth your consideration. (14) C13 and (2) C19 outlets are often more than enough for a rack, which makes this PDU a good deal. Just make sure you have a NEMA L6-30P outlet with a 30A circuit to feed it!

esstek

2018-07-29T20:00:00

Rated 5 out of 5

Works great

This is an ideal power distribution solution. Very happy with the design and the appearance. Works great!

APC4U

2017-11-29T19:00:00

Rated 5 out of 5

Reliable Unit

Very happy with this PDU. Fits nicely into the rack, helps eliminate clutter and looks sharp. Very happy overal with APC's product offering.

lal922

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

American Power Conversion (APC) AP6002A Specifications

Electrical

Electrical

Jump to...
  • Input connection

    NEMA L6-30P cord included

  • Acceptable input voltage

    200-240 VAC +6% to -10%

  • Maximum input current (phase)

    30 A (24 A UL/C-UL derated)

  • Input frequency

    50/60 Hz

  • Output voltage

    200-240 VAC +6% to -10%

  • Output connections

    (14) C13 and (2) C19

  • Maximum output current (Outlet)

    C19; 16 A, C13; 12 A (UL/C-UL derated)
    C19; 20 A, C13; 15 A (PSE)

  • Maximum output current (phase)

    30 A (24 A UL/C-UL derated)

  • Maximum output current (bank)

    20 A (16 A UL/C-UL derated)

  • Overcurrent protection (internal)

    (2) 20 A, 2-pole breakers

Environmental

Jump to...
  • Cord length

    10' (3.04m)

  • Maximum elevation (above MSL)

    Operating: 0 to 10,000' (0 to 3 000m)
    Storage: 0 to 50,000' (0 to 15 000m)

  • Temperature

    Operating: 32 to 122 Degree F (0 to 50 Degree C)
    Storage: 5 to 140 Degree F (-15 to 60 Degree C)

Compliance

Jump to...
  • Humidity

    Operating: 5 to 95%, non-condensing
    Storage: 5 to 95%, non-condensing

  • Safety approvals

    UL/C-UL, PSE

Physical

Jump to...
  • Dimensions

    32.81 x 2.19 x 1.85" (83.33 x 5.56 x 4.69cm)

  • Weight

    8.49 lbs (3.86kg)

  • UPC Code

    731304327639

About American Power Conversion (APC) AP6002A

FEATURED REVIEWS

Excellent full featured PDU!

By RichD

We've used these in our cabinet designs and installs and they're the best bang or the buck. Slim, plenty of plugs and solidly built!

Great Features!

By Alberto

Great Features for this basic product I would recommend

If you're seeking a reliable solution to distribute power efficiently within your server rack, the American Power Conversion (APC) AP6002A Basic Rack Power Distribution Unit (PDU) is an ideal choice. Designed by Schneider Electric, this 0U PDU is engineered to optimize space while delivering robust power management. With a capacity of 30A, it is equipped with 14 C13 outlets, providing ample connectivity for your essential IT equipment. Additionally, it features 2 C19 outlets, making it versatile enough to accommodate a variety of devices.

This APC Basic Rack PDU is perfect for environments where 208V outlets are not extensively required, offering a practical and cost-effective power distribution solution. Its compatibility with a NEMA L6-30P outlet ensures seamless integration into your existing infrastructure, provided you have a 30A circuit to support it. Enhance the efficiency and reliability of your data center or server room with the APC AP6002A, a trusted name in power management solutions.

American Power Conversion (APC) AP6002A Features

  • Outlets: The Rack PDU has fourteen (14) C13 and two (2) C19 outlets
  • Power cord: The 3.04 m (10.00 ft) power cord terminates with a NEMA L6-30P plug

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • This APC power distribution unit delivers reliable power to your rack equipment.
  • Equipped with 14 C13 and 2 C19 outlets, this unit supports multiple devices.
  • The 10-foot cord provides flexible placement options within your server rack setup.
  • With a 30A maximum input current, this APC PDU handles high power demands.
  • Built-in overcurrent protection ensures the safety of your connected equipment.
  • This 0U rack-mountable PDU optimizes space while providing essential power.

What's in the box:

  • American Power Conversion (APC) AP6002A Basic Rack Power Distribution Unit
  • Rack Mounting Brackets
  • User Manual
  • American Power Conversion (APC) 2 Year Limited Warranty
