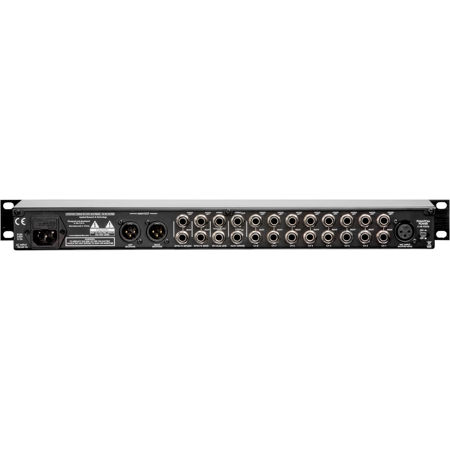

Input: XLR-F balanced (MIC)
1/4" TRS unbalanced (Ch1-Ch8, Effects Return)
1/4" TRS stereo unbalanced (EFX Buss, Main Expand)
Output: XLR-M balanced (Main)
1/4" TRS unbalanced (Effects Send)
1/4" TRS stereo unbalanced (Monitor, Main Expand, Headphone)
Input: 1k Ohm (MIC), 5k Ohm (Ch1-Ch8)
Output: <1k Ohm (Main, balanced), <25 Ohm (Headphone)
<0.01% @ 1kHz
> 90dB typical (Ref 0dBu)
Input: -19dBu (MIC), +24dBu (Ch1-8)
Output: +24dBu (Main), +18dBu (Monitor, Effects Send)
+60dB (MIC), +14dB (Ch1-8)
Switch Selectable, +48V DC, filtered, current limited
USA - 95 to 125 VAC, 50-60 Hz
Export units configured for country of destination
1.75 x 19 x 6" (44.5 x 483 x 152mm)
6.5 lbs (2.95kg)
840402019572
When it comes to professional audio mixing solutions, the ART MX822 Eight Channel Stereo Rackmount Mixer with Effects Loop stands out as a high-quality, durable, and versatile choice. Designed for a wide range of applications, this 8-channel stereo mixer is perfect for studio recording, live sound production, and installation use.

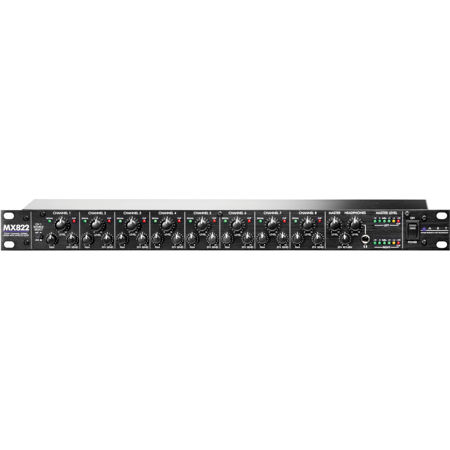

Each of the eight input channels is capable of accepting both mono and stereo signals, offering independent level, pan, and effects send controls for precise audio manipulation. The mixer's design incorporates signal and clip lights for each channel, along with five-level metering and separate clip indicators for the main output channels, ensuring optimal signal level monitoring.
Channel 1 of the ART MX822 features a switchable mic/line source select, and the XLR mic connector comes with switchable phantom power, enhancing its versatility. For expanded input capabilities, multiple MX822 units can be interconnected using common 1/4-inch TRS cables.
The mixer also allows for the integration of external effects processors, which can be mixed in with independent level controls for a more customized sound. A front panel headphone jack with a separate level control enables you to monitor your sound without altering the main output level.
Whether you're using it on stage, in the studio, or for permanent installations such as conference rooms, corporate boardrooms, churches, restaurants, small clubs, or health clubs, the ART MX822 Eight Channel Stereo Rackmount Mixer with Effects Loop delivers reliable performance. It's an ideal solution for sub-mixing a player using multiple instruments in a live band setting or serving as the sole mixer for a small live setup.
