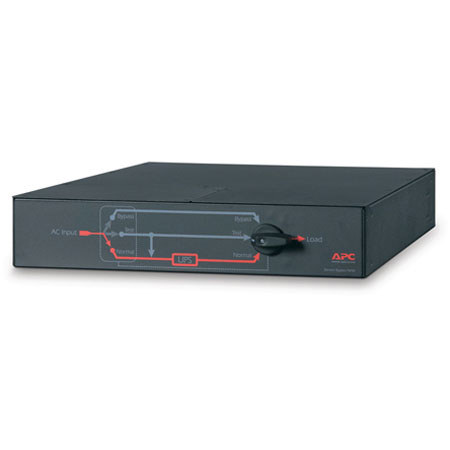

American Power Conversion (APC) APC SBP3000RM2U Service Bypass Panel
American Power Conversion (APC) SBP3000RM2U: Picture 1 thumbnail
American Power Conversion (APC) SBP3000RM2U: Picture 2 thumbnail
American Power Conversion (APC) SBP3000RM2U: Picture 3 thumbnail
American Power Conversion (APC) SBP3000RM2U: Picture 4 thumbnail
See all American Power Conversion (APC) items

American Power Conversion (APC) SBP3000RM2U Service Bypass Panel, 100-120V Input, 30A, 6xNEMA 5-15R/2xNEMA 5-20R

SKU: APC3000RM2U MFR: SBP3000RM2U
Be the first to review this itemAsk a Question
$919.00
OR
$77/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Ensure seamless UPS power supply maintenance with this APC service bypass panel.
  • Maximize uptime; this 3000 VA service bypass offers reliable power transition.
  • Features (6) NEMA 5-15R & (2) 5-20R outlets for diverse equipment power needs.
  • Operate confidently with 30A capacity and overload protection for connected devices.
  • Simplify UPS swaps; this 2U rackmount bypass panel keeps critical systems running.
  • Wide compatibility: 100-120V input handles various power supply configurations.
See More Product Details
Temporarily On Backorder?Expected Availability: 11/2025Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

American Power Conversion (APC) SBP3000RM2U Specifications

  • Nominal Output Voltage

    100V, 120V

  • Maximum Total Current Draw per Phase

    30A

  • Output Connections

    (6) NEMA 5-15R
    (2) NEMA 5-20R

  • Overload Protection

    Yes

  • Nominal Input Voltage

    100V, 120V

  • Output Cord Length

    10' (3.05m)

  • Input Cord Length

    10' (3.05m)

  • Input Frequency

    50/60 Hz

  • Input Connections

    NEMA L5-30P

  • Number of Power Cords

    1

  • Maximum Line Current per phase

    24A

  • Maximum Input Current per phase

    24A

  • Load Capacity

    3000 VA

  • Load Power Factor Range

    0 to 1

  • Operating Environment

    -20 - 50 deg.C

  • Operating Relative Humidity

    0 - 95%

  • Operating Elevation

    0-15000' (0-4500m)

  • Storage Temperature

    -25 - 65 deg.C

  • Storage Relative Humidity

    0 - 95%

  • Storage Elevation

    0-50000' (0-15000m)

  • Dimensions (HxWxD)

    3.50x17.00x25.50" (8.89x43.18x64.77cm)

  • Weight

    30.00lbs (13.60kg)

  • UPC Code

    731304212577

About American Power Conversion (APC) SBP3000RM2U

The APC SBP3000RM2U is a (3) breaker maintenance bypass panel to isolate the UPS from the critical load. The transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure seamless UPS power supply maintenance with this APC service bypass panel.
  • Maximize uptime; this 3000 VA service bypass offers reliable power transition.
  • Features (6) NEMA 5-15R & (2) 5-20R outlets for diverse equipment power needs.
  • Operate confidently with 30A capacity and overload protection for connected devices.
  • Simplify UPS swaps; this 2U rackmount bypass panel keeps critical systems running.
  • Wide compatibility: 100-120V input handles various power supply configurations.

What's in the box:

  • APC SBP3000RM2U Service Bypass Panel
  • Installation Guide
  • Rack Mounting Brackets
  • User Manual
  • American Power Conversion (APC) 2 Year Limited Warranty
