Output Power Capacity: 2700 Watts/3000VA
Max Configurable Power: 2700 Watts/3000VA
Nominal Output Voltage: 230V
Output Voltage Distortion: Less than 5% at Full Load
Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz Nominal, 57 - 63 Hz for 60 Hz Nominal
Other Output Voltages: 208,220,240
Topology: Line Interactive
Waveform Type: Sine Wave

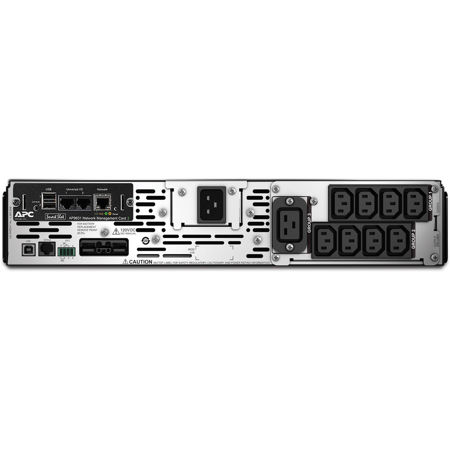

Output Connections: 8x IEC 320 C13, 1x IEC 320 C19, 2x IEC Jumpers
Nominal Input Voltage: 230V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Cord Length: 8' / 2.4m
Input voltage range for main operations: 141 - 255,160 - 280V
Other Input Voltages: 208,220,240
Transfer Time: 2-4 ms
Battery Type: Maintenance-Free Sealed Lead-Acid Battery With Suspended Electrolyte: Leakproof
Typical Recharge Time: 3 hour(s)
Replacement Battery: APCRBC117
RBC Quality: 1
interface Port(s): Smart-Slot
Pre-Installed SmartSlot Cards: AP9631
Control panel: LED Status Display with On Line, On Battery, Replace Battery and Overload Indicators, Multi- Function LCD Status and Control Console
Audible Alarm: Alarm When On Battery, Distinctive Low Battery Alarm, Configurable Delays
Emergency Power Off (EPO): Yes
Surge Energy Rating: 645 Joules
Filtering: Full Time Multi-Pole Noise Filtering, 0.3% IEEE Surge Let-Through
Zero Clamping Response Time
Meets UL 1449
Data Line Protection: None
Operating Environment: 32 to 104deg. F / 0 to 40 deg.C
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-10000' / 0-3000m
Storage Temperature: 5 to 113deg. F / -15 to 45 deg.C
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0-50000' / -15000m
Audible noise at 1 meter from surface of unit: 55 dBA
Online Thermal Dissipation: 184 BTU/hr
Regulatory Approvals: C-tick, CE, CSA, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM< UL 1778, VDE
Environmental Compliance: RoHS 7b Exemption
REACH: Contains no SVHCs, Contains Lithium Battery
2U
17x3.36x26.26" / 431.8x85.3x667mm
82.10lbs / 37.23kg
731304272694
While safeguarding your critical electronics, the APC Smart-UPS X 3000VA Rack/Tower with LCD and Network Card, 200-240V, stands as a paragon of reliability and durability in the realm of uninterruptible power supplies. Engineered to deliver high-performance power protection for servers, point-of-sale systems, routers, switches, hubs, and other network devices, this Smart-UPS is an essential component for maintaining operational stability and security.
The unit's Automatic Voltage Regulation (AVR) technology is a cornerstone feature, ensuring higher application availability by correcting low and high voltage conditions without depleting the battery. This advanced capability not only preserves battery life but also maintains a consistent power supply to your equipment.
At the heart of this UPS is an intelligent battery management system, meticulously designed to optimize battery performance, extend its lifespan, and guarantee reliability through precision charging. The innovative temperature-compensated battery charging adjusts the charge voltage in accordance with the battery temperature, further enhancing the longevity of the battery.
Proactive in its approach, the Smart-UPS X 3000VA Rack/Tower with LCD conducts periodic battery self-tests, providing early detection of batteries that require replacement. This feature, coupled with the battery failure notification, ensures that you are always informed and prepared for maintenance needs.
The unit's network manageability is a testament to its user-friendly design, offering remote management capabilities over the network. This allows for seamless monitoring and control, ensuring that your power supply is always functioning optimally. Audible alarms and LED status indicators keep you updated on the UPS's operational status, including battery usage, low battery warnings, and overload conditions.
Connectivity is a breeze with both serial and USB interfaces, allowing for easy management of the UPS through respective ports. The inclusion of hot-swappable batteries is a critical feature, enabling the replacement of batteries without interrupting the power supply to your connected equipment.
For added convenience, the Smart-UPS X 3000VA Rack/Tower with LCD features resettable circuit breakers, facilitating quick recovery from overloads. The adjustable voltage-transfer points allow you to tailor the input voltage window or output voltage regulation, maximizing battery life and adapting to specific power environments or generator applications.
Tested and approved to work safely with connected service provider equipment, this UPS is designed to perform within a wide range of environmental conditions, ensuring that your equipment is protected and your business operations remain uninterrupted. Whether mounted in a rack or positioned as a tower, the Smart-UPS X 3000VA Rack/Tower with LCD and Network Card is a robust and advanced solution for your power backup needs.
