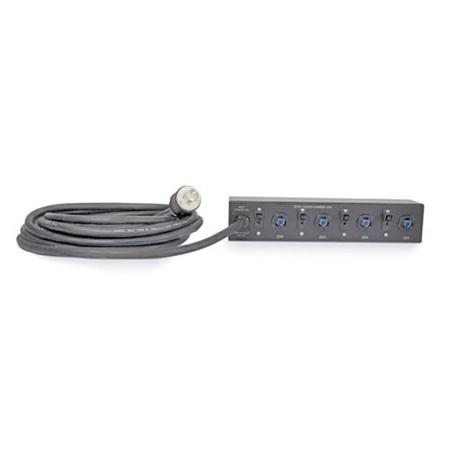

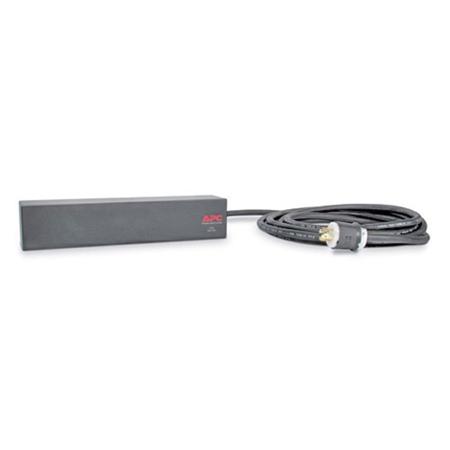

American Power Conversion (APC) AP7581 Basic Rack PDU Extender, 2U, 30A, 208V Out, 4xNEMA L14-30P

SKU: APCAP7581 MFR: AP7581
Earn VIP Reward Points

Key Features

  • Get reliable power distribution with this APC 208V Basic Rack PDU Extender.
  • Maximize uptime with a robust power supply, featuring a 28-foot NEMA L14-30P cord.
  • Equip your server rack with a 2U PDU, designed for easy installation and use.
  • This rack mount PDU supports multiple devices with (4) NEMA L6-20R output connections.
  • Ensure safe operations; this power distribution unit is cUL, CSA, METI, and UL listed.
  • Optimize your setup with a PDU, supporting a maximum total current draw of 24A.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$43.99

2 Year

$74.99

3 Year

$119.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

American Power Conversion (APC) AP7581 Specifications

  • Nominal Output Voltage

    208V

  • Maximum Total Current Draw per Phase

    24A

  • Output Connections

    (4) NEMA L6-20R

  • Nominal Input Voltage

    200V, 208V, 230V

  • Input Frequency

    50/60 Hz

  • Regulatory Derated Input Current

    24A (North America)

  • Input Connections

    NEMA L14-30P

  • Cord Length

    28' / 8.53m

  • Number of Power Cords

    1

  • Maximum Input Current per phase

    30A

  • Load Capacity

    4992 VA

  • Operating Environment

    32 - 113 deg.F (0 - 45 deg.C)

  • Operating Relative Humidity

    0 - 95%

  • Operating Elevation

    0-10000 feet (0-3000 meters)

  • Storage Temperature

    -13 - 149 deg.F (-25 - 65 deg.C)

  • Storage Relative Humidity

    0 - 95%

  • Storage Elevation

    0-50000 feet (0-15000 meters)

  • Regulatory Approvals

    cUL Listed, CSA C22.2 No. 107.1, METI Denan, UL 1778, UL Listed

  • Dimensions (HxWxD)

    3.50x17.20x3.50" / 8.89x43.68x8.89cm

  • Weight

    14 lbs / 6.35 kg

  • UPC Code

    731304213079

About American Power Conversion (APC) AP7581

Take your power distribution to the next level with the APC AP7581 Basic Rack PDU Extender. Engineered for exceptional performance, this robust and reliable 2U rack-mountable PDU extender is an essential component for any data center or server room. With a substantial 30A current rating and a 208V output, it is designed to handle the demanding power needs of multiple rack-mounted devices with ease.

Crafted with durability in mind, the AP7581 features a sturdy build quality that APC is renowned for, ensuring a high-quality power solution that stands the test of time. The unit comes equipped with four NEMA L14-30P outlets, offering a secure and stable power connection for up to four devices, making it an ideal choice for expanding your power distribution capabilities without the need for additional PDUs.

Installation is streamlined and cost-effective, as the AP7581 utilizes a single branch whip and standard connections, simplifying the process and reducing the need for complex wiring. This not only saves time during setup but also minimizes installation expenses.

Whether you're looking to power servers, networking hardware, or other critical equipment, the APC AP7581 Basic Rack PDU Extender delivers a reliable and high-capacity power solution. Its 2U form factor ensures it integrates seamlessly into your existing rack setup, maintaining an organized and efficient power management system.

Choose the APC AP7581 for a power distribution solution that combines reliability, efficiency, and the high-quality standards that professionals demand. With its robust construction and dependable performance, it's the smart choice for ensuring that your critical equipment remains powered and operational.

American Power Conversion (APC) AP7581 Features

  • High-performance 2U rack-mountable PDU extender from renowned brand APC
  • Robust and reliable power distribution with 30A current and 208V output
  • Equipped with four NEMA L14-30P outlets for secure and stable power connection
  • Streamlined and cost-effective installation using a single branch whip and standard connections
  • Ideal for powering multiple rack-mounted devices in data centers and server rooms
  • Durable construction ensures long-lasting performance and reliability

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Get reliable power distribution with this APC 208V Basic Rack PDU Extender.
  • Maximize uptime with a robust power supply, featuring a 28-foot NEMA L14-30P cord.
  • Equip your server rack with a 2U PDU, designed for easy installation and use.
  • This rack mount PDU supports multiple devices with (4) NEMA L6-20R output connections.
  • Ensure safe operations; this power distribution unit is cUL, CSA, METI, and UL listed.
  • Optimize your setup with a PDU, supporting a maximum total current draw of 24A.

What's in the box:

  • APC AP7581 Basic Rack PDU Extender
  • Installation Guide
  • Rack Mounting Brackets
  • American Power Conversion (APC) 2 Year Limited Warranty
