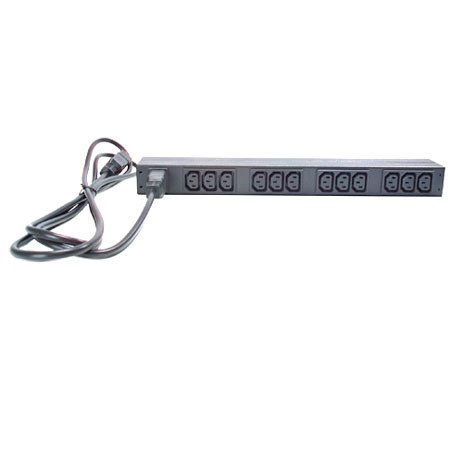

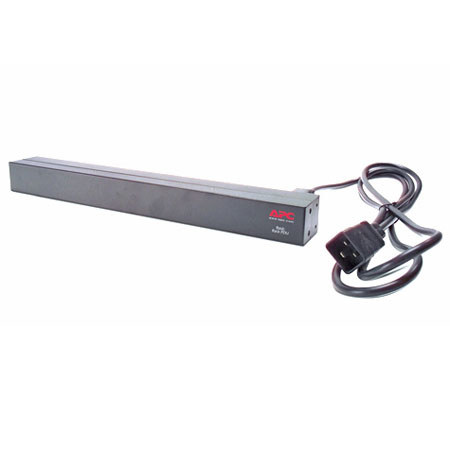

American Power Conversion (APC) APC AP9565 1U Basic Rack PDU
See all American Power Conversion (APC) items

American Power Conversion (APC) AP9565 1U Basic Rack PDU, 16A, 208/230V Output, 12x IEC 320 C13

SKU: APCAP9565

This item is no longer available.

Recommended Alternatives

American Power Conversion (APC) AP4421A: Picture 1 regular
American Power Conversion (APC) AP4421A Automatic Transfer Switch, 1U,10A,C14 IN
$1,650.00
American Power Conversion (APC) AP4430A: Picture 1 regular
American Power Conversion (APC) AP4430A Automatic Transfer Switch, 2 L6-20 IN
$1,700.00
American Power Conversion (APC) AP4433A: Picture 1 regular
American Power Conversion (APC) AP4433A Automatic Transfer Switch, 1U,12A,C14 IN
$1,650.00
American Power Conversion (APC) AP4434A: Picture 1 regular
American Power Conversion (APC) AP4434A Automatic Transfer Switch, 2 C20 IN
$1,700.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2019-05-20T20:00:00

Rated 5 out of 5

Solid Device

This PDU is solid in use and construction. Recommended

Alberto

2019-05-20T20:00:00

Rated 5 out of 5

Solid Device

This PDU is solid in use and construction. Recommended

ASierra

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

American Power Conversion (APC) AP9565 Specifications

  • Nominal Output Voltage

    208V, 230V

  • Maximum Total Current Draw per Phase

    16A

  • Output Connections

    (12) IEC 320 C13

  • Nominal Input Voltage

    200V, 208V, 230V

  • Input Frequency

    50/60 Hz

  • Input Connections

    IEC-320 C20

  • Cord Length

    8.2' / 2.50m

  • Number of Power Cords

    1

  • Maximum Input Current per phase

    16A

  • Load Capacity

    3680 VA

  • Operating Environment

    32 - 113 deg.F (0 - 45 deg.C)

  • Operating Relative Humidity

    0 - 95%

  • Operating Elevation

    0-10000 feet (0-3000 meters)

  • Storage Temperature

    -13 - 149 deg.F (-25 - 65 deg.C)

  • Storage Relative Humidity

    0 - 95%

  • Storage Elevation

    0-50000 feet (0-15000 meters)

  • Regulatory Approvals

    cUL Listed, CE, Queensland Australia, UL 60950, UL Listed, VDE

  • Dimensions (HxWxD)

    1.75x17.60x2.25" / 4.45x44.70x5.72cm

  • Weight

    4.50 lbs / 2.04 kg

  • UPC Code

    731304213055

About American Power Conversion (APC) AP9565

FEATURED REVIEWS

Solid Device

By ASierra

This PDU is solid in use and construction. Recommended

Solid Device

By Alberto

This PDU is solid in use and construction. Recommended

The APC AP9565 1U Basic Rack PDU allow users to distribute power outlets to rack-mount equipment. APC now offers Basic Rack PDU with low cost power distribution that mount vertically, without tools in the rear channel of a NetShelter VX.

American Power Conversion (APC) AP9565 Features

  • Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections
  • Low Cost Power Distribution: Provides a number of outlets to bring power to rack equipment at an affordable price

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Single input power source
  • Low Cost Power Distribution

What's in the box:

  • APC AP9565 1U Basic Rack PDU
  • Rack Mounting Brackets
  • Installation Guide
  • APC 2 Years Warranty
