American Power Conversion (APC) SBP20KP Service Bypass Panel, 200/208/230/240V, 20kVA Load Capacity

SKU: APCSBP20KP MFR: SBP20KP
Earn VIP Reward Points

Key Features

  • Ensure continuous power to critical equipment with this 20kVA APC Service Bypass Panel.
  • Simplify UPS maintenance with this bypass panel, allowing for uninterrupted power supply.
  • This APC SBP20KP supports 200/208/230/240V power, making it versatile for various setups.
  • Safeguard your systems during UPS maintenance with seamless power switching via this panel.
  • The service bypass panel supports a wide range of input voltages, enhancing compatibility.
  • Install the APC bypass panel in your rack for streamlined power management and uptime.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

American Power Conversion (APC) SBP20KP Specifications

  • Nominal Output Voltage

    200V, 208V, 220V, 230V, 240V

  • Maximum Total Current Draw per Phase

    125A

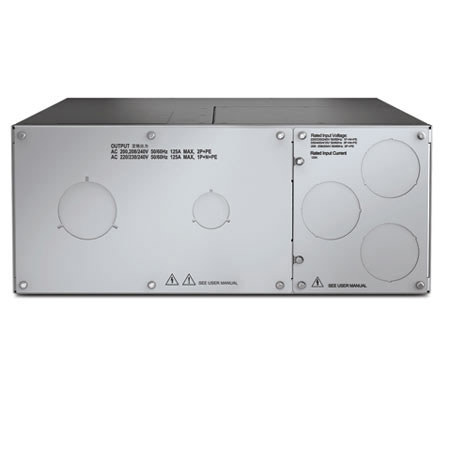

  • Output Connections

    (1) Hard Wire 3-wire (2PH + G)
    (1) Hard Wire 3-wire (H N + G)

  • Overload Protection

    Yes

  • Nominal Input Voltage

    200V, 208V, 220V, 230V, 240V, 380V 3PH, 400V 3PH

  • Input Frequency

    50/60 Hz

  • Input Connections

    Hard Wire 3-wire (2PH + G)
    Hard Wire 3 wire (1PH+N+G)
    Hard Wire 5-wire (3PH + N + G)

  • Number of Power Cords

    1

  • Acceptable Input Voltage

    200-240 VAC

  • Maximum Line Current per phase

    125A

  • Maximum Input Current per phase

    125A

  • Load Capacity

    20 kVA

  • Load Power Factor Range

    0 to 1

  • Operating Environment

    -4-122deg.F (-20-50deg.C)

  • Operating Relative Humidity

    0 - 95%

  • Operating Elevation

    0-15000' (0-4500m)

  • Storage Temperature

    -40-149deg.F (-40-65deg.C)

  • Storage Relative Humidity

    0 - 95%

  • Storage Elevation

    0-50000' (0-15000m)

  • Dimensions (HxWxD)

    7.00x17.00x21.81" (17.78x43.18x55.39cm)

  • Weight

    42.50lbs (19.27kg)

  • UPC Code

    731304266952

About American Power Conversion (APC) SBP20KP

Explore the APC SBP20KP Service Bypass Panel, a robust and reliable power management solution engineered to support your APC Symmetra RT 4-16kVA systems. With its impressive 20kVA load capacity, this high-quality bypass panel is capable of handling substantial electrical loads, ensuring your critical equipment remains operational during power disruptions.

Crafted for durability and performance, the SBP20KP is a testament to sturdy construction and is ideal for maintaining continuous power supply in high-demand environments. Its versatile voltage compatibility, ranging from 200V to 240V, makes it a suitable choice for a variety of electrical applications.

The panel's rack-mountable design allows for seamless integration into your existing data center or server room setup. Occupying only 4U of rack space, the SBP20KP is an efficient space-saving solution that doesn't compromise on power or functionality.

Designed to provide a secure bypass route for electrical power, this service bypass panel is essential for protecting your systems against power surges and interruptions. Its high-quality build and reliable performance make the SBP20KP an indispensable component for any organization that prioritizes the safety and continuity of their electrical infrastructure.

Choose the APC SBP20KP Service Bypass Panel for a durable, reliable, and high-capacity power management solution that you can trust to safeguard your valuable equipment and data.

American Power Conversion (APC) SBP20KP Features

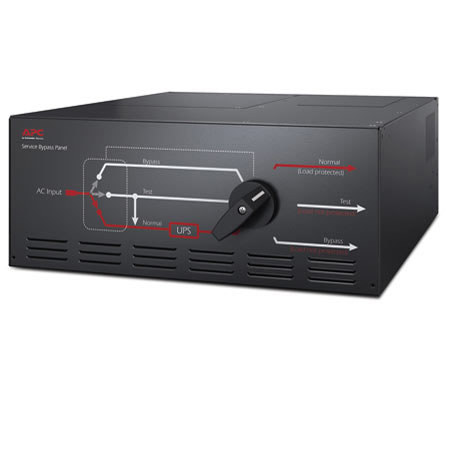

  • Wrap Around System Bypass: (3) Breaker maintenance bypass panel to isolate the UPS from the critical load

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Ensure continuous power to critical equipment with this 20kVA APC Service Bypass Panel.
  • Simplify UPS maintenance with this bypass panel, allowing for uninterrupted power supply.
  • This APC SBP20KP supports 200/208/230/240V power, making it versatile for various setups.
  • Safeguard your systems during UPS maintenance with seamless power switching via this panel.
  • The service bypass panel supports a wide range of input voltages, enhancing compatibility.
  • Install the APC bypass panel in your rack for streamlined power management and uptime.

What's in the box:

  • APC SBP20KP Service Bypass Panel
  • Installation Guide
  • Rack Mounting Brackets
  • User Manual
  • American Power Conversion (APC) 2 Year Limited Warranty
