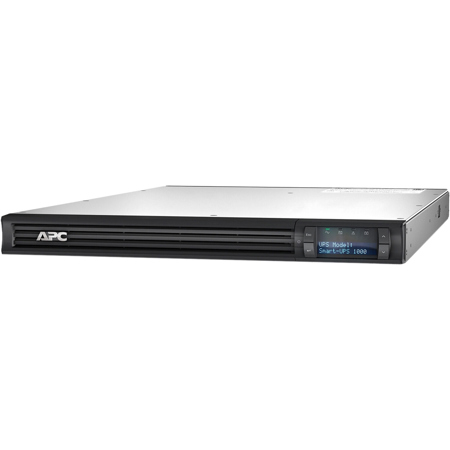

American Power Conversion (APC) SMT1000RM1U Smart-UPS 1000VA/800W Sine Wave Battery Backup and Surge Protector

SKU: APCSMT1000RM MFR: SMT1000RM1U
Earn VIP Reward Points

Key Features

  • Safeguard your valuable electronics with reliable surge protection and a robust 800W power capacity.
  • Experience seamless power during outages with this Smart-UPS, ensuring your devices stay operational.
  • Enjoy peace of mind with automatic voltage regulation, protecting against harmful power fluctuations.
  • This 1U rack-mounted UPS backup is perfect for optimizing space in your home or office setup.
  • Benefit from a pure sine wave output, ideal for sensitive electronics requiring clean, stable power.
  • Stay connected with multiple NEMA 5-15R outlets, providing ample battery runtime for essential equipment.
See More Product Details
Temporarily On Backorder?Expected Availability: 03/2026
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

American Power Conversion (APC) SMT1000RM1U Specifications

Main
  • Main Input Voltage

    120 V AC 1 phase

  • Input Connection Type

    NEMA 5-15P

  • Maximum Input Current per Phase

    8.33 A

  • Input Frequency

    50/60 Hz +/- 3 Hz auto-sensing

  • Output voltage

    120 V AC 1 phase

  • Rated power

    800 W, 1000 VA

  • Output connection type

    4 NEMA 5-15R

  • Harmonic distortion

    Less than 5%

  • Maximum configurable power

    800 W, 1000 VA

  • Transfer Time

    4ms typical : 8ms maximum

  • Topology

    Line Interactive

  • Waveform Type

    Sine wave

  • Output Frequency

    50/60 Hz +/- 3 Hz sync to mains

Complementary

Jump to...
  • Control panel

    Multi-function LCD status and control console

  • Free slots

    1

  • Alarm

    Alarm when on battery : distinctive low battery alarm : configurable delays

  • UPS connectivity

    Serial port
    USB port

  • Surge energy rating

    540 J

  • Filtering

    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m

  • Number of rack unit

    1U

  • Cable length

    8' (2.4m)

  • Mounting Location

    Front

  • Mounting preference

    Lower

  • Mounting Mode

    Rack-mounted

  • Redundant

    No

Environment

Jump to...
  • Certifications

    CSA

  • Ambient Air Temperature

    Operation: 32 to 104 Degree F (0 to 40 Degree C)
    Storage: 5 to 113 Degree F (-15 to 45 Degree C)

  • Storage altitude

    0 to 50000' (0 to 15240m)

  • Relative Humidity

    0 to 95 %

  • Acoustic level

    46 dBA

  • Online Thermal Dissipation

    88 Btu/h

  • Operating altitude

    0 to 10000' (0 to 3048m)

Batteries & Runtime

Jump to...
  • Typical recharge time

    5 hours

  • RBC Quantity

    1

  • Battery life

    3 to 5 years

  • Replacement battery

    RBC43

  • Battery Charge Power (Watts)

    28.8 W rated

  • Battery Info

    Required, Included

  • Battery Material

    Lead acid

  • Battery Type

    Non-universal

  • Battery Quantity

    1

General

Jump to...
  • Color

    Black

  • Country of origin

    India

  • Dimensions (H x W x D)

    1.7 x 17.0 x 19.8" (44 x 432 x 502mm)

  • Weight

    34.8 lbs (15.8kg)

  • UPC Code

    731304452485

About American Power Conversion (APC) SMT1000RM1U

This APC Smart-UPS is designed for small and medium businesses to maintain business uptime and continuity The 1000VA line interactive 1U rackmount provides pure sine wave power with a higher power factor to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA 5-15R outlets. It comes with PowerChute Software, which provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It provides surge protection against lightning strikes, power sags, brownouts, and surges. This UPS includes intelligent battery management with replacement suggestions, temperature-adjusted charging, self-tests, and battery disconnect notifications.

Improved energy efficiency
Saves money on utility and cooling costs while reducing your business's carbon footprint. Meets DoE energy efficiency requirements.

Higher power density
Increased power density with a smaller footprint compared to previous Smart-UPS SC/SMT models.

Battery management
Periodic self-test helps detect any batteries that need to be replaced, ensuring optimal runtime.

Flexible, short-depth rackmount
Fits shallow depth and regular racks, giving you extra space for cable management

LCD display
UPS status display with On-Line, On-Battery, Replace Battery and Overload indicators.

Built-in manageability for your UPS
Auto-Voltage Regulation function helps prevent risk of equipment damages and PowerChute Software connectivity offers graceful system shutdown during an extended power outage or computer problem.

American Power Conversion (APC) SMT1000RM1U Features

  • Replacement battery is available
  • Up to 25% more power (higher PF) & 23% depth reduction
  • 1U short depth, rack-mountable design
  • LCD status display
  • AVR double boost and trim
  • USB port for communication

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Safeguard your valuable electronics with reliable surge protection and a robust 800W power capacity.
  • Experience seamless power during outages with this Smart-UPS, ensuring your devices stay operational.
  • Enjoy peace of mind with automatic voltage regulation, protecting against harmful power fluctuations.
  • This 1U rack-mounted UPS backup is perfect for optimizing space in your home or office setup.
  • Benefit from a pure sine wave output, ideal for sensitive electronics requiring clean, stable power.
  • Stay connected with multiple NEMA 5-15R outlets, providing ample battery runtime for essential equipment.

What's in the box:

  • APC SMT1000RM1U Smart-UPS 1000VA/800W Sine Wave Battery Backup and Surge Protector
  • 8' Power Cord
  • PowerChute Software
  • User Manual
  • American Power Conversion (APC) 3 Year Limited Warranty
