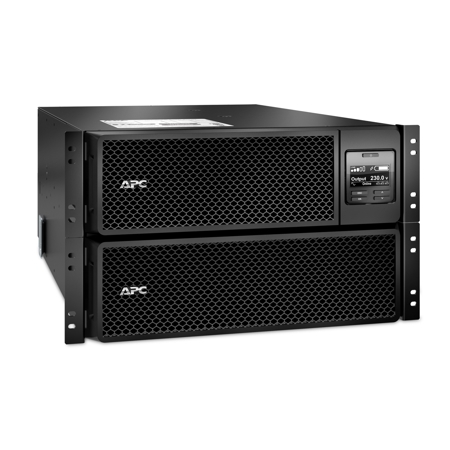

American Power Conversion (APC) Smart-UPS 10000VA 230V Rackmount/Tower Sinewave UPS, Black

SKU: APCST10MXLI MFR: SRT10KRMXLI
Earn VIP Reward Points

Key Features

  • Ensure uptime with this 10000VA APC Smart-UPS, perfect for critical server room equipment.
  • Reliable sine wave output keeps sensitive electronics running smoothly during power disruptions.
  • Get 3min 45s runtime at full load (10000W), allowing graceful shutdowns and preventing data loss.
  • This rackmount UPS has multiple outlets (6x C13, 4x C19) to power a variety of devices.
  • The internal bypass on this APC UPS ensures continuous power to connected loads during maintenance.
  • Manage power conditions remotely with the included Web/SNMP Management Card for your UPS.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the capacity of this Smart-UPS?

This Smart-UPS has a capacity of 10000VA/10000W.

What are the power connection options available with this UPS?

This UPS is equipped with a hard wire 3-wire/5-wire input, six IEC 320 C13 outlets, four IEC 60320 C19 outlets, and three IEC jumper cables.

What does the Embedded Network Management Card do?

The Embedded Network Management Card enables efficient network-based UPS monitoring and management.

What standards does this UPS comply with?

This UPS complies with CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE standards.

What applications is this UPS suitable for?

This UPS is suitable for various environments, including servers, voice/data networks, medical labs, and light industrial applications.

Reviews about this item

Review Summary

American Power Conversion (APC) Smart-UPS Specifications

General

General

Jump to...
  • Color

    Black

  • Run time for load (10000W)

    3min 45s

  • Max. Capacity Used

    100%

  • Main Input Voltage

    230 V
    400 V 3 phases

  • Other Input Voltage

    220 V
    240 V
    380 V
    415 V

  • Main Output Voltage

    230 V

  • Other Output Voltage

    220 V
    240 V

  • Rated Power in W

    10000 W

  • Rated Power in VA

    10000 VA

  • Output Connection Type

    6 IEC 60320 C13
    3 IEC Jumpers
    4 IEC 60320 C19

  • Output Connector Type

    Hard wire 3-wire (H N + E) 1

  • Number of Rack Unit

    6U

  • Battery Type

    Lead-acid battery

  • Product Web Sub-Family

    High density

  • Redundant

    No

  • Network Frequency

    40-70 Hz auto-sensing

  • Number of Input Connectors

    1 hard wire 3-wire (1P + N + E)
    1 hard wire 5-wire (3P + N + E)

  • Input Voltage Limits

    100-275 V adjustable (half load)
    173-476 V adjustable (half load)

  • Maximum Configurable Power In W

    10000 W

  • Harmonic Distortion

    Less than 2 %

  • Output Frequency

    50/60 Hz +/- 3 Hz sync to mains

  • Crest Factor

    3:1

  • UPS Type

    Double conversion online

  • Wave Type

    Sine wave

  • Bypass Type

    Internal bypass (automatic and manual)

  • Maximum Configurable Power in VA

    10000 VA

Conformance

Jump to...
  • Certifications

    CE
    EAC
    IRAM
    RCM
    VDE

  • Marking

    CE Mark

  • Standards

    EN/IEC 62040-1:2019/A11:2021
    EN/IEC 62040-2:2006/AC:2006
    EN/IEC 62040-2:2018

Environmental

Jump to...
  • Ambient Air Operation Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Relative Humidity

    0-95 % non-condensing

  • Operating Altitude

    0-10000' (0-3048m)

  • Ambient Air Temperature for Storage

    5 Degree F to 113 Degree F (-15 Degree C to 45 Degree C)

  • Storage Relative Humidity

    0-95 % non-condensing

  • Storage Altitude

    0.00-15240.00 m

  • Acoustic Level

    55 dBA

  • Heat Dissipation

    1947 Btu/h

  • IP Degree of Protection

    IP20

Batteries & Runtime

Jump to...
  • Battery Recharge Time

    1.5 h

  • Number of Battery Replacement Quantity

    2

  • Battery Voltage

    +/- 192 V (split battery referenced to neutral)

  • Battery Charger Power

    876 W rated

  • Battery Power in VAH

    1805 VAh runtime

  • Battery Life

    3-5 year(s)

  • Replacement Battery

    APCRBC140

  • Battery Option

    SRT192RMBP2 1 3610 VAh
    SRT192RMBP2 2 5415 VAh
    SRT192RMBP2 3 7220 VAh
    SRT192RMBP2 4 9025 VAh
    SRT192RMBP2 5 10830 VAh
    SRT192RMBP2 6 12635 VAh
    SRT192RMBP2 8 16245 VAh
    SRT192RMBP2 10 19855 VAh

  • Extended Runtime

    1

  • Battery Info

    Required, included

  • Battery Material

    Lead Acid

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Communications & Management

Jump to...
  • Free Slots

    1

  • Alarm

    Audible and visible alarms : prioritized by severity

  • Emergency Power Off

    Yes

Surge Protection and Filtering

Jump to...
  • Surge Energy Rate

    480 J

Physical

Jump to...
  • Mounting Location

    Front

  • Mounting Preference

    No preference

  • Mounting Mode

    Rack-mounted

  • USB Compatible

    Yes

  • Dimensions (H x W x D)

    10.35 x 17 x 28.15" (26.3 x 43.2 x 71.5cm)

  • Weight

    246.52 lbs (111.82kg)

About American Power Conversion (APC) Smart-UPS

It is a high-performance member of the Smart-UPS On-Line series, offering true double-conversion on-line power protection in a high-density design. This 10000VA/10000W On-line pure sine wave UPS is engineered to provide scalable runtime, significantly reducing maintenance needs. Its versatile 6U rack/tower convertible SRT design is equipped with an Embedded Network Management Card, enabling efficient network-based UPS monitoring and management.

The UPS features an additional SmartSlot for enhanced connectivity options and supports PowerChute Network Shutdown for a smooth, unattended shutdown process. It is equipped with a hard wire 3-wire/5-wire input, six IEC 320 C13 outlets, four IEC 60320 C19 outlets, and three IEC jumper cables, offering a comprehensive range of power connection options.

Weighing in at 111.82kg, its compact dimensions of 432mm (depth) x 715mm (height) x 263mm (width) make it a suitable choice for various environments, including servers, voice/data networks, medical labs, and light industrial applications.

This UPS is compliant with CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE standards, ensuring its reliability and safety. It is meticulously designed for IT professionals and network administrators, offering a wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction. This Smart-UPS 10000VA 230V Rackmount/Tower Sinewave UPS is a robust solution for your power protection needs.

American Power Conversion (APC) Smart-UPS Features

  • High density, double-conversion on-line power protection
  • Provides scalable runtime while minimizing maintenance
  • It has an Embedded Network Management Card for network-based UPS monitoring and management

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Ensure uptime with this 10000VA APC Smart-UPS, perfect for critical server room equipment.
  • Reliable sine wave output keeps sensitive electronics running smoothly during power disruptions.
  • Get 3min 45s runtime at full load (10000W), allowing graceful shutdowns and preventing data loss.
  • This rackmount UPS has multiple outlets (6x C13, 4x C19) to power a variety of devices.
  • The internal bypass on this APC UPS ensures continuous power to connected loads during maintenance.
  • Manage power conditions remotely with the included Web/SNMP Management Card for your UPS.

What's in the box:

  • American Power Conversion (APC) Smart-UPS 10000VA 230V Rackmount/Tower Sinewave UPS (Black)
  • CD with Software
  • Documentation CD
  • Rack Mounting Hardware
  • Rack Mounting Brackets
  • Rack Mounting Support Rails
  • Temperature Probe
  • USB Cable
  • Web/SNMP Management Card
  • Installation Guide
  • American Power Conversion (APC) 3 Year Limited Warranty
