American Power Conversion (APC) APC Smart-UPS 700VA Uninterruptible Power Supply Specifications

  • Output Power Capacity

    450Watts / 750VA

  • Max Configurable Power

    450Watts / 750VA

  • Nominal Output Voltage

    120V

  • Output Voltage Distortion

    Less than 5% at full load

  • Output Frequency (sync to mains)

    47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

  • Topology

    Line Interactive

  • Waveform Type

    Sine wave

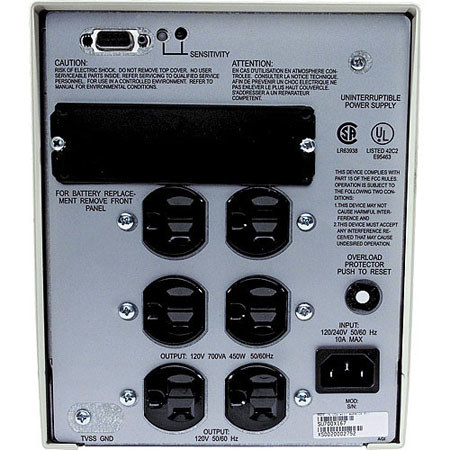

  • Output Connections

    (6) NEMA 5-15R

  • Nominal Input Voltage

    120V, 230V

  • Input Frequency

    50/60 Hz +/- 3 Hz (auto sensing)

  • Input Connections

    British BS1363A
    Italian CEI 23-16
    NEMA 5-15P
    Schuko CEE 7/7P

  • Cord Length

    6' (1.82m)

  • Input Voltage Range for Main Operations

    187 - 242 (220V), 92 - 147V

  • Battery Type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

  • Typical Recharge Time

    3 hour(s)

  • Replacement Battery

    RBC6

  • RBC Quantity

    1

  • Interface Port(s)

    DB-9 RS-232, SmartSlot

  • Available SmartSlot Interface Quantity

    1

  • Control panel

    LED status display with load and battery bar-graphs and On Line: On Battery: Replace Battery: and Overload Indicators

  • Audible Alarm

    Alarm when on battery: distinctive low battery alarm: configurable delays

  • Surge Energy Rating

    480 Joules

  • Filtering

    Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449

  • Operating Environment

    32 - 104deg.F (0 - 40deg.C)

  • Operating Relative Humidity

    0 - 95%

  • Operating Elevation

    0-10000ft (0-3000m)

  • Storage Temperature

    5 - 113deg.F (-15 - 45deg.C)

  • Storage Relative Humidity

    0 - 95%

  • Storage Elevation

    0-50000ft (0-15000m)

  • Audible Noise at 1m

    Surface of unit: 45.00 dBA

  • Online Thermal Dissipation

    135.00 BTU/hr

  • Regulatory Approvals

    CSA, FCC Part 15 Class A, UL 1778

  • Dimensions (HxWxD)

    8.50x6.70x17.30" (21.59x17.01x43.94cm)

  • Weight

    53.00lbs (24.04kg)

  • UPC Code

    731304015178

About American Power Conversion (APC) APC Smart-UPS 700VA Uninterruptible Power Supply

FEATURED REVIEWS

0

By 0

0

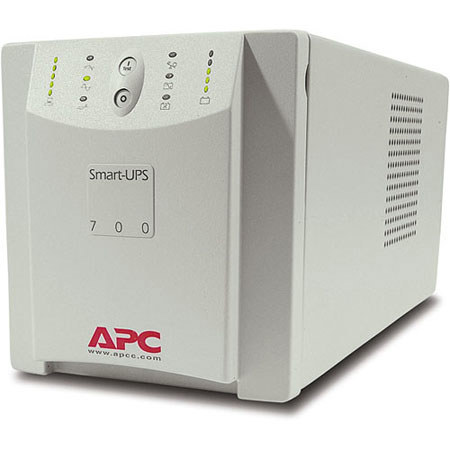

The APC Smart-UPS 700VA Uninterruptible Power Supply is a professional uninterruptible power supply designed to prevent blackouts, brownouts, sags and surges from reaching your valuable equipment. It filters small utility line fluctuations and isolates your equipment from danger by internally disconnecting it from the utility line. When disconnected from the utility line, power is provided continuously from its internal battery until normal or safe conditions return or the battery is fully discharged. This UPS is a tower model intended for standalone placement.

American Power Conversion (APC) APC Smart-UPS 700VA Uninterruptible Power Supply Features

  • Power Protection & Backup: Use this unit to protect your equipment from power surges, as well as ensure a continuous source of temporary backup power in case of emergencies
  • Tower Design: This is a tower unit that is designed for standalone use

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Tower Design: This is a tower unit that is designed for standalone use

What's in the box:

  • APC Smart-UPS 700VA Uninterruptible Power Supply
  • CD with Software
  • Smart UPS Signaling RS-232 Cable
  • USB Manual
  • APC 2 Years Warranty
