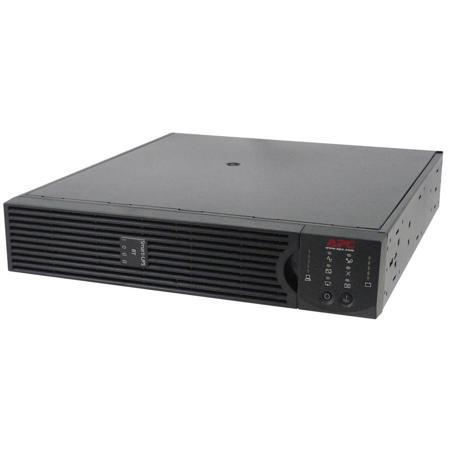

American Power Conversion (APC) RT 1000VA RM 230V Smart UPS

SKU: APCSURT1KRMX

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

American Power Conversion (APC) Smart UPS Specifications

  • Output Power Capacity

    700W/ 1000VA

  • Max Configurable Power

    700W/ 1000VA

  • Nominal Output Voltage

    230V

  • Output Voltage Note

    Configurable for 220: 230 or 240 nominal output voltage

  • Output Voltage Distortion

    Less than 3%

  • Output Frequency (sync to mains)

    50/60Hz +/- 3 Hz user adjustable +/- 0.1

  • Other Output Voltages

    220/240V

  • Crest Factor

    3:1

  • Topology

    Double Conversion Online

  • Waveform Type

    Sine wave

  • Output Connections

    6x IEC 320 C13
    2x IEC Jumpers

  • Bypass

    Built-in Bypass

  • Nominal Input Voltage

    230V

  • Input Frequency

    50/60Hz +/- 5Hz (auto sensing)

  • Input Connections

    IEC-320 C14

  • Input voltage

    Range for main operations: 160 - 280V
    Adjustable range for mains operation: 100 - 280V

  • Other Input Voltages

    220, 240V

  • Input Total Harmonic Distortion

    Less than 7% for full load

  • Battery Type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

  • Included Battery Modules

    1

  • Typical recharge time

    3 hours

  • Replacement Battery

    RBC31

  • RBC Quantity

    1

  • Extended Run Options

    APC Smart-UPS RT 1000VA RM 230V

  • Efficiency at 25% Load

    80.4%

  • Efficiency at 50% Load

    86.4%

  • Efficiency at 75% Load

    88.3%

  • Efficiency at 100% Load

    89.1%

  • Interface Ports

    DB-9 RS-232, SmartSlot

  • Available SmartSlot Interface Quantity

    1

  • Control panel

    LED status display with load and battery bar-graphs and On Line
    On Battery
    Replace Battery
    Overload and Bypass Indicators

  • Audible Alarm

    Alarm when on battery
    Distinctive low battery alarm
    Overload continuous tone alarm

  • Emergency Power Off (EPO)

    Optional

  • Surge energy rating

    420 Joules

  • Filtering

    Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449

  • Rack Height

    2U

  • Operating Environment

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Relative Humidity

    0 - 95% no%

  • Operating Elevation

    0-3000m / 0-9842.40'

  • Storage Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Storage Relative Humidity

    0 - 95% no%

  • Storage Elevation

    0-15000m / 0-49212.00'

  • Audible noise

    50.00 dBA at 1 meter from surface of unit

  • Online Thermal Dissipation

    324.00 BTU/hr

  • Protection Class

    IP 20

  • Regulatory Approvals

    C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE

  • RoHS

    Compliant

  • Dimensions (H x W x D)

    85 x 432 x 483mm / 3.35 x 17.01 x 19.02"

  • Weight

    23kg / 50.71lbs

About American Power Conversion (APC) Smart UPS

Availability
• Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault
• Scalable runtime: Allows additional run time to be quickly added as needed
• Intelligent battery management: Maximizes battery performance, life and reliability through intelligent, precision charging
• Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
• Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power
• Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature

Manageability
• Network manageable: Provides remote power management of the UPS over the network
• InfraStruxure Manager Compatible: Enables centralized management via the APC InfraStruxure Manager
• SmartSlot Customize UPS capabilities with management cards
• LED status indicators: Quickly understand unit and power status with visual indicators
• Serial connectivity: Provides management of the UPS via a serial port

Adaptability
• Plug-and-Play external batteries: Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS
• Rack/Tower convertible: Protects the initial investment in the UPS when migrating from tower to rack-mount environment
• Flash upgradeable firmware: Install maintenance releases of firmware remotely using FTP

Serviceability
• User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
• Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced
• Predicitive failure notification: Provides early-warning fault analysis ensuring proactive component replacement
• Disconnected battery notification: Warns when a battery is not available to provide backup power
• Audible alarms: Provides notification of changing utility power and UPS power conditions

Protection
• Frequency and voltage regulation: Gives higher application availability by correcting poor frequency and voltage conditions without using the battery
• Power conditioning: Protects connected loads from surges, spikes, lightning and other power disturbances
• Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling
• Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used
• Cold-start capable: Provides temporary battery power when the utility power is out
• Resettable circuit breaker: Easy recovery from overloads; no need to replace a fuse
• Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment

American Power Conversion (APC) Smart UPS Features

  • Automatic internal bypass: Supplies utility power to the connected loads
  • Scalable runtime: Allows additional run time to be quickly added as needed
  • Intelligent battery management: Maximizes battery performance, life and reliability
  • Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment

Key Features

  • Automatic internal bypass: Supplies utility power to the connected loads
  • Scalable runtime: Allows additional run time to be quickly added as needed
  • Intelligent battery management: Maximizes battery performance, life and reliability
  • Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment

What's in the box:

  • American Power Conversion (APC) RT 1000VA RM 230V Smart UPS
  • CD with Software
  • Rack Mounting Support Rails
  • Smart UPS Signaling RS-232 Cable
  • User Manual
  • American Power Conversion (APC) 2 Year Standard Warranty
