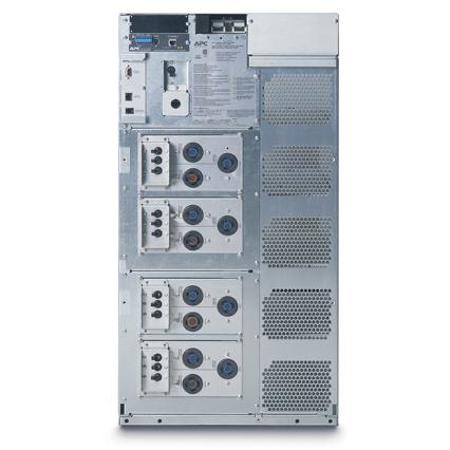

American Power Conversion (APC) Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-Mount

SKU: APCSYA16K16 MFR: SYA16K16RMP
Earn VIP Reward Points

Key Features

  • Get reliable power with a 16kVA APC UPS, perfect for maintaining critical systems.
  • This 12.8kW UPS offers scalable power, ensuring uptime during outages for your business.
  • Enjoy sine wave output for sensitive electronics, safeguarding them with this APC power supply.
  • With a <5% distortion rate, this UPS ensures clean power, protecting your valuable equipment.
  • Trust APC's UPS backup with a fast transfer time, preventing data loss during power failures.
  • This rack-mount UPS has multiple outlets, making it ideal for server rooms needing reliable power.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

American Power Conversion (APC) Symmetra LX 16kVA Scalable to 16kVA N+1 Specifications

  • Output Power Capacity

    12.8 kW / 16 kVA

  • Max Configurable Power

    12.8 kW / 16 kVA

  • Nominal Output Voltage

    120V, 208V

  • Output Voltage Note

    Configurable for 120/208 or 120/240 output voltage

  • Output Voltage Distortion

    Less than 5% at full load

  • Output Frequency (sync to mains)

    47 - 63 Hz

  • Other Output Voltages

    240

  • Crest Factor

    Up to 5:1

  • Topology

    Double Conversion Online

  • Waveform Type

    Sine wave

  • Output Connections

    Hard Wire 4-wire (2PH + N +G)
    4x NEMA L14-30R
    8x NEMA L5-20R

  • Bypass

    Internal Bypass (Automatic and Manual), Optional External Bypass

  • Nominal Input Voltage

    208V

  • Input Frequency

    45 - 65Hz (auto sensing)

  • Input Connections

    Hard Wire 4-wire (2PH+N+G)

  • Input voltage range for main operations

    96 - 138V (Line to Neutral)

  • Other Input Voltages

    240V

  • Input Total Harmonic Distortion

    Less than 7% for full load

  • Battery Type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

  • Included Battery Modules

    4

  • Typical recharge time

    3 hour(s)

  • Replacement Battery

    SYBT5

  • Extended Run Options

    APC Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-mount, 208/240V

  • Interface Port(s)

    DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot

  • Pre-Installed SmartSlot Cards

    AP9631

  • Control panel

    Multi-function LCD status and control console

  • Audible Alarm

    Audible and visible alarms prioritized by severity

  • Emergency Power Off (EPO)

    Yes

  • Operating Environment

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Relative Humidity

    0 - 95%

  • Operating Elevation

    0-3000m

  • Storage Temperature

    -15 to 45 deg. C / 5 to 113 deg. F

  • Storage Relative Humidity

    0 - 95%

  • Storage Elevation

    0-4500m

  • Audible noise at 1m from surface of unit

    62.00 dBA

  • Online Thermal Dissipation

    4995.00 BTU/hr

  • Regulatory Approvals

    CSA, FCC Part 15 Class A, OSHPD, UL 1778

  • Rack Height

    19U

  • Dimensions (H x W x D)

    836.00 x 472.00 x 688.00mm / 32.91 x 18.58 x 27.09"

  • Weight

    286.82kg / 632.32lbs

About American Power Conversion (APC) Symmetra LX 16kVA Scalable to 16kVA N+1

Why settle for less when you can have the best The Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-Mount Uninterruptible Power Supply (UPS) is a reliable, durable, and high-performance solution from the reputable brand, American Power Conversion (APC). Designed for advanced power backup, this robust UPS system ensures your essential electronic equipment remains operational during power disruptions.

The Symmetra LX 16kVA UPS features a removable input/output wiring tray for quick and easy installation and maintenance. Its modular design offers fast serviceability and reduced maintenance requirements, thanks to self-diagnosing, field-replaceable modules. This UPS system is configurable for N+1 internal redundancy, providing high availability through redundancy by supporting the connected load with one more Power Module than necessary.

The UPS system also boasts redundant Intelligence Modules, offering higher availability to the UPS connected loads by providing redundant communication paths to critical UPS functions. The hot-swappable intelligence modules, power modules, and batteries ensure clean, uninterrupted power to protected equipment during replacements, enhancing the system's overall reliability.

The Symmetra LX 16kVA UPS is scalable in power capacity and runtime, allowing for quick power upgrades within the same footprint and additional runtime as needed. The plug-and-play external batteries ensure clean, uninterrupted power when adding extra runtime to the UPS. The field-replaceable power distribution panel and programmable frequency ensure compatibility with different plug types and input frequencies.

Manageability is a breeze with this UPS system. It's network manageable, providing remote power management over the network, and is compatible with APC's InfraStruxure Manager for centralized management. The LCD display offers an alpha-numeric display of system parameters and alarms, while the intelligent battery management maximizes battery performance, life, and reliability through precision charging.

The Symmetra LX 16kVA UPS is designed for easy serviceability with predictive failure notification for early-warning fault analysis and automatic self-tests for early detection of a battery that needs replacing. User-replaceable intelligence modules, power modules, and batteries increase availability and reduce Mean Time to Repair (MTTR).

Protection is paramount with this UPS system. It offers power conditioning to protect connected loads from surges, spikes, lightning, and other power disturbances. Frequency and voltage regulation ensure higher application availability by correcting poor frequency and voltage conditions without using the battery. The UPS is also generator compatible, providing clean, uninterrupted power during extended power outages. It's cold-start capable, providing temporary battery power when utility power is out, and features resettable circuit breakers for quick recovery from overload events. Safety-agency approved, this UPS system ensures safe operation with the connected service provider equipment and within the specified environment.

American Power Conversion (APC) Symmetra LX 16kVA Scalable to 16kVA N+1 Features

  • High-capacity, scalable Uninterruptible Power Supply (UPS) from reputable brand APC
  • Features removable input/output wiring tray for easy installation and maintenance
  • Offers N+1 internal redundancy for high availability and reliability
  • Hot-swappable intelligence modules, power modules, and batteries for uninterrupted power
  • Scalable power capacity and runtime with plug-and-play external batteries
  • Provides power conditioning and frequency and voltage regulation for optimal equipment protection

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Get reliable power with a 16kVA APC UPS, perfect for maintaining critical systems.
  • This 12.8kW UPS offers scalable power, ensuring uptime during outages for your business.
  • Enjoy sine wave output for sensitive electronics, safeguarding them with this APC power supply.
  • With a <5% distortion rate, this UPS ensures clean power, protecting your valuable equipment.
  • Trust APC's UPS backup with a fast transfer time, preventing data loss during power failures.
  • This rack-mount UPS has multiple outlets, making it ideal for server rooms needing reliable power.

What's in the box:

  • American Power Conversion (APC) Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-Mount
  • CD with Software
  • Documentation CD
  • Installation Guide
  • Rack Mounting Support Rails
  • Temperature Probe
  • User Manual
  • Web/SNMP Management Card
  • American Power Conversion (APC) 2 Year Limited Warranty
