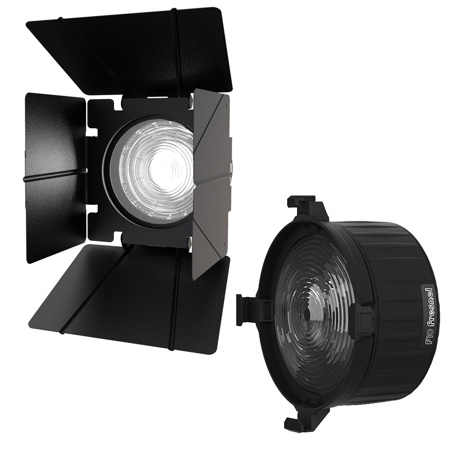

Aputure F10 10" Glass Fresnel Lens Modifier, Bowens Mount, Bundle with 10" Barndoors

SKU: APF10FRESNEA MFR: APA0172A30 A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Aputure F10 Fresnel
    Aputure F10 Fresnel
  • +
  • Aputure F10 Barn Doors
    Aputure F10 Barn Doors
  • +
  • Show more

Key Features

  • Craft stunning cinematic looks using this 10" Aputure Fresnel Lens Modifier.
  • Achieve precise light shaping with integrated barndoors for total control.
  • Durable build quality ensures your Bowens Mount lens stands up to daily use.
  • Enhance your photography lighting with beautiful, adjustable focus & output.
  • Portable design makes this lens modifier ideal for on-location photoshoots.
  • Get creative! This versatile lens & reflector is perfect for portraits & film.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-05-08T16:59:23

Rated 5 out of 5

Easy to use. and super value for money.

Boosted output significantly. Easy to use. and super value for money.

JONATHAN B.

2022-04-03T08:53:17

Rated 4 out of 5

Does what you need

Love my fresnel unit. It?s a bit heavy, but I can fit it into the case with the 600 unit. The barn doors arrive a little loose so just tighten them before you use them.

Daniel B.

2021-12-22T10:43:26

Rated 4 out of 5

Very good. Kinda heavy.

Very pretty light comes out of this. Seemingly well made. I do wish there was a yoke on this fresnel housing, rather than have to depend on the brake on the head itself. It seems like a lot to ask out of that brake and yoke when a yoke mounted to this would have been a more stable design.

MORGAN C.

2021-12-07T07:26:57

Rated 5 out of 5

a must have add on

exactly what i needed, the additional output and quality is amazing!

JOEL N.

2021-12-03T16:20:45

Rated 5 out of 5

Great!

Arrived fast. Worked great. Haven't tested this thing yet on a production. I look forward to the control it offers. One thing to note, it's huge! Be prepared to carry around a modifier that's the size of a snare drum.

LANCE M.

2021-12-01T07:22:33

Rated 5 out of 5

Must Have!

Must have item for the 600 Pro!

Alberto T.

2021-10-28T08:43:23

Rated 5 out of 5

Necessary addition for 600d

Fantastic piece of glass. Feels like a required part of a 600d kit.

TRAVIS W.

2021-07-15T07:56:22

Rated 5 out of 5

Great fresnel for that glamour work.

Great fresnal. I use them with bowens mount flashes with bowens mount extenders.

RICHARD M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aputure F10 Fresnel Specifications

General

General

Jump to...
  • Compatibility

    LS 600c Pro
    LS 1200d Pro
    LS 600c Pro II
    LS 600d Pro
    LS 600x Pro
    LS 600d

  • Type

    Lenses

  • Fits

    Bowens

  • Beam Angle

    15 Degree to 45 Degree

Physical Details

Jump to...
  • Lens Size

    10" (25.4cm)

  • Mount

    Bowens

  • Color

    Black

  • Dimensions

    Collapsed/Flood 45 Degree: 13.62 x 13.40 x 6.79" (346 x 340.46 x 172.48mm)
    Extended/Spot 15 Degree: 13.62 x 13.40 x 9.85" (346 x 340.46 x 250.35mm)
    Carrying Bag: 5.35 x 7.48" (390 x 190mm)

  • Weight

    8.48 lbs (3.85kg)
    Carrying Bag: 3.96 lbs (1.8kg)

  • UPC Codes

    192223281059, 6971842181322, 6971842181315

15 Accessories for Aputure F10 10" Glass Fresnel Lens Modifier, Bowens Mount, Bundle with 10" Barndoors

  • All Accessories (15)
  • Barndoors (1)
  • Filters & Gels (6)
  • Gaffer Tape (5)
  • Sandbags (3)

About Aputure F10 Fresnel

FEATURED REVIEWS

Easy to use. and super value for money.

By JONATHAN B.

Boosted output significantly. Easy to use. and super value for money.

a must have add on

By JOEL N.

exactly what i needed, the additional output and quality is amazing!

The First Ever
The Aputure F10 Fresnel is the first industry-standard 10-inch Fresnel made for modular Bowens Mount fixtures. With its wide 250mm (9.84in.) glass Fresnel, the F10 both immensely intensifies the output of a point-source LED, but also results in a quality of light lighting technicians will find similar to a Tungsten 5K or Studio 2K.

Intensely Bright
The F10 Fresnel functions at its best when paired with the Aputure LS 600d Pro, a 600W Daylight COB LED. Together, this combination eclipses Studio 2K Tungsten lights, and approaches the intensity of 5K Tungsten fixtures at flood. With a combined flood output of 11,440 lux and spot output of 29,300 lux at 3 meters, The 600d Pro and F10 Fresnel even compete on par with higher-powered HMIs.

Dual-Optic Design
The F10 Fresnel matches the unique design of the Fresnel 2X, utilizing a two-stage optical system to maximize light output. Utilizing a rear aspherical focusing element, the F10 Fresnel optimizes the output of an LS 600d Pro to fill the front Fresnel Element, resulting in up to 340% additional output in Flood mode.

Ergonomic Focusing
To ergonomically and precisely adjust its variable 15 Degree -45 Degree beam angle, the F10 Fresnel uses Aputure's helicoid focus design introduced in the Fresnel 2X. This seamless design requires no extra knobs or handles. Simply twist the lens ring, and adjust the spot/flood controls.

Minimized Light Leaks
Building on our experience from the Fresnel 2X, the F10 Fresnel uses an offset ventilation design in its heat-resistant body that allows for airflow while minimizing light leaks.

Impeccable Build
Despite its impressive 250mm (9.84in.) Fresnel diameter, the F10 Fresnel maintains a compact heat-resistant construction. The shell of the F10 can withstand the heat of the LS 600d Pro, and due to its collapsible, and aspherical focusing lens, it can stow away to a depth of 6.8 inches (172.5mm).

Drop-in Accessory Slot
Another of many "firsts", the F10 Fresnel is also the first Bowens Mount Fresnel to feature an industry-standard drop-in accessory slot. This heavy-duty accessory slot allows users to mount the F10 Barn Doors on the Fresnel for proper light shaping, and can even fit a 13-inch (330mm) scrim.

Durable Carrying Bag
Made to follow you onto any film set, the F10 Fresnel comes packed inside a heavy-duty carrying bag for easy travel.

Aputure F10 Fresnel Features

  • Up to 29,300+ Lux @ 3 Meters with the LS 600d Pro (15 Degree Spot)
  • 15 Degree to 45 Degree Spot-Flood Variable Beam Angle
  • 10" (250mm) Glass Fresnel Lens Increases Output Up to 10x
  • Dual Lens Optical System Optimizes Beam Angle For Maximum Light Output
  • Compatible with Bowens Mount LED Lights (LS 600d Pro, 300d II, 300x, 120d II, etc.)
  • Compatible with F10 Barn Doors With Die-Cast Metal Front Ring & Accessory Slot
  • Seamless, Ergonomic Helicoid Focusing Mechanism
  • Heat-Resistant Design to Withstand High-Wattage COB Lights
  • Included Durable Padded Fabric Carrying Bag

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Craft stunning cinematic looks using this 10" Aputure Fresnel Lens Modifier.
  • Achieve precise light shaping with integrated barndoors for total control.
  • Durable build quality ensures your Bowens Mount lens stands up to daily use.
  • Enhance your photography lighting with beautiful, adjustable focus & output.
  • Portable design makes this lens modifier ideal for on-location photoshoots.
  • Get creative! This versatile lens & reflector is perfect for portraits & film.

What's in the box:

  • Aputure F10 10" Glass Fresnel Lens Modifier
  • Carrying Bag
  • Aputure 1 Year Limited Warranty
  • Bundle Includes:
  • Aputure 10" Barndoors
