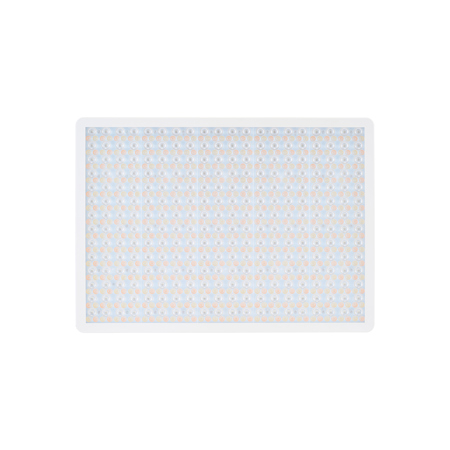

amaran Pano 120c 120W RGBWW LED Light Panel Kit, White

SKU: APPANO120CW MFR: MP01000329
Earn VIP Reward Points

Key Features

  • Achieve stunning color accuracy with this RGBWW LED light panel, boasting CRI 96 & TLCI 97 ratings.
  • Enjoy superior brightness control from 2,300K to 10,000K for perfect lighting in any situation.
  • Create soft, even light with the included softbox, ideal for professional video & photography.
  • The amaran Pano 120c light panel is highly portable; take your studio lighting on the go!
  • Use the Sidus Link app for remote control, adjusting settings from your smartphone or tablet.
  • This durable LED light panel features efficient fan cooling for long-lasting, reliable performance.
See More Product Details

Product Options

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

amaran Pano 120c Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    Light Panel

  • Photometrics

    2,300K:
    10,880 lux/1,011 fc @ 3.2'
    1,310 lux/122 fc @ 9.8'

    3,200K:
    11,870 lux/1,103 fc @ 3.2'
    1,435 lux/133 fc @ 9.8'

    4,300K:
    12,630 lux/1,173 fc @ 3.2'
    1,529 lux/142 fc @ 9.8'

    5,600K:
    13,260 lux/1,232 fc @ 3.2'
    1,610 lux/150 fc @ 9.8'

    6,500K:
    13,490 lux/1,253 fc @ 3.2'
    1,639 lux/152 fc @ 9.8'

    10,000K:
    12,920 lux/1,200 fc @ 3.2'
    1,570 lux/146 fc @ 9.8'

  • Color Accuracy Standard

    CRI: 96, TLCI: 97, TM-30 Rg: 101, TM-30 Rf: 93, SSI (Tungsten): 84, SSI (D56): 74

  • Color Temperature

    RGBWW

  • Color Temperature Range

    2,300K - 10,000K

  • Display

    TFT

  • Beam Angle

    No Accessory: 45 Degree
    Control Grid: 45 Degree

  • Built-In Flash

    No

  • Cooling System

    Fan Cooling

  • Dimming

    Built-In Dimmer (Continuous): 0 to 100%

  • Water Resistance/IP Rating

    No

Connectivity

Jump to...
  • Remote Control Type

    On-board, amaran App, Sidus Link

  • Mobile App Compatible

    amaran App, Sidus Link

Battery

Jump to...
  • Battery Connection

    Proprietary Rechargeable (Included)

  • Battery

    1x Proprietary Rechargeable (Included)

  • Power Source

    DC, USB-C PD

  • Power Consumption

    Max Power Output: 120W
    Max Power Consumption: 140W

  • AC Input Power

    AC 110V - 220V

  • DC Input Power

    Fixture: DC 24V, PD 28V

Mounting

Jump to...
  • Fixture Mount

    1x 1/4"-20 Male Screw

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Panel Size

    14 x 10" (35.5 x 25.6cm)

  • Dimensions

    Fixture: 14.0 x 10.0 x 1.4" (35.5 x 25.6 x 3.6cm)
    Softbox: 16.3 x 12.0 x 4.0" (41.5 x 30.5 x 10.3cm)
    Control Grid: 16.5 x 12.2 x 2.8" (42.0 x 31.4 x 7.0cm)
    Ace Lock Adapter: 3.5 x 3.0 x 1.0" (9.0 x 7.5 x 2.5cm)
    Carrying Case: 17.3 x 11.0 x 3.9" (44.0 x 28.0 x 10.0cm)
    AC Power Cable: 6.56' (2m)
    Adapter Cable: 8.20' (2.5m)

  • Weight

    Fixture: 3.5 lbs (1.6kg)
    Softbox: 12.34 oz (350g)
    Control Grid: 5.29 oz (150g)
    Ace Lock Adapter: 6.34 oz (180g)
    Carrying Case: 14.10 oz (400g)

  • UPC Code

    850065294605

2 Accessories for amaran Pano 120c 120W RGBWW LED Light Panel Kit, White

  • All Accessories (2)
  • Barndoors (1)
  • Light Stands & Accessories (1)

About amaran Pano 120c

Designed for on-the-go creators seeking powerful, high-quality output, the amaran Pano 120c Kit is a 120W full-color panel light that combines unmatched brightness with exceptional portability. As the most compact and portable 120W panel light, it delivers best-in-class brightness in a size comparable to a 15-inch laptop. With flexible USB-C PD power, amaran Ace E-Lock compatibility, and an all-in-one kit with essential lighting accessories, the amaran Pano 120c Kit is the ultimate travel ready lighting solution for any creative project.

The most compact and portable panel.
Comparable in size to a 15- inch laptop, the amaran Pano 120c delivers powerful lighting in an ultra slim, travel-friendly design - allowing you to pack light and move effortlessly between locations. And weighting only 1.6kg (3.5lbs), the amaran Pano 120c is easy to transport, mount, and position - perfect for outdoor mobile shoots, tight spaces, or on-location studio setups.

Best-in-class brightness.
Whether lighting larger studios or expansive outdoor spaces, the amaran Pano 120c's advanced optical design can output up to 13,490 lux of high-quality light at 1m (6,500K). Delivering brighter and more vibrant colors in both CCT and color modes, the amaran Pano 120c outshines competing portable panel lights.

Flexible, travel-friendly power with USB-C PD.
In addition to powering with the included 150W DC Power Adapter, the amaran Pano 120c is the first panel light to support USB-C PD, setting a new standard for reliable, portable power. Whether creating indoors or outdoors, power up with a range of PD power banks and chargers, eliminating the need for bulky NP-F or V-Mount batteries. For wireless setups, the amaran Ace E-Lock quick-release mount pairs with the amaran Peak power bank for secure, cable-free operation - delivering uninterrupted power at full capacity without voltage drops wherever you create.

All-in-one travel kit for creators.
The amaran Pano 120c Kit comes with essential light-shaping tools to create your best content anywhere - including a Softbox, Light Control Grid, Diffuser, amaran Ace Lock to Light Stand Adapter, Power Adapter, and Cable. All packed in a travel ready, protected Carrying Case, the Kit ensures you're always prepared.

Simplified, custom controls.
Fine-tune your lighting with an intuitive interface that is easier to navigate, adjust, and customize. Instantly adjust color temperature and brightness without complex menus in Quick Operation Mode, or recall go-to settings with custom shortcuts. Control the amaran Pano 120c via its user-friendly color screen and dial, or wirelessly manage multiple lights on the fly with the amaran app.

amaran Pano 120c Features

  • 120W output RGBWW full color panel light
  • Most compact & portable panel: Ultra-slim, laptop-sized form factor
  • Best-in-class light output in CCT and color modes: Up to 13,490 lux @ 1m (6,500K) to light up any space
  • All-in-one creator kit with essential tools: Softbox, Light Control Grid, Diffuser, amaran Ace Lock to Light Stand Adapter, Power Adapter, Cable, & protected Carrying Case
  • Compatible with USB-C PD 3.0 and above power banks and chargers for ultimate portable power flexibility
  • Wireless amaran Ace E-Lock: Pair with the amaran Peak power bank in one second for mobile setups with no cables required
  • 2,300K to 10,000K ultra-wide adjustable color temperature (1,800K to 20,000K CCT with CCT+ Mode)
  • Green-magenta adjustment for color-accurate skin tones
  • Recreate any color with 360 Degree full color control: HSI (hue, saturation, intensity) and RGB color modes
  • Instantly adjust light settings in Quick Operation Mode
  • Long press and double click Custom Shortcuts
  • 0-100% stepless brightness control
  • 12 lighting effects: Fireworks, Faulty Bulb, Lightning, TV, Pulsing, Strobe, Explosion, Fire, Paparazzi, Welding, Cop Car, & Party Lights
  • Adjustable Silent or Smart fan mode
  • Low fan noise: Max 28dBA at max. output
  • Included 150W DC Locking Power Adapter for secure connections
  • Quick mounting to light stand with included amaran Ace Lock to Light Stand Adapter or via top 1/4-20in screw mount
  • Lensed, optical design for enhanced output
  • Simplified, colored menu screen for easy operation
  • Light effortlessly with wireless amaran app control
  • Color accurate light: CRI: 96, TLCI: 97, TM-30 Rg: 101, TM-30 Rf: 93, SSI (Tungsten): 84, SSI (D56): 74

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Achieve stunning color accuracy with this RGBWW LED light panel, boasting CRI 96 & TLCI 97 ratings.
  • Enjoy superior brightness control from 2,300K to 10,000K for perfect lighting in any situation.
  • Create soft, even light with the included softbox, ideal for professional video & photography.
  • The amaran Pano 120c light panel is highly portable; take your studio lighting on the go!
  • Use the Sidus Link app for remote control, adjusting settings from your smartphone or tablet.
  • This durable LED light panel features efficient fan cooling for long-lasting, reliable performance.

What's in the box:

  • amaran Pano 120c 120W RGBWW LED Light Panel (White)
  • Softbox
  • Light Control Grid
  • Diffuser
  • Ace Lock to Light Stand Adapter
  • 150W DC Locking Power Adapter
  • AC Power Cable
  • Carrying Case
  • amaran 1 Year Limited Warranty
