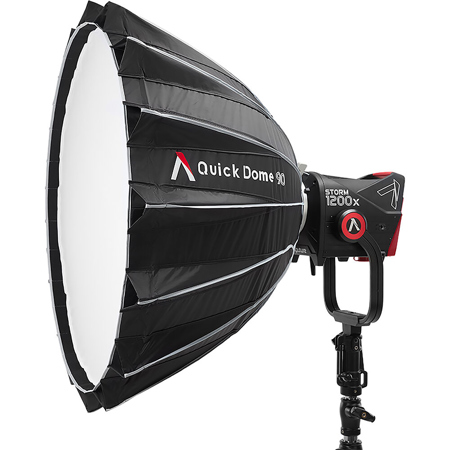

Aputure Quick Dome 90 90cm Circular Bowens Mount Softbox for STORM 700x LED Light

SKU: APQD90 MFR: AA07060382
Earn VIP Reward Points

Key Features

  • Achieve superior light quality with this 90cm circular softbox, perfect for professional photo and video shoots.
  • Experience effortless setup ease with its quick-open design, getting you ready to shoot in moments.
  • Enhance your creative lighting with included grids, offering precise control over light spill and direction.
  • Enjoy broad compatibility with Bowens S Mount, seamlessly integrating with your Aputure STORM LED lights.
  • Benefit from the durable fabric construction, ensuring longevity and consistent performance for all your projects.
  • Utilize the removable inner baffle for versatile light modification, from soft diffusion to crisp illumination.
See More Product Details
Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Aputure Quick Dome 90 Specifications

  • Material

    Fabric

  • Item Type

    Parabolic Softbox (16-Sided Hexadecagon Shape)

  • Interior Color

    Silver

  • Photometrics (2,500K)

    STORM 700x, 1 Stop Diff., No Grid:
    3m: 1,972 lux/183 fc
    5m: 715 lux/66 fc

    STORM 700x, 1 Stop Diff., w/Grid:
    3m: 1,657 lux/154 fc
    5m: 560 lux/52 fc

    STORM 700x, 2 Stop Diff., No Grid:
    3m: 1,206 lux/112 fc
    5m: 432 lux/40 fc

    STORM 700x, 2 Stop Diff., w/Grid:
    3m: 988 lux/92 fc
    5m: 337 lux/31 fc

  • Photometrics (10,000K)

    STORM 700x, 1 Stop Diff., No Grid:
    3m: 2,165 lux/201 fc
    5m: 783 lux/73 fc

    STORM 700x, 1 Stop Diff., w/Grid:
    3m: 1,815 lux/169 fc
    5m: 614 lux/57 fc

    STORM 700x, 2 Stop Diff., No Grid:
    3m: 1,317 lux/122 fc
    5m: 472 lux/44 fc

    STORM 700x, 2 Stop Diff., w/Grid:
    3m: 1,071 lux/100 fc
    5m: 369 lux/34 fc

  • Light Compatibility

    Includes Speed Ring with Bowens S Mount: For Aputure STORM / Aputure Electro Storm / Aputure Light Storm

  • Quick Open Type

    Foldable

  • Accepts Grids

    Yes (Included)

  • Removable Front Face

    Yes

  • Interior Baffle

    Yes, Removable

  • Light Loss/Gain

    1-Stop Loss (with Diffuser)
    2-Stop Loss (with Diffuser)

  • Dimensions (Dia. x H)

    35 x 23.6" (89 x 60cm) (Open)
    36.2 x 2.8 x 2.2" (92 x 7 x 5.7cm) (Closed)

  • Weight

    3.1 lbs (1.4kg)

  • UPC Code

    6977162455785

Designed For Use With:

  • Continuous Lights
  • LED Lights

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Aputure Quick Dome 90

The Aputure Quick Dome 90 is a 90cm circular Bowens mount softbox built for fast, reliable, and professional light shaping on set. Its quick-release latch mechanism on the speed ring allows users to tension all 16 steel support rods within seconds, streamlining both setup and teardown. The extended lateral side handle provides improved control and comfort when mounting or unmounting the softbox from the front of Bowens mount fixtures, while the snap-in removable Bowens mount chuck enables easy part replacements when necessary.

With a deep parabolic design and highly reflective silver interior, the Quick Dome 90 produces a uniform and powerful soft light output that maintains smooth luminance from center to edge. It includes two front diffusion cloths (1 and 2 stop), an internal baffle, and a 40 Degree fabric light control grid, allowing users to adjust diffusion strength and directionality for precise lighting control.

Designed with portability in mind, the Quick Dome 90 packs flat and compactly into its included carrying bag, making it simple to transport and store. With its durable steel support rods and universal Bowens mount, the Quick Dome 90 pairs seamlessly with STORM, Electro Storm, and Light Storm fixtures, offering filmmakers and photographers a dependable and efficient soft light solution for professional productions.

Aputure Quick Dome 90 Features

  • 90cm Bowens mount circular soft box with 16 steel support rods
  • Quick-release latch on speed ring allows users to bring all rods to tension in seconds
  • Extended lateral side handle allows easy handling and manipulation of Quick Dome during mounting and unmounting
  • Snap-in removable Bowens mount chuck allows for easy part replacements
  • Packs flat and compactly
  • Diffuse and soften hard point source lighting fixtures
  • Includes 2 front diffusion cloths (1 and 2 stop) and inner baffle
  • 40 Degree fabric light control grid included
  • Deep parabolic design for uniform light output distribution
  • Highly reflective silver inner lining for optimized light output
  • Includes carrying bag

Warranty Information

This product has a limited warranty of 12 months.

Compatibility

Designed for use with: Continuous Lights,LED Lights

Key Features

  • Achieve superior light quality with this 90cm circular softbox, perfect for professional photo and video shoots.
  • Experience effortless setup ease with its quick-open design, getting you ready to shoot in moments.
  • Enhance your creative lighting with included grids, offering precise control over light spill and direction.
  • Enjoy broad compatibility with Bowens S Mount, seamlessly integrating with your Aputure STORM LED lights.
  • Benefit from the durable fabric construction, ensuring longevity and consistent performance for all your projects.
  • Utilize the removable inner baffle for versatile light modification, from soft diffusion to crisp illumination.

What's in the box:

  • Aputure Quick Dome 90 90cm Circular Bowens Mount Softbox
  • 1 Stop Front Diffusion Cloth
  • 2 Stop Front Diffusion Cloth
  • 40 Degree Fabric Light Control Grid
  • Inner Baffle - Carrying Bag
  • Carrying Bag
  • Aputure 1 Year Limited Warranty
