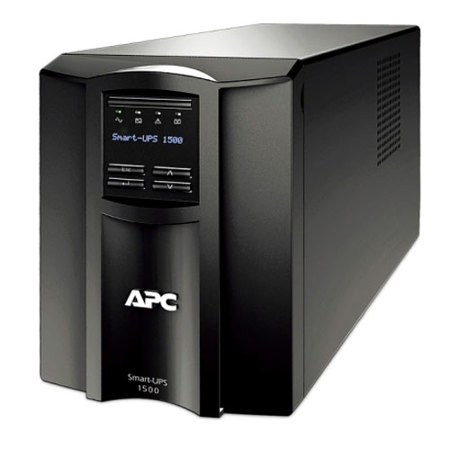

American Power Conversion (APC) SMT1500X448 Smart-UPS 1500VA UPS with LCD, Audible Alarm & AP9631 Installed, 120V, Black

SKU: APSMT1500X44

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

American Power Conversion (APC) SMT1500X448 Specifications

Output
  • Output power capacity

    1.0kWatts / 1.44kVA

  • Max Configurable Power (Watts)

    1.0kWatts / 1.44kVA

  • Nominal Output Voltage

    120V

  • Output Voltage Distortion

    Less than 5%

  • Output Frequency (sync to mains)

    50/60Hz +/- 3 Hz

  • Topology

    Line Interactive

  • Waveform type

    Sine wave

  • Output Connections

    (8) NEMA 5-15R (Battery Backup)

  • Transfer Time

    4ms typical : 8ms maximum

  • Nominal Input Voltage

    120V

  • Input frequency

    50/60 Hz +/- 3 Hz (auto sensing)

  • Input Connections

    NEMA 5-15P

  • Cord Length

    6ft (1.83meters)

  • Input voltage range for main operations

    82 - 144V

  • Input voltage range for mains operation

    75 - 154V (adjustable)

  • Number of Power Cords

    1

Batteries & Runtime

Jump to...
  • Battery type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

  • Typical recharge time

    3hour(s)

  • Replacement Battery

    RBC7

  • Expected Battery Life (years)

    3-5

  • RBC Quantity

    1

  • Battery Volt-Amp-Hour Capacity

    408

Communications & Management

Jump to...
  • Interface Port(s)

    RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB

  • Pre-Installed SmartSlot Cards

    AP9631

  • Control panel

    Multi-function LCD status and control console

  • Audible Alarm

    Alarm when on battery : distinctive low battery alarm : configurable delays

  • Emergency Power Off (EPO)

    Optional

Surge Protection and Filtering

Jump to...
  • Surge energy rating

    459Joules

  • Filtering

    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Operating Relative Humidity

    0 - 95 %

  • Operating Elevation

    0-10000ft (0-3000meters)

  • Storage Temperature

    5 to 113 Degree F (-15 to 45 Degree C)

  • Storage Relative Humidity

    0 - 95 %

  • Storage Elevation

    0-50000ft (0-15000meters)

  • Audible noise at 1m from surface of unit

    45.0dBA

  • Online thermal dissipation

    135.0BTU/hr

Conformance

Jump to...
  • Approvals

    cUL Listed, UL 1778

Sustainable Offer Status

Jump to...
  • RoHS

    Compliant

  • REACH

    REACH: Contains No SVHCs

  • Battery Directive

    Compliant

Physical

Jump to...
  • Color

    Black

  • Units per Pallet

    24

  • Dimensions (H x W x D)

    8.62 x 6.73 x 17.28" (21.9 x 17.1 x 43.9cm)

  • Weight

    53 lb (24.09kg)

  • UPC Code

    731304284314

About American Power Conversion (APC) SMT1500X448

SMT1500X448 Features

10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection

Cold-start capable
Provides temporary battery power when the utility power is out.

Command line interface
Offers simultaneous remote management access through Telnet and SSH

Customizable Input Contacts
Monitor conditions from external devices.

Customizable Output Relays
Control output from external devices via output relay(s).

Device Encryption
Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3

Energy meter
Provides actual kilowatt hours of usage for energy conscious users.

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency
Reduces utility costs, generates less heat.

Humidity monitoring
Changes in humidity are reported via the user interface or e-mail.

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

SmartSlot
Customize UPS capabilities with management cards.

Temperature monitoring
Changes in temperature are reported via the user interface or e-mail.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Special Configurations Features & Benefits

Serviceability

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Easy to install
Innovative design allows for fast, easy installation by almost anybody.

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Technical support
Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.

Manageability

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

SmartSlot
Customize UPS capabilities with management cards.

Serial connectivity
Provides management of the UPS via a serial port.

LED Indicators
Provide easy-to-read status of the unit and utility power conditions.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Availability

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

American Power Conversion (APC) SMT1500X448 Features

  • APC Smart-UPS 1500VA LCD 120V with AP9631 Installed
  • Reliable network power protection designed for deployment in retail and open access environments

Key Features

  • APC Smart-UPS 1500VA LCD 120V with AP9631 Installed
  • Reliable network power protection designed for deployment in retail and open access environments

What's in the box:

  • SMT1500X448 Smart-UPS 1500VA UPS with LCD
  • Audible Alarm & AP9631 Installed
  • Smart-UPS Signaling RS-232 Cable
  • USB Cable
  • Web/SNMP Management Card
  • CD with Software
  • APC 3 Year Limited Warranty On SMT1500X448 & 2 Year Limited Warranty On Battery
