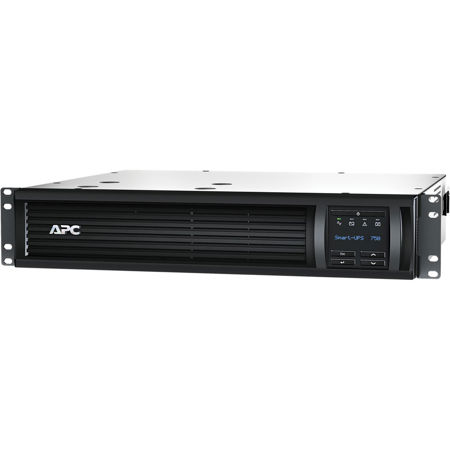

American Power Conversion (APC) SMT750RM2UC Smart-UPS 750VA RM 2U Battery Backup and Surge Protector with SmartConnect, 120V

SKU: APSMT75RM2UC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the function of the SmartConnect feature on the SMT750RM2UC Smart-UPS?

SmartConnect is an innovative feature that allows for remote monitoring of the UPS. It provides automatic notifications, firmware updates, and advanced support services.

What does the temperature-compensated battery charging feature do?

Temperature-compensated battery charging prolongs the battery life by regulating the charge voltage according to the battery temperature.

What is the advantage of the pure sine wave output on the SMT750RM2UC Smart-UPS?

The pure sine wave output simulates utility power, providing the highest degree of compatibility for active power factor corrected (PFC) servers and sensitive electronics.

What is the purpose of the Powerchute Business Edition Software included with the SMT750RM2UC Smart-UPS?

The Powerchute Business Edition Software is included for convenient monitoring and control of the UPS. It also offers safe operating system shutdown and innovative energy management capabilities.

What does the network-grade power conditioning feature do?

Network-grade power conditioning protects the connected loads from surges, spikes, lightning, and other power disturbances, ensuring your IT equipment and data remain safe and available.

Reviews about this item

Review Summary

2019-11-24T19:00:00

Rated 5 out of 5

Awesome Rackmount 750VA with SmartConnect!

As with all of APCs other UPS equipment this unit is solid reliable and provides a ton of features for the money. Smaller 750VA capacity but rackmount and provides the SmartConnect remote monitor software. Highly recommended if you don't have a lot to protect in your rack.

Splattered23

2019-06-09T20:00:00

Rated 5 out of 5

Great Value

Perfect unit for network equipment. Good bang for your buck with a lot of features.

ppb123

2017-10-13T20:00:00

Rated 5 out of 5

Smart Indeed

The UPS is easy to set up. SmartConnect is an attractive addition to the APC family.

CatWhisker

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

American Power Conversion (APC) SMT750RM2UC Specifications

Output
  • Output power capacity

    500Watts (750VA)

  • Max Configurable Power (Watts)

    500Watts (750VA)

  • Nominal Output Voltage

    120V

  • Output Voltage Distortion

    Less than 5%

  • Output Frequency (sync to mains)

    50/60Hz +/- 3 Hz

  • Other Output Voltages

    110, 127

  • Topology

    Line Interactive

  • Waveform type

    Sine wave

  • Output Connections

    (6) NEMA 5-15R (Battery Backup)

  • Transfer Time

    6ms typical : 10ms maximum

  • Nominal Input Voltage

    120V

  • Input frequency

    50/60 Hz +/- 3 Hz (auto sensing)

  • Input Connections

    NEMA L5-30P

  • Cord Length

    8' (2.44m)

  • Input voltage range for main operations

    82 - 144V

  • Input voltage adjustable range

    75 - 154V (for mains operation)

  • Number of Power Cords

    1

  • Other Input Voltages

    110, 127

Batteries & Runtime

Jump to...
  • Battery type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

  • Typical recharge time

    3 hours

  • Runtime at 100 Watts

    1 hour 5 minutes

  • Replacement Battery

    APCRBC123

  • Expected Battery Life (years)

    4 - 6 Years

  • RBC Quantity

    1

Communications & Management

Jump to...
  • Interface Ports

    RJ-45 Serial, SmartSlot, USB

  • Control panel

    Multi-function LCD status and control console

  • Audible Alarm

    Alarm when on battery : distinctive low battery alarm : configurable delays

  • Emergency Power Off (EPO)

    Yes

  • Available SmartSlot Interface Quantity

    1

Surge Protection and Filtering

Jump to...
  • Surge energy rating

    680Joules

  • Filtering

    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Environmental

Jump to...
  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Operating Relative Humidity

    0 - 95 %

  • Operating Elevation

    0-10000' (0-3000meters)

  • Storage Temperature

    -5 - 113 Degree F (-15 - 45 Degree C)

  • Storage Relative Humidity

    0 - 95 %

  • Storage Elevation

    0-50000' (0-15000meters)

  • Audible noise

    45.0dBA (at 1 meter from surface of unit)

  • Online thermal dissipation

    275.0BTU/hr

Conformance

Jump to...
  • Approvals

    CSA, CSA C22.2 No. 107.1, FCC Part 15 Class A, ICES-003, UL 1778

Sustainable Offer Status

Jump to...
  • RoHS

    Compliant

  • REACH

    REACH: Contains No SVHCs

Physical

Jump to...
  • Color

    Black

  • Dimensions (H x W x D)

    3.39 x 17 x 16.1" (8.6 x 43.2 x 40.9cm)

  • Weight

    39.02 lb (17.7kg)

About American Power Conversion (APC) SMT750RM2UC

Discover the SMT750RM2UC Smart-UPS 750VA RM 2U Battery Backup and Surge Protector with SmartConnect, a 120V power solution that offers intelligent and reliable protection for servers and networks. This unit is a trusted choice for maintaining critical operations, providing clean, network-grade power to safeguard your critical data and connections from power risks.

This Smart-UPS unit is designed to cater to a wide range of power needs, from home offices to business enterprises. It's a versatile solution, with models available to suit every application and budget. Whether you're a small business, a managed service provider, or an IT professional, this unit offers scalable runtime solutions ideal for servers, point-of-sale equipment, routers, switches, hubs, and more.

The SMT750RM2UC Smart-UPS is equipped with a cold-start capability, providing temporary battery power during utility power outages. It features an energy meter for energy-conscious users, displaying actual kilowatt hours of usage. The unit also boasts a green mode, a patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

This Smart-UPS unit provides pure sine wave output on battery, simulating utility power for the highest degree of compatibility for active PFC servers and sensitive electronics. It also features a single switched outlet group for discrete reboot of hung devices, sequenced on/off, and non-critical load shedding.

The SMT750RM2UC Smart-UPS also includes SmartConnect, an innovative, easy-to-use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. With SmartSlot, you can customize UPS capabilities with management cards. The unit also offers temperature-compensated battery charging, prolonging battery life by regulating the charge voltage according to battery temperature.

Manageability features include audible alarms, network manageability, serial connectivity, LED status indicators, and disconnected battery notification. The unit also offers USB connectivity for UPS management via a USB port.

The SMT750RM2UC Smart-UPS ensures availability with automatic self-test, automatic restart of loads after UPS shutdown, power conditioning, intelligent battery management, and Boost and Trim Automatic Voltage Regulation (AVR). It also offers adaptability with adjustable voltage-transfer points and adjustable voltage sensitivity.

Serviceability features include resettable circuit breakers, predictive failure notification, battery failure notification, hot-swappable batteries, and user-replaceable batteries.

With the SMT750RM2UC Smart-UPS, you can enjoy low operating and maintenance costs, high efficiency, proven reliability, and intelligent battery management. It's a smart investment for your power needs, offering network manageability via serial, USB, or optional ethernet, and includes Powerchute Business Edition Software for convenient monitoring and control.

Experience smarter productivity with the ability to tailor to your specific application needs. The intuitive LCD interface provides clear information and allows for local UPS configuration with easy-to-use navigation keys. Over 15 different programmable settings, including switched outlet group control, allow for application-specific settings, thresholds, and notifications.

Trust in the reliability of a leader with the SMT750RM2UC Smart-UPS. It provides pure sine wave output, recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved, you can deploy this Smart-UPS with confidence, knowing it meets or exceeds the industry's most rigorous standards.

Avoid costly power problems by keeping your IT equipment and data safe and available. The SMT750RM2UC Smart-UPS offers network-grade power conditioning to protect from damaging surges and disruptive noise. Its solid-state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Plus, it provides reliable battery back-up capacity to power through outages or gracefully shutdown systems.

American Power Conversion (APC) SMT750RM2UC Features

  • Cold-start capable
  • Energy meter
  • Green mode
  • High online efficiency
  • Intuitive LCD interface
  • Predictive replace battery date
  • Pure sine wave output on battery
  • Single switched outlet group
  • SmartConnect
  • SmartSlot
  • Temperature-compensated battery charging
  • Audible alarms
  • Network manageable
  • Serial connectivity
  • LED status indicators
  • Disconnected battery notification
  • USB connectivity
  • Automatic self-test
  • Automatic restart of loads after UPS shutdown
  • Power conditioning
  • Intelligent battery management
  • Boost and Trim Automatic Voltage Regulation (AVR)
  • Adjustable voltage-transfer points
  • Adjustable voltage sensitivity
  • Resettable circuit breakers
  • Predictive failure notification
  • Battery failure notification
  • Hot-swappable batteries
  • User-replaceable batteries
  • Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
  • Save time with easy and convenient remote accessibility
  • Smarter productivity with ability to tailor to your specific application needs
  • Peace of mind that comes with full equipment compatibility and reliability of a leader
  • Avoids costly power problems by keeping your IT equipment and data safe and available

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Intelligent and reliable power protection for servers, networks, and IT equipment
  • Scalable runtime solutions ideal for servers, routers, switches, hubs, and point-of-sale equipment
  • Features SmartConnect for remote monitoring, automatic notifications, and firmware updates
  • Provides pure sine wave output for compatibility with active PFC servers and sensitive electronics
  • Includes temperature-compensated battery charging to prolong battery life

What's in the box:

  • SMT750RM2UC Smart-UPS 750VA RM 2U Battery Backup and Surge Protector with SmartConnect
  • CD with Software
  • Documentation CD
  • Installation Guide
  • Rack Mounting Support Rails
  • Smart UPS Signalling RS-232 Cable
  • USB Cable
  • American Power Conversion (APC) 3 Year Limited Warranty
