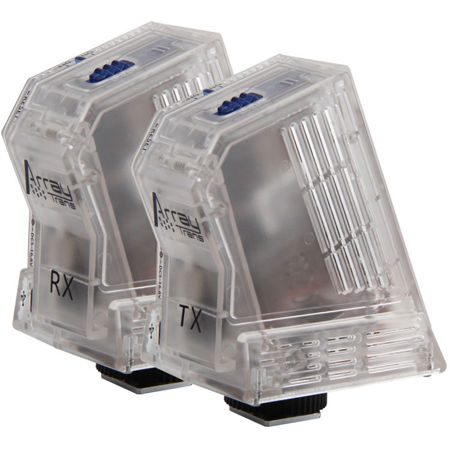

Aputure Array Trans Wireless Video Transceiver Set

SKU: APUVAT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2017-07-31T07:46:28

Rated 4 out of 5

Works well--to a certain extent

Let me start this review off by saying that this transmitter streams full HD video uncompressed beautifully. There is no visible degradation in the video quality, and when recording on the receiving end there is no evidence of loss in quality. I also used it in multiple situations where I thought the signal might get blocked, but it did not. That being said, there are certain distances and scenarios at which the signal either cuts out entirely or stutters a bit, which is not exactly preferable. For that reason I am giving it 4 stars. Otherwise, a great product.

Mihir P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aputure Array Trans Specifications

  • Working Voltage

    5 to 16.8 VDC

  • Working Current

    Receiver & Transmitter Units: 0.35 to 0.45 A, 5 VDC

  • Input Signal Compatibility

    1080p, 1080i, 720p, 576p, 576i, 480p, 480i

  • Battery Type

    Sony Li-ion battery NP-FM500H

  • Battery Voltage

    7.4 V

  • Battery Capacity

    1500 mAh

  • Battery Duration

    >4 h

  • Transmission Frequency

    60GHz

  • Interface

    HDMI (type A)
    Mini USB, for firmware upgrade
    DC power

  • Transmission Range

    Barrier-free environment 262' / 79.86m

  • Delay

    Zero latency (<1 ms)

  • Temperature

    Operation: 14 to 122 deg. F / -10 to 50 deg. C
    Storage: -4 to 140 deg. F / -20 to 60 deg. C

  • Humidity

    < 85%

  • Dimensions

    3.6 x 3.8 x 2.0" / 92.4 x 96.8 x 49.8 mm

  • UPC Code

    6947214408656

About Aputure Array Trans

Fixed Wireless Streaming Sports Event
Array Trans can be used in multi camera events where cables are hard to setup, it can easily wireless transform image and video only need a fixed position and 80m effective range. With several sets of Array Trans, you don't need to worry about signal interference due to its 60GHZ millimeter transmission technology, great moments can be streamed simultaneously and reliably on a large screen.

Wireless Live Stream on Big Screen
In the situations where a big screen is needed for displaying image from computers and cameras, Array Trans can help a lot via wireless transforming images to avoid complex and unreliable cables buildup. Let your images fly, surely, with zero latency!

Perfectly Support Cable Cam
Mount transmitter with gyro and receiver with cable cam, then you can start with cableway photography. The 60GHZ millimeter transmission technology let Array Trans has better image transform performance even than that of most cameras build-in.

Real Time Transmitting in Various Shooting Environment
Less than 2W extremely low power consumption and multi ways of power supply make it very convenient to use Array Trans. Moreover, Array Trans can be well used regardless of the shooting environment, whether is cliff or tree. Hence you can keep obstacles away from creation. Array Trans is ready, explore more and create more.

Easily setup with Cam crane
Array Trans can also benefit all TV, film, ads and wedding shooting. Without traditional complex cable buildup, it can be easily set up and wirelessly monitor in your shooting when using cam crane.

If you want this:
• 80m effective transmission ranges
• No obstacles in transmission
• Fixed shot

Array Trans can help you:
• Zero latency transmission
• Uncompressed and lossless image(60GHZ millimeter transmission technology)
• Support up to 1080p 60HZ

Aputure Array Trans Features

  • Up to 262' Line of Sight Transmission
  • Line of Sight Required
  • Includes One Transmitter & One Receiver
  • Supports Up to 1080p Video
  • Less than 1 ms Latency
  • Full-Sized HDMI Interface
  • Replaceable Battery and Coax Connector
  • Operates on 60 GHz Frequency Band
  • Integrated Cold Shoe Mounting Foot

Key Features

  • Up to 262' Line of Sight Transmission
  • Line of Sight Required
  • Includes One Transmitter & One Receiver
  • Supports Up to 1080p Video
  • Less than 1 ms Latency
  • Replaceable Battery and Coax Connector

What's in the box:

  • Aputure Transmitter
  • Receiver
  • HDMI Cable (Type A to A)
  • HDMI Cable (Type A to C)
  • HDMI Cable (Type A to D)
  • Power Plug
  • 2x Power Adapter Cable
  • 2x Li-Ion Battery
  • Battery Charger
  • Zippered Case
  • Plug
  • Manual
  • Aputure 1 Year Warranty
