PACKAGE INCLUDES:
Qty: 10
Note: 1 or more items are unavailable for immediate shipping
See Options
Need help? Ask our experts.
Review Summary
4
Drone with Camera
RTK
Thermal Camera, Camera Included
EVO II V3
Enterprise
Black/Orange
38 Minutes (no wind)
2.75 lbs (1.25kg)
Maximum Ascent Speed - 17.9 mph / 28.8 km/h
Maximum Descent Speed - 8.9 mph / 14.3 km/h
44.7 mph / 71.9 km/h
4.3 Miles / 7 km
33 min (no wind)
33 Degree (Ludicrous)
22 km (no wind)
120 Degree /s (Pitch)
Vertical: +/-0.1 m (when the visual positioning is working normally);
+/-0.5 m (when GPS works normally)
Horizontal: +/-0.3 m (when the visual positioning is working normally);
+/-1.5 m (when GPS works normally)
-4 Degree F to 104 Degree F (-20 Degree C to 40 Degree C)
8 GB
-4 Degree F to 104 Degree F (-20 Degree C to 40 Degree C)
with Remote Controller
3 hours (Max. Brightness)
4.5 hours (50% Brightness)
50 MP
4K
1/1.28" (0.8") CMOS; 50M effective pixels
FOV: 85 Degree
35mm format equivalent focal length: 23mm
Aperture: f/1.9
Focus range: 0.5m to infinity (with auto focus)
Video: 100-64000; Photo: 100-6400
Wide
1/8000 to 8 Seconds (Photo)
1/8000 to 1 Seconds (Video)
JPG (with irg file)
MOV / MP4 (Support H.264/H.265)
120 Mbps
FAT32/exFAT
1 to 16x
2-Axis Gimbal
3-axis stabilization
Tilt: -135 Degree to +45 Degree ;
Pan: -100 Degree to +100 Degree
Pitch (Tilt): 120 Degree (-90 to 30 Degree )
Yaw (Pan): 180 Degree (-90 to 90 Degree )
300 Degree /s
+/-0.005 Degree
Accurate measurement range: 0.5-18 m
Effective sensing speed: <12m/s
Viewing angle: Horizontal: 60 Degree , Vertical: 80 Degree
Accurate measurement range: 0.5-16 m
Effective sensing speed: <12m/s
Viewing angle: Horizontal: 60 Degree , Vertical: 80 Degree
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 65 Degree (Horizontal) / 50 Degree (Vertical)
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 50 Degree (Front-to-Back) / 65 Degree (Side-to-Side)
Accurate measurement range: 0.5-10 m
Effective sensing speed: <5m/s
Viewing angle: horizontal: 100 Degree , vertical: 80 Degree
Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)
2.4 G: 33 dBm (FCC), 20 dBm (CE, SRRC)
5.8 G: 33 dBm (FCC, SRRC), 14 dBm (CE)
FCC: 15 km
CE: 8 km (Unobstructed, Free of Interference)
7100 mAh
11.55 V
Lithium ion
82 Wh
3
Folded: 9 x 5.11 x 5.62" (230 x 130 x 143mm)
Unfolded: 17.99 x 21.96 x 5.62" (457 x 558 x 143mm)
192223281592, 889520204422, 795847509631, 192223227651, 017932334776, 619659188450
Models | SKU: AR102001517E MFR: 102001517 E $13,253.92 Temporarily On Backorder Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. | SKU: A102002198 MFR: 102002198 $12,599.00 Temporarily On Backorder Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. | SKU: AR102640TV2 MFR: 102000640T $5,999.00 In Stock |
---|---|---|---|
Features | Camera Included, Thermal Camera | Camera Included, IP Rated, Night Vision | Camera Included, Thermal Camera |
Kit Style | Included Value | Base | Base |
Configuration | Drone with Camera | Drone with Camera | Drone with Camera |
Edition | RTK | With Smart Controller | - |
Video Resolution | 4K | 4K | 4K |
Camera Still Resolution | 50 MP | 2 MP, 50 MP | 48 MP |
Maximum Flight Time | 38 min. | 42 min. | 40 min. |
FAA Registration (Non-Commercial Usage) | - | Required | Required |

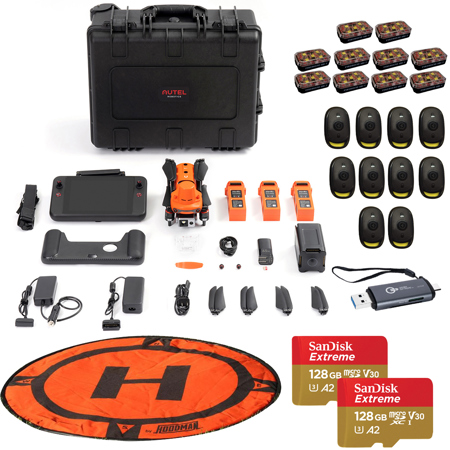

Bring your aerial photography and videography to new heights with the Evo II V3 Dual 640T RTK Rugged Thermal Drone Bundle. This advanced drone is equipped with a high-resolution 640x512 thermal imaging camera, featuring a 13mm focal length lens and a powerful 16x digital zoom. This makes it effortless to observe distant targets with exceptional clarity, thanks to the new image processing algorithm that enhances thermal imaging details.
The drone's DRI (Detection, Recognition, and Identification) ranges allow you to detect the presence of an object, recognize its type (such as a person, vehicle, or airplane), and identify specific details. This is further enhanced by multiple temperature measurement modes, including central, spot, and regional temperature measurements, as well as a temperature alarm and isotherm settings.
The Evo II V3 Dual 640T RTK Drone also features a 50MP ultra-sensitive camera with a special RYYB sensor and moonlight algorithm 2.0, providing excellent noise suppression in limited lighting conditions. This enhances the camera's ability to capture more details for better forensics and analysis. The drone's .8" RYYB CMOS offers up to 144%-233% more surface area compared to 1/2" or 1/2.3" competitors, ensuring maximum details in high contrast lighting conditions.
Never lose sight of your subjects with the drone's PDAF+CDAF autofocus system, which combines Phase Detection Auto Focus and Contrast Detection Auto Focus technology for fast and accurate tracking. The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely and without detection.
The Evo II V3 Dual 640T RTK Drone is upgraded with Autel's all-new SkyLink 2.0 Video Transmission technology, allowing you to fly farther with HD video transmission up to 15km. It supports tri-band communication and can automatically frequency hop for maximum anti-interference capability.
Equipped with 19 groups of sensors, including 12 visual sensors, the main camera, ultrasound, IMUs, and other sensors, this drone can build three-dimensional maps and plan paths in real time. It also offers practical and convenient features, such as rapid deployment, no forced updates, no fly zones, and more export freedoms.
The drone's industry-leading performance includes a maximum flight time of 38 minutes, a maximum transmission range of 9.3 miles (15km), a maximum wind resistance of 39 mph (17m/s), a maximum flight speed of 45 mph (20m/s), and a maximum lift capability of 2lbs (920g).
The Evo II V3 Dual 640T RTK Drone is compatible with Live Deck 2, which offers multiport streaming to monitors and Wi-Fi support for multiple smartphones. This makes it ideal for a range of applications, including line inspections, firefighting, security, search and rescue, chemical inspections, and solar inspections.
The bundle also includes a Smart Controller with a 2000nit super-bright screen, a 20-40 Degree C working temperature, a 4.5h ultra-long battery life, a customized OS system, an 8-core processor, and a supersharp, high brightness display. The controller supports 2.4GHz/5.8GHz/900MHz tri-band communication and can automatically frequency hop for maximum anti-interference capability. It also offers extensive battery life, sleek and portable design, premium material, rugged design, and multi-port output.
In summary, the Evo II V3 Dual 640T RTK Rugged Thermal Drone Bundle offers a comprehensive solution for professional aerial photography and videography, with advanced features and capabilities that set it apart from the competition.
