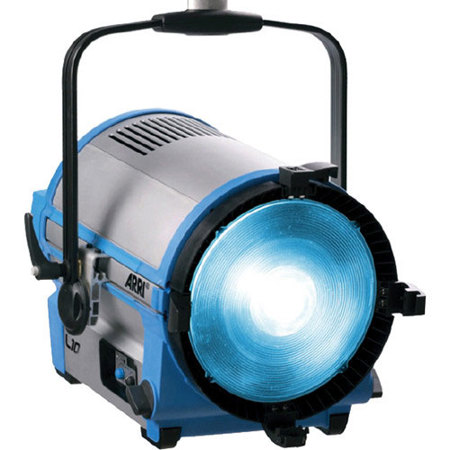

ARRI L10-C 10" LED Fresnel, Pole Operated, Blue/Silver
See all Arri items

ARRI L10-C 10" LED Fresnel, Pole Operated, 5' Cable with Bare Ends, Blue/Silver

SKU: AR510103C
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Arri SkyPanel S360-C: Picture 1 regular
ARRI SkyPanel S360-C LED Soft Light with Standard Diffusion Panel, Blue/Silver
$16,850.00
Arri SkyPanel S360-C w/Intnsfr: Picture 1 regular
ARRI SkyPanel S360-C LED Soft Light with Intensifier, Blue/Silver
$17,980.00
Arri SkyPanel S360-C Light Kit: Picture 1 regular
ARRI SkyPanel S360-C LED Light Kit
$26,580.00
Arri S30-C: Picture 1 regular
ARRI SkyPanel S30-C LED Softlight, Yoke, Edison powerCON, Blue/Silver W/ACC KIT
$7,285.05
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ARRI L10-C Specifications

  • Optical System

    Focusable Fresnel

  • Lens Diameter

    274mm / 10.79"

  • Beam Angle

    15 deg. - 50 deg. (Half Peak Angle)

  • Handling

    Pole Operation Option (Pan, Tilt and Focus)

  • Mounting

    28mm Spigot (Junior Pin)

  • Tilt Angle

    +/- 90 deg.

  • Power Supply Range

    100 - 250 V AC, 50 - 60Hz

  • Power Consumption

    400W (Nominal), 510W (Maximum)

  • Power Connection

    powerCON TRUE1 (Bare Ends)

  • White Light

    2800 K - 10000 K Continuously Variable Correlated Color Temperature

  • Colored Light

    Full RGB+W Color Gamut with Hue and Saturation Control

  • Color Temperature Tolerance

    +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)

  • Color Rendition

    CRI Average >95 (3200 K to 6500 K), TLCI Average >91

  • Green-Magenta Adjustment

    Continuously Adjustable (Full Minusgreen to Full Plusgreen)

  • Dimming

    0 - 100% Continuous

  • Control

    5-Pin DMX In and Through, On-Board Controller, Mini-USB

  • Remote Device Management (RDM)

    DMX Setup, Hour Counter and Standard RDM Commands

  • Mini-USB Interface

    DMX Setup, Fixture Status and Firmware Upgrade Through PC Software

  • Ambient Temperature Operation

    -20 to 45 deg. C / -4 to 113 deg. F

  • Protection Class

    IP 20

  • Estimated LED Lifetime (L70)

    50000 hours

  • Estimated Color Shift Over Lifetime

    < 200K

  • Certifications

    Pending CE, GS, FCC, cNRTL, CB

  • Weight

    47lbs / 21.32kg

About ARRI L10-C

Color temperature, tint and hue can be continuously adjusted from 2800 K to 10000 K, between full plus or minus green and RGBW colors. The L10 is the brightest and largest L-Series lamp head to date. Its substantial 10 inch Fresnel lens and powerful output allow for more distant fixture placement and the wrapping of light around objects in a natural and pleasing way. At more than twice the brightness of the L7, the L10 is also one of the brightest LED Fresnels on the market.Tuneability is the cornerstone of all ARRI LED fixtures and much like the L7 and L5, its smaller counterparts, the L10 is fully color tuneable. With the ability to adjust the color temperature from 2800 - 10000 K, as well as the green/magenta point, users have complete control over the color output of the fixture.

In a robust housing that combines aluminum with high-strength, fiberglass-reinforced thermoplastics, the L10 is designed to withstand the stresses of diverse professional environments, from motion picture sets to television studios and everything in-between. This robust construction allows the L10 to live up to the benchmark of rugged durability set by other ARRI lighting fixtures.

Stand-Mount
versions include the following base configuration: 28mm Spigot (Junior Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.

Hanging
versions include the following base configuration: 28mm Spigot (Junior Pin), 1.5m (5') Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

Pole-Operated
versions include the following base configuration: Pole Operation for Pan, Tilt and Focus, 28mm Spigot (Junior Pin), 1.5m (5') Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

Additional Features
• Fully Tuneable from 2800 K - 10000 K
• Plus/Minusgreen correction
• Vibrant Color Selection (RGB+W Color Gamut)
• Hue and Saturation Control
• High Color Rendering
• Low Power Consumption (400 W Nominal)
• Fully Dimmable
• True Fresnel Lens Light Characteristics
• Onboard DMX In and Out
• RDM Implementation
• USB Mini Connection for Firmware Updates
• Available in Blue/Silver and Black
• Fan Mode Selection
• powerCON TRUE1 Power Connector
