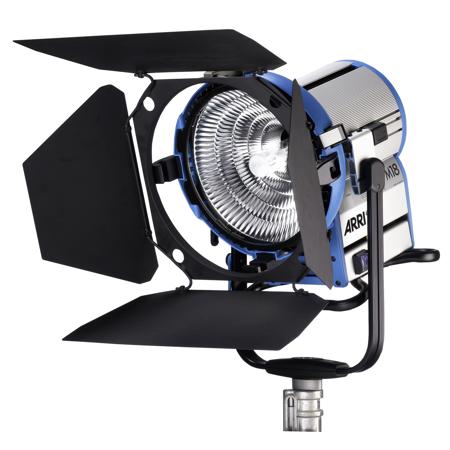

ARRI M-Series M18 Lamp Head Highspeed Set
See all Arri items

ARRI M-Series M18 Lamp Head Highspeed Set, Includes EB 1200/1800 Ballast with Bare Ends, 4-Leaf Barndoor, Head to Ballast Cable

SKU: AR518561
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Arri D12: Picture 1 regular
ARRI True Blue D12 HMI 1200W Fresnel Head
$1,637.00$999.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ARRI M18 Set Specifications

  • Lamphead Type

    Open Face with Facetted Reflector, 1800W

  • Reflector Type

    MAX reflector made of high purity aluminum

  • Lamp Type

    Metal Halide 1800 W/SE; Metal Halide 1200 W/SE

  • Power Consumption

    1800W / 1200W

  • Voltage Range

    100V / 140V

  • Lamp Base

    G38

  • Dimmability

    Yes, 50 - 100% via ARRI Ballast Unit

  • Cable Options

    VEAM, Schaltbau (GTV-Norm)

  • Correlated Color Temperature

    6000 K

  • Beam Angle

    20 - 60 deg. (with 1800W lamp)

  • Lens Diameter

    250mm / 9.84"

  • Accessory Diameter

    330mm / 12.99" (Scrim)

  • Barndoor Size

    344mm / 13.54"

  • Mounting

    Spigot 28mm / 1.10"

  • Protection Class

    I/IP 23

  • Certifications

    CE, CB, GS, cNRTL

  • Dimensions (H x W x L)

    567 x 387 x 388mm / 22.32 x 15.24 x 15.28"

  • Weight

    23.1lbs / 10.48kg

About ARRI M18 Set

The M18 combines MAX Technology, True Blue features and a new 1800 W lamp. The result is an exciting new class of HMI that can be powered from most domestic sockets. It is as small as a 1200 W PAR lamphead but with 70% higher light output. Adjustable from 20deg. to 60deg. beam angle, the M18 can also be used with 1200 W lamps.

ARRI M18 Set Features

  • Lens-less MAX Technology: Easy to use
  • New 1800 W lamp
  • Virtually the same size as a 1200 W lamp head but more than 70 % brighter
  • Runs from most domestic sockets world-wide
  • Uses existing 575/1200/1800 W cables
  • Can also be used with 1200 W lamps and ballasts
  • Cross Cooling allows safe operation at any tilt angle
  • Protection class IP 23
  • TRUE BLUE tilt lock holds even heavy Chimeras
  • Easy maintenance

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Lens-less MAX Technology: Easy to use
  • New 1800 W lamp
  • Virtually the same size as a 1200 W lamp head but more than 70 % brighter
  • Runs from most domestic sockets world-wide
  • Uses existing 575/1200/1800 W cables
  • Can also be used with 1200 W lamps and ballasts

What's in the box:

  • ARRI M-Series M18 Lamp Head
  • EB 1200/1800 Ballast with Bare Ends
  • 4-Leaf Barndoor
  • Head to Ballast Cable
  • ARRI Warranty
