ARRI L5-C Specifications

  • Optical System

    Focusable Fresnel

  • Lens Diameter

    137mm (5.39")

  • Beam Angle

    13deg. - 50deg. (Half Peak Angle)

  • Handling

    Adjustable Sliding Stirrup, High Strength Tilt Lock, Pole Operation Option (Pan, Tilt and Focus)

  • Mounting

    16mm/28mm Combo Pin (Baby 0.62"/Junior 1.12" Combo Pin)

  • Tilt Angle

    +/- 90deg.

  • Power Supply Range

    90 - 250 V AC, 50 - 60 Hz

  • Power Consumption

    115 W Nominal

  • Power Connection

    powerCON TRUE1 (Bare Ends / Schuko / Edison Cables Available)

  • Battery Connector

    4-Pin XLR Connector (Pin 1: Negative / Pin 4: Positive)

  • Battery DC Voltage Range

    22 - 36 V DC

  • White Light

    2,800K - 10,000K Continuously Variable Correlated Color Temperature

  • Colored Light (L5-C only)

    Full RGB+W Color Gamut with Hue and Saturation Control

  • Color Temperature Tolerance

    +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)

  • Color Rendition

    CRI 95 (3,200K to 6,500K)

  • Green-Magenta Adjustment

    Continuously Adjustable (Full Minusgreen to Full Plusgreen)

  • Dimming

    0 -100% Continuous

  • Control

    5-Pin DMX In and Through, On-Board Controller, Mini-USB

  • Remote Device Management (RDM)

    DMX Setup, Hour Counter and Standard RDM Commands

  • Mini-USB Interface

    DMX Setup, Fixture Status and Firmware Upgrade Through PC Software

  • Ambient Temperature Operation

    -20 - +45deg. C (-4 - +113deg. F)

  • Protection Class

    IP 20

  • Estimated LED Lifetime (L70)

    50,000 hours

  • Estimated Color Shift Over Lifetime

    < 200 K

  • Weight

    7.00kg (15.43lbs)

1 Accessories for ARRI L5-C Color LED Fresnel Pole Operated Light, 2800K-10000K White Light Color Temperature, 50,000Hrs Estimated LED Lifetime (L70), Black

  • All Accessories (1)
  • Barndoors (1)

About ARRI L5-C

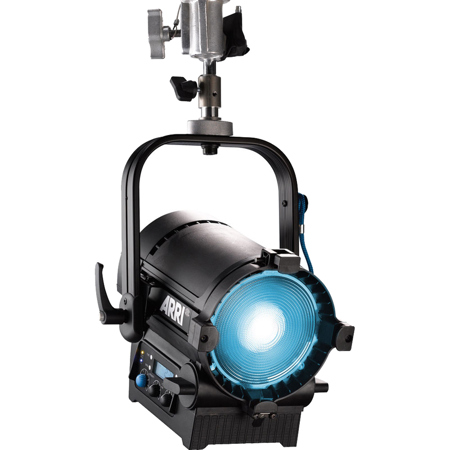

The Arri L5-C Color LED Fresnel Pole Operated Light (Black) has color temperature, tint and hue can be continuously adjusted from 2800 K to 10000K, between full plus or minus green and RGBW colors. The L5-C addition to the L-Series perfectly complements the L7, allowing for more mobile lighting and a wider range of power classes for television studios. Its compact size and low weight allow the L5-C to be rigged in tight places and hung from low ceilings. The L5-C is also ideal for cramped location shoots and interview setups. Low heat allows safer and more comfortable shooting conditions.

New features available on the L5-C include a PowerCON power connector and an on-board battery input that permits industry-standard batteries to power the L5-C without any sacrifice in terms of features or light output. The resulting increase in portability opens up whole new application areas, giving productions with the L5-C the tremendous freedom to move and work fast. The L5-C is approximately 45% brighter than a 300 watt tungsten Fresnel, but only consumes 115 watts. When compared to the L7, the L5-C is half the weight and size. The Pole-Operated versions include the following base configuration like Pole Operation for Pan, Tilt and Focus, 16mm/28mm Combo Pin (Baby 0.62"/Junior 1.12" Combo Pin), 1.5m (4.92') Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

ARRI L5-C Features

  • Fully Tuneable from 2,800 K - 10,000 K
  • Plus/Minusgreen correction
  • Vibrate Color Selection (RGB+W Color Gamut)
  • Hue and Saturation Control
  • High Color Rendering
  • Low Power Consumption (115 W Nominal)
  • Fully Dimmable
  • Lightweight and Compact
  • True Fresnel Lens Light Characteristics
  • On-Board Battery Connection (22 - 36V DC)
  • Onboard DMX In and Out
  • RDM Implementation
  • USB Mini Connection for Firmware Updates
  • powerCON TRUE1 Power Connector
  • Fan Mode Selection

Product Documents

User Manual

Key Features

  • Fully Tuneable from 2,800 K
  • Plus/Minusgreen correction
  • Vibrate Color Selection (RGB+W Color Gamut)
  • Hue & Saturation Control
  • High Color Rendering
  • Low Power Consumption (115 W Nominal)

What's in the box:

  • ARRI L5-C Color LED Fresnel Hanging Light
  • 16mm/28mm Combo Pin (Baby 0.62 "/Junior 1.12 " Combo Pin)
  • 1.5m (4.92') Cable with Bare Ends
  • ARRI 1 Year Warranty
