ARRI T1 Tungsten Location Fresnel 1000W 3-Light Kit, 220V

SKU: AR571876

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ARRI T1 Specifications

  • Rating

    1000 watts, 120-240VAC

  • Socket (Lampholder)

    G22 Bi Pin

  • Lens (Condenser)

    5.9" (150mm) low expansion borosilicate Fresnel lens

  • Reflector (Mirror)

    Spherical specular high purity aluminum

  • Mounting

    5/8" (16mm)Baby spigot

  • Yoke

    Tubular

  • Cable

    10' (3.1 m) Power Cable, switch, Edison plug

  • Focusing

    Front and rear mounted knobs

  • Dimensions

    16.8 x 11.4 x 8.8" (42.7 x 28.9 x 22.4 cm) including yoke and mount

  • Weight

    10.1 lbs (4.6 kg)

4 Accessories for ARRI T1 Tungsten Location Fresnel 1000W 3-Light Kit, 220V

  • All Accessories (4)
  • Snoots (1)
  • Bags & Cases (1)
  • Safety & Security Accessories (1)
  • Production Accessories (1)

About ARRI T1

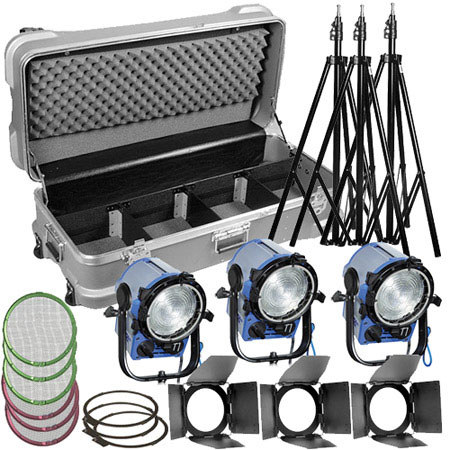

The Arri T1 Fresnel 1000 W 3-Light Kit (220 V) is a solid basic lighting kit. It delivers three T1 1000 W Fresnel lights (well known for its rugged construction, compact size, light weight and its smooth focusing mechanism), plus light stands, barndoors, filter frames, scrims (full single and full double) and lamps for each fixture, an accessory pack (containing ditty bag, clothes pins, leather gloves, bulb storage box and an extension cord with 3 outlets) and a heavy-duty rolling case for safely storing and transporting the whole kit.

The T1 Fresnel is an updated version of the Arri compact location Fresnel. It's truly compact, with reduced weight and maximum light output and it has more than 30 improvements for studio and location lighting. The cross-cooling system reduces lamp housing temperature by 25% and lens temperature by 17%. With special air channels built into the aluminum extrusion, a constant stream of air passes around the Fresnel lens and into the lamphead regardless of the tilt angle. When fitted with the included 1000 W bulb, this fixture will gives you a 2.8' (0.9 m) diameter beam of 409 fc from a distance of 20' (6.1 m) at full spot. At full flood (same distance) it will provide a 48 fc, 20.4' (6.2 m) diameter beam.

ARRI T1 Features

  • Stronger and Lighter: Many components now offer greater strength and resistance to corrosion
  • Stegmaier Connector: Connector and strain relief rotate to allow quick cable adjustment for hanging or stand mounting. Improved barndoors are stronger and less susceptible to bending
  • Redesigned Stirrup: Stirrup mounting slides and is adjustable to counterbalance accessories. Soft contour makes the Fresnel comfortable to carry. The stainless steel friction disc locks securely even when large front-mounted accessories are being used
  • Easy Maintenance: Fast, simple access to all internal components. Smooth lamp housing surfaces make cleaning a snap
  • Safe: Meets IP23 standard--suitable for indoor or outdoor use, providing a degree of protection against falling rain (up to a 60deg. angle from vertical). CE rated and independently assessed TUV certification

Product Documents

User Manual

Key Features

  • Stronger & Lighter
  • Stegmaier Connector
  • Redesigned Stirrup
  • Easy Maintenance
  • Safe: Meets IP23 standard--suitable

What's in the box:

  • ARRI T1 Location Fresnel (3)
  • 1000 Watts
  • Stand Mount 120-240VAC (3)
  • 4 Leaf Barndoor Set for ARRI T1 Fresnel (3)
  • Filter Frame for 1K Fresnel/ Compact HMI 575W (3)
  • Full Single Scrim for 1K Fresnel/ ARRIsun 5/ Compact HMI 575W
  • 7-3/4 (3)
  • Full Double Scrim for 1K Fresnel/ ARRIsun 5/Compact HMI 575W
  • EGT 1000W Lamp (3)
  • AS-2 Lightweight Stand 8.5' (3)
  • Accessory Pack for Fresnel Lights
  • 571197 Heavy-duty Location Case
  • ARRI 1 Year Warranty
