ARRI Softbank IV Plus 5 Light Kit, 220-240V AC, 2-150W Frensels, 1-300W Fresnel, 1-650W Fresnel, Accessory Pack

SKU: AR571891P

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ARRI Softbank IV Plus 5 Light Specifications

  • Rating

    150 Fresnel: 150W
    300 Fresnel: 300W
    650 Fresnel:650W
    ARRILITE 750 Plus: 750W

  • Socket (Lampholder)

    150, 300, 650 Fresnels: 150W, 300W and 650W: GY9.5
    ARRILITE 750 Plus: G 9.5

  • Lens (Condenser)

    150 Fresnel: 2" (50.8 mm)
    300 Fresnel: 3.2" (81.2 mm)
    650 Fresnel: 4.3" (110 mm)
    ARRILITE 750 Plus: Open face (not applicable)

  • Mounting

    5/8" (16 mm) stand mount

  • Dimensions

    Kit in case: approximately 40 x 19 x 13.5" (102 x 48 x 34 cm)

  • Weight

    88 lb (40 kg)

1 Accessories for ARRI Softbank IV Plus 5 Light Kit, 220-240V AC, 2-150W Frensels, 1-300W Fresnel, 1-650W Fresnel, Accessory Pack

  • All Accessories (1)
  • Production Accessories (1)

About ARRI Softbank IV Plus 5 Light

The Arri Softbank IV Plus 5 Light Kit includes barndoors, filter frames scrims, a softbox, clamps, light stands, bulbs, accessory kit and a heavy duty wheeled case. The Arri150W Fresnel is a compact, lightweight fixture with great performance, tough construction and a 2" (50.8 mm) Fresnel lens. Superior optical performance and ARRI's die cast aluminum housing make this the perfect small unit for hair light, edge light or eye light.

The Arri300W Plus Fresnel is designed to gather as much light as possible and direct it through the 3.2" (81.2 mm) low expansion, borosilicate Fresnel lens producing a soft, even field of light. The beam spread is 15 - 55deg. The 650W Fresnel features the same lens, reflector, housing and power cord as the 300W Fresnel. The beam angle in the flood position is 54deg. and a narrow 13deg. in the spot position.

The Arrilite 750 Plus from Arriis an enhanced version of the tried-and-true Arrilite open face line. Arri started with the basic design of the Arrilite 800 and optimized the reflector to increase output 21% using a 750W HPL lamp which employs a compact filament that concentrates and augments light while increasing efficiency. The result is almost double the output. A redesigned one-arm stirrup instead of a yoke facilitates greater movement while the dedicated accessory holder allows use of Chimera softboxes without a speed ring.

ARRI Softbank IV Plus 5 Light Features

  • Soft Light: The 24 x 32" Chimera Video Pro softbox provides soft, flattering light for talent and pleasing catch lights for reflective objects
  • Light Shapers: Use the barndoors and scrims to alter the shape and intensity of the lights. The included filter frames are ideal for color effects filters or diffusion
  • Light Spread: ARRI lights are renowned for even beam spread, high efficiency and superior spot-to flood ratio
  • Accessory Kit: Includes a bag, clothes pins, bulb storage case, 3-outlet extension cord and heat-resistant gloves
  • Light Stands: Offer lightweight, yet sturdy support to a height of 8.6' (2.6 m)
  • Wheeled, Heavy Duty Case: The case employs a hard plastic shell, aluminum trim and latches and a piano hinge. It features interior dividers and wheels for easy storage and transport

Product Documents

User Manual

Key Features

  • 24 x 32" Chimera Video Pro softbox provides soft, flattering light
  • Light Shapers
  • Light Spread: ARRI lights are renowned
  • Includes a bag, clothes pins, bulb storage case, 3-outlet extension cord and heat-resistant gloves
  • Offer lightweight, yet sturdy support to a height of 8.6' (2.6 m)
  • Wheeled, Heavy Duty Case

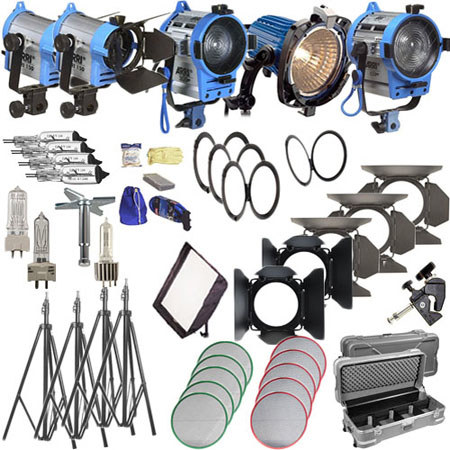

What's in the box:

  • ARRI A1248 Lamp (2)
  • 4-Leaf Barndoor (2)
  • Filter Frame (2)
  • A1248 Lamp (2)
  • 3 "Full Single/Double Scrim (2)
  • 300W Plus Tungsten Fresnel
  • CP81 Lamp
  • 4-Leaf Barndoor Set
  • Filter Frame
  • 5 " Full Single/Double Scrim
  • 650 Watt Plus Tungsten Fresnel
  • CP89 Lamp
  • Full Single/Double Scrim 6-5/8 "(2)
  • Super Clamp
  • AS-2 Stand (4)
  • 750W HPL Lamp
  • Chimera Video Pro Bank
  • Location Case
  • Accessory Pack
  • Ceiling Scissor Clamp
  • ARRI 1 Year Warranty
