ARRI Softbank IV Plus 5 Light Kit, 120V AC, 2-150W Frensels, 1- 300W Fresnel, 1- 650W Fresnel, 1-750 Plus Focusing Flood, Lamps, Barndoors, Scrims, Stands, 24x32" Softbox, Accessory Pack

SKU: AR571991P

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Joseph F : I bought this kit years ago when the flood was still 1000w, and the hardware is like new but the foam insert in the case has disintegrated. Where/how can I get replacement foam padding for the case? I do a lot with LED now, but I still love these hot lights. Thanks.ANDREW R : For tech support, troubleshooting, spares or repairs I'd recommend contacting the manufacturer.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ARRI Softbank IV Plus 5 Light Specifications

General

General

Jump to...
  • Lighting Type

    Fresnel Kit, Quartz Halogen Kit

  • Fixture Type

    Fresnels

  • Number of Heads/Lights

    5

  • Voltage

    120 V

Mounting

Jump to...
  • Mount

    5/8" / 16 mm stand mount

Physical Details

Jump to...
  • Dimensions

    Kit in Case: approximately 40 x 19 x 13.5" / 102 x 48 x 34 cm

  • Weight

    Approximately 88 lb / 40 kg

Miscellaneous

Jump to...
  • Base Models/Kit Models

    Multi-Packs

  • UPC Code

    192223013223

11 Accessories for ARRI Softbank IV Plus 5 Light Kit, 120V AC, 2-150W Frensels, 1- 300W Fresnel, 1- 650W Fresnel, 1-750 Plus Focusing Flood, Lamps, Barndoors, Scrims, Stands, 24x32" Softbox, Accessory Pack

  • All Accessories (11)
  • Snoots (1)
  • Flashtubes & Lamps (1)
  • Production Accessories (1)
  • Filters (1)
  • Bags & Cases (1)
  • Light And Light Accessories (4)
  • Diffuser (1)
  • Light Meters (1)

About ARRI Softbank IV Plus 5 Light

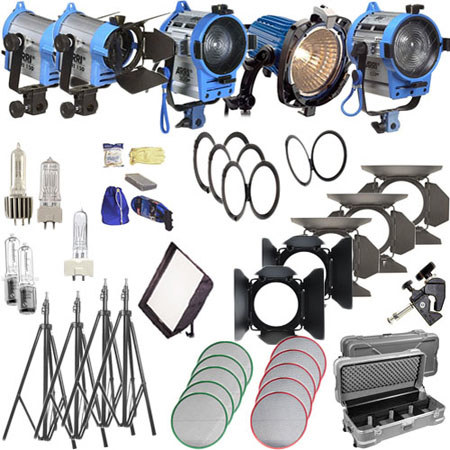

Why settle for less when you can have the best lighting experience with the ARRI Softbank IV Plus 5 Light Kit? This comprehensive lighting kit is designed for professionals who demand high-quality, versatile lighting solutions for their projects. It includes a variety of Fresnel lights, barndoors, filter frames, scrims, a softbox, clamps, light stands, bulbs, and an accessory kit, all packed in a heavy-duty wheeled case for easy transportation.

The kit features two 150W Fresnel lights, each equipped with a 2" (50.8 mm) Fresnel lens. These compact and lightweight fixtures are known for their superior optical performance and robust construction, making them ideal for creating hair light, edge light, or eye light effects.

The ARRI 300W Plus Fresnel light in the kit is designed to maximize light collection and direction. It features a 3.2" (81.2 mm) low expansion, borosilicate Fresnel lens that produces a soft, even field of light with a beam spread of 15 - 55 degrees.

The 650W Fresnel light shares the same lens, reflector, housing, and power cord as the 300W Fresnel. It offers a wide beam angle in the flood position of 54 degrees and a narrow 13 degrees in the spot position.

The ARRILITE 750 Plus is an enhanced version of the ARRILITE open face line. It uses a 750W HPL lamp with a compact filament that concentrates and augments light while increasing efficiency, almost doubling the output. A redesigned one-arm stirrup allows for greater movement, and the dedicated accessory holder enables the use of Chimera softboxes without a speed ring.

The ARRI Softbank IV Plus 5 Light Kit also includes an array of accessories such as four leaf barndoor sets, filter frames, full single and double scrims for different Fresnel lights, super clamp with 5/8" stud, lightweight stands, and a Chimera Video Pro Plus 1 Bank (Small). The accessory pack for Fresnel lights and a ceiling scissor clamp with 5/8" stud further enhance the versatility of this kit.

In conclusion, the ARRI Softbank IV Plus 5 Light Kit is a comprehensive, professional-grade lighting solution that offers versatility, superior performance, and ease of use for all your lighting needs.

ARRI Softbank IV Plus 5 Light Features

  • Soft Light: The 24 x 32" Chimera Video Pro softbox provides soft, flattering light for talent and pleasing catch lights for reflective objects
  • Light Shapers: Use the barndoors and scrims to alter the shape and intensity of the lights. The included filter frames are ideal for color effects filters or diffusion
  • Light Spread: ARRI lights are renowned for even beam spread, high efficiency and superior spot-to flood ratio
  • Accessory Kit: Includes a bag, clothes pins, bulb storage case, 3-outlet extension cord and heat-resistant gloves
  • Light Stands: Offer lightweight, yet sturdy support to a height of 8.6' (2.6 m)
  • Wheeled, Heavy Duty Case: The case employs a hard plastic shell, aluminum trim and latches and a piano hinge. It features interior dividers and wheels for easy storage and transport

Product Documents

User Manual

Key Features

  • Comprehensive professional lighting kit with Fresnel lights, barndoors, scrims, and more
  • Features two 150W Fresnel lights with a 2" (50.8 mm) lens for superior optical performance
  • Includes an ARRI 300W Plus Fresnel light designed for maximum light collection and direction
  • Enhanced ARRILITE 750 Plus light with a 750W HPL lamp for concentrated and augmented light output
  • Packed in a heavy-duty wheeled case for easy transportation and storage

What's in the box:

  • See Overview for Full Item Includes
