Arturia AudioFuse Studio Specifications

Interface

Interface

Jump to...
  • Channels of I/O

    18 Inputs / 20 Outputs at 192 kHz

  • Max Sample Rate/Resolution

    192 kHz / 24-Bit

Connectivity

Jump to...
  • Host Connection

    USB Type-C (USB 2.0)

  • Analog I/O

    4 x Combo XLR-1/4" TRS Input
    2 x RCA Line Input
    4 x 1/4" TRS Input
    4 x 1/4" TRS Insert In/Out
    4 x 1/4" TRS Monitor Output
    2 x 1/4" TRS Headphone Output
    2 x 1/8" / 3.5 mm TRS Headphone Output

  • Phantom Power

    +48 V (Selectable on Individual Inputs)

  • Digital I/O

    4 x TOSLINK / ADAT (I/O) In/Out
    2 x RCA Coaxial / S/PDIF (I/O, Word Clock) In/Out

  • MIDI I/O

    1 x 5-Pin MIDI In (On Included Breakout Cable)
    1 x 5-Pin MIDI Out (On Included Breakout Cable)

  • Wireless Connectivity

    Bluetooth

Performance

Jump to...
  • Frequency Response

    Mic/Line/Hi-Z Inputs:
    20 Hz to 20 kHz +/-0.8 dB

  • Gain Range

    Line/Hi-Z Inputs:
    -15 dB to +36 dB

    Mic Inputs:
    3 dB to 76 dB

  • Max Input Level

    Line Inputs:
    +24 dBu

    Mic Inputs:
    +11 dBu

    Hi-Z Inputs:
    +18 dBu

    Insert Inputs:
    +18 dBu

  • Max Output Level

    Insert Outputs:
    +18 dBu

    Outputs:
    +24 dBu

    Headphone Outputs:
    +10 dBu

  • Dynamic Range

    Line Inputs:
    117 dBA

    Hi-Z Inputs:
    117 dBA

    Headphone Out:
    102 dBA

  • Impedance

    Line Inputs:
    20 kOhm (Symmetric)
    10 kOhm (Asymmetric)

    Mic Inputs:
    3.4 kOhm (Mic Level)

    Hi-Z Inputs:
    1.1 MOhm

    Aux Inputs:
    20 kOhms (Symmetric)
    10 kOhms (Asymmetric)

    Line Outputs:
    120 Ohms (Balanced)

    Headphone Outputs:
    33 Ohm

  • THD+N

    Line Inputs:
    106 dBA

    Mic Inputs:
    104 dBA

    Hi-Z Inputs:
    104 dBA

    Outputs:
    104 dBA

    Headphone Outputs:
    87 dBA

  • EIN

    Mic Inputs:
    129.5 dBu

Digital Audio

Jump to...
  • Sample Rates

    Up to 192 kHz (AD/DA Conversion)

  • Bit Depth

    Up to 24-Bit (AD/DA Conversion)

  • Sync Sources

    ADAT, S/PDIF

Compatibility

Jump to...
  • Processor Requirement

    Mac:
    Intel

    PC:
    Intel

  • RAM Requirements

    4 GB

  • Storage Requirements

    1 GB

  • Power Requirements

    AC/DC Power Adapter (Included)

Physical

Jump to...
  • Dimensions

    10.4 x 6.3 x 2.8" (264.16 x 160.02 x 71.12mm)

  • UPC Code

    3760033531465

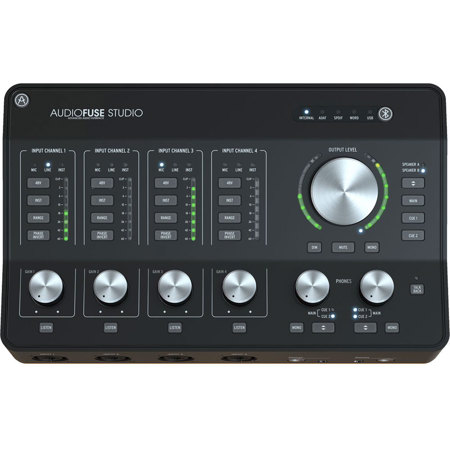

About Arturia AudioFuse Studio

For the discerning audio professional seeking an advanced and sophisticated desktop audio interface, the Arturia AudioFuse Studio stands out as a high-quality, professional-grade solution. This innovative 18-in, 20-out interface is designed to elevate your studio's capabilities, offering unparalleled sound quality and a focus on enhancing your creative workflow.

The AudioFuse Studio is the ultimate desktop audio interface, boasting four world-class Discrete Pro preamps that ensure pristine audio capture. Its incredible connectivity options cater to a wide array of devices and applications, with inputs and outputs including 1/4" phone, 1/8" mini phone, Bluetooth wireless, fiber optic, RCA, USB, USB-C, and XLR. This versatility is one of the key reasons why professionals might choose the AudioFuse Studio over alternative interfaces.

With support for high-resolution 192kHz recording, the AudioFuse Studio captures and processes audio with exceptional clarity, surpassing many competing products in audio fidelity. This makes it an ideal choice for recording and producing music at the highest quality, ensuring that every subtle nuance of your audio is revealed.

The interface's intuitive design features a one-button, one-function approach, streamlining your studio experience and allowing you to work efficiently. Whether you're tracking, mixing, or re-amping guitars, the AudioFuse Studio adapts to your needs. Bluetooth streaming capabilities with the best codec available mean you can easily integrate mobile devices into your workflow, enhancing the way you make music.

The AudioFuse Studio is not just about inputs and outputs; it's about reliability and performance. With superb preamps, rock-solid stability, low latency, and a robust build, it's an interface you can trust in the most demanding studio sessions. The super-low Equivalent Input Noise (EIN) and significant 72dB input gain cater to even the most sensitive microphones, ensuring that your recordings are captured with precision.

Moreover, the interface includes a host of "just in case" features, such as a built-in phono preamp for vinyl sampling and comprehensive connectivity options like USB-C, ADAT, MIDI, and Word Clock. The dedicated re-amping output allows for seamless integration with your guitar and bass recordings, providing the flexibility to refine your sound post-recording.

The AudioFuse Studio also comes with the AudioFuse Creative Suite, an ever-evolving collection of software effects and instruments that add unique character to your music. From the TridA Pre's ultra-rare Soho preamp sound to the V76 Pre's "White Album" tone, this suite of legendary effects and synth sounds is a treasure trove for creative exploration.

In summary, the AudioFuse Studio is not just an interface; it's a future-proof investment in your music, designed to let you hear, record, and mix with a level of clarity and quality that will truly transform your audio experience.

Arturia AudioFuse Studio Features

  • 18 inputs, 20 outputs channels
  • 4 mic/instrument/line preamps with DiscretePRO technology
  • 4 additional line inputs, with inputs 5-6 commutable to Phono
  • 4 analog inserts on channel 1-4
  • Bluetooth audio receiver supporting aptX and AAC
  • 2 pairs of speaker analog outputs on balanced TRS Jack
  • 2 independent stereo headphones outputs, on both 6.35 and 3.5mm TRS.
  • 2 independent analog line outputs with reamp capability (instrument level output)
  • Complete monitoring section with individual level control for speakers and phones
  • Direct monitoring ultra-low latency internal mixers
  • 8 digital ADAT inputs/outputs up to 96kHz
  • S/PDIF inputs/outputs or Word clock input, output/thru on Cinch RCA
  • DiscretePRO Individual audio performance certificate delivered with each unit.
  • 24-bit latest generation AD/DA converters at up to 192kHz sampling rate.
  • USB-C interface compatible with PC & Mac, fully USB 2.0 compatible
  • Comes with AudioFuse Creative Suite
  • Robust metal desktop chassis

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Advanced 18-in, 20-out audio interface with high-resolution 192kHz recording capability
  • Includes four world-class Discrete Pro preamps for pristine audio capture
  • One-button, one-function interface for efficient studio workflow
  • Built-in phono preamp for vinyl sampling and dedicated re-amping output for guitar and bass
  • Comes with the AudioFuse Creative Suite, an evolving collection of software effects & instruments

What's in the box:

  • AudioFuse Studio 18 In x 20 Out Audio Interface with Bluetooth
  • 2x 3.5mm to MIDI DIN Adapters
  • Power Adapter
  • Arturia 1 Year Limited Warranty
