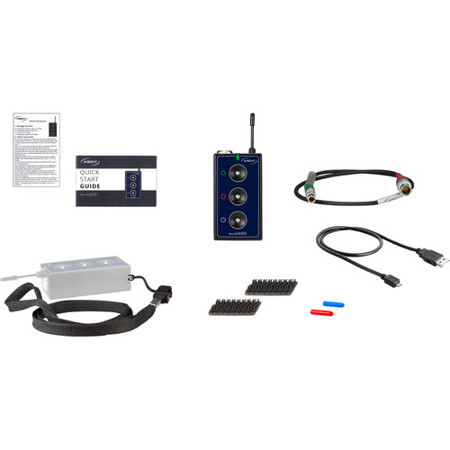

Ambient Recording NanoLockit Pro Kit Red for Epic, Weapon, Helix, Monstro, DSMC 1 & 2 (Excluding Redvolt)

The small, wireless and easy-to-use timecode generator & Transceiver
The Ambient Lockit is the market leading portable, timecode and sync generator worldwide. The NanoLockit is the latest and smallest member of the Lockit Family.

The NanoLockit is designed to be the most intuitive, reliable, and easy-to-use timecode generator for all applications.

Additionally, the unit features everything you need for high-end feature film and serial drama production while it is fully compatible with the market-leading ACN Lockit timecode system.

The Nano brother
With its matchbox-size form-factor, it provides timecode by way of our acclaimed Lockit circuitry to anything from DSLRs to film cameras. Despite its small size, it delivers our crystal-tuned timecode via the industry standard, locking 5-pin LEMO connector.

And for newer users that may not be using timecode gear, we include a LEMO to 3.5mm interface cable so the NanoLockit will work for DSLRs and consumer cameras right out of the box.

ACN Inside
It's wireless timecode that simply works. The onboard wireless ACN system enables syncing of all units on set with one click - and makes the NanoLockit compatible with all other ACN Lockit devices. The days of tediously jamming Lockits one-by-one with a cable are finally past.

This, along with the auto power on external supply feature, enables a set and forget process on hard to access configurations such as steadycams, gimbals, and drones - while the integrated battery will power the NanoLockit for at least 25 hours on a full charge.

The ACN is our Lockit-specific, long-range radio network that transmits timecode and metadata.

Easy-to-use Timecode
The buttons control all important functions. There's no need for an app to adjust settings in the field. Use the built-in real time clock or feed in external timecode via the LEMO port.

Syncing up even the most complex gear setup is literally a one button experience.

After being set to the internal Real Time Clock or jammed by external timecode, any NanoLockit can wirelessly jam sync all other units on the set. The framerate is set automatically when jammed and does not require connection to an app or in-depth menu navigation.

- TC-cable (LTC-OUT/EPIC)-
The Ambient Recording Clockit TC Output Cable is designed for the Red Epic / Scarlet cameras. Lemo Series 0B. 5-pin to Lemo Series 00. 4-pin connector cable.

- USB-Cable -
This Sharkoon USB2.0 cable is a connection cable of the plug connector B to A micro. A Micro-USB port can be found in mobile devices such as smartphones and modern tablets, MP3 players and digital cameras.

It serves as a connection cable from the PC to the corresponding external device and allows easy data exchange.

- Antenna Caps -
Color coded transmitter antenna caps (blue & red).

- NL-DL -
Reclosable Fasteners for Transportation Industry

Dual Lock Reclosable Fasteners are positive-locking, blind fasteners designed for attaching headliner, wall and door panels in the transportation industry. The products feature mushroom-shaped polyolefin stems that snap together, forming a high tensile closure. Dual Lock reclosable fasteners are used primarily to secure rigid and semi-rigid surfaces.

Some examples are to prevent headliner sag, attach center consoles, instrument panel bezels, headliners, wall and door panels and other interior trim Dual Lock reclosable fasteners overcome the often difficult alignment and installation problems of screws and hidden fasteners.

Dual Lock reclosable fasteners offer a cost effective alternative to traditional fasteners.

Benefits

Easy Alignment
Dual Lock reclosable fasteners engage in any orientation. The heads slide over each other until they are engaged with firm pressure, eliminating concerns about misalignment, premature or incomplete engagement.

Reclosability
Dual Lock reclosable fasteners can be opened and reclosed in high cycle life applications.

Rattle-Free
Dual Lock reclosable fasteners typically won't rattle loose.

Blind Attachment
Dual Lock reclosable fasteners can be attached on the backside of a trim piece where it won't interrupt the show surface.

Easy of Assembly
Dual Lock reclosable fasteners can be attached to components before they enter the assembly plant, reducing the number of parts and the required assembly time.

Multiple Attachment Methods
Dual Lock reclosable fasteners can be attached to a variety of surfaces by A) adhesive attachment with hot melt or pressure-sensitive adhesives, B) mechanical attachment using rigid back parts, C) high strength pop-in parts, D) sewing, E) stapling, or F) ultrasonic fusing. Custom mold-in parts for low temperature/low pressure mold applications are also available.

Positive Locking
Dual Lock reclosable fasteners fasten with an audible snap, assuring secure closure.
