Ambient Recording Tiny Lockit Timecode Generator and Transceiver Specifications

  • Connections

    External antenna F connector
    Lemo 5-pin Lemo/ACN: timecode in/out, RS232 serial port TX-RX, USB, GPIO, switch function, DC out
    Lemo 5-pin Lemo/TC: timecode in/out, ASCII, tune signal, PPF, DC in

  • Drift

    Less than 1 frame a day (-0,1 ppm)

  • Power

    Works on 2 AAA batteries, not included

  • Housing

    Machined and anodized aluminum

  • Dimensions

    2.8 x 2.2 x 0.8" / 7.11 x 5.58 x 2.03cm

  • Weight

    0.26lbs / 0.11kg

  • UPC Code

    192223057722

4 Accessories for Ambient Recording Tiny Lockit Timecode Generator and Transceiver

  • All Accessories (4)
  • Batteries & Power Supply (4)
Ambient Recording Timecode Input Cable, BNC 90 Degree to 5-pin Lemo Connector
Ambient Recording Timecode Input Cable, BNC 90 Degree to 5-pin Lemo Connector
$78.00
Recommended
Ambient Recording Clockit Timecode Cable 5-Pin Lemo to BNC 90 Deg
Ambient Recording Clockit Timecode Cable 5-Pin Lemo to BNC 90 Deg
$78.00
Recommended
Ambient Recording 5-pin Lemo Male to 3-pin XLR Female Timecode Cable
Ambient Recording 5-pin Lemo Male to 3-pin XLR Female Timecode Cable
$85.00
Recommended
Ambient Recording 5-pin Lemo to 3-pin XLR Male Timecode Output Cable
Ambient Recording 5-pin Lemo to 3-pin XLR Male Timecode Output Cable
$85.00
Recommended

About Ambient Recording Tiny Lockit Timecode Generator and Transceiver

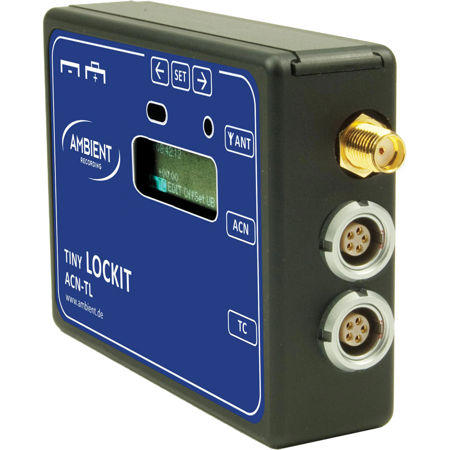

The Ambient Recording Tiny Lockit Timecode Generator and Transceiver is a temperature compensating timecode generator. Ambient Clockit Network support enables full generator-buffered timecode transceiver functionality. Connections consist of an antenna F connector and two 5-pin Lemos that can be configured for timecode in/out, RS232, USB, GPIO, switching, DC in/out, ASCII, tune signal and PPF. Drift is less than a frame a day.

Ambient Recording Tiny Lockit Timecode Generator and Transceiver Features

  • Supports all used frame rates
  • OLED display readable even in bright sunlight
  • Adjustable timecode output for recording TC on audio track
  • Conversion between LTC and MTC (via USB)
  • Built-in antenna
  • Works 12 hours on 2 AAA batteries (not included)

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Built-in antenna

What's in the box:

  • Ambient Recording Tiny Lockit Timecode Generator and Transceiver
  • Ambient Recording 1 Year Limited Warranty
