Armasight by FLIR IRIS Wireless Head-Mounted Display Kit with Wireless Transmitter, Wireless Controller

SKU: ARATVR000002

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Armasight by FLIR IRIS HMD Wireless Head-Mounted Display Kit Specifications

  • Display

    800 x 600 OLED VGA
    Manual brightness adjustment

  • Transmission Frequency

    2.4 GHz

  • Transmission Range

    10m (32.81')

  • Focal Length

    Eye piece: 1.1" (27.94mm) / 27mm (1.06")

  • Eye Relief

    25mm

  • Exit Pupil Diameter

    14mm

  • Diopter Adjustment

    +5 to -5

  • Mount Type

    Mini-rail

  • Battery / Runtime

    1 x 1000 mAh BL-5C Li-ion rechargeable battery / 2 hour

  • Indications

    On, Low Battery, Battery Charging

  • Operating Temperature

    -4 to 104 deg. F (-20 to 40 deg. C)

  • Weatherproofing

    Waterproof, submersible to 3.3" / 1 m for 30 minutes

  • Dimensions

    Eyepiece: 79 x 44 x 47mm (3.11 x 1.73 x 1.85")
    Controller: 76 x 50 x 21mm (2.99 x 1.97 x 0.83")
    Transmitter: 76 x 50 x 31mm (2.99 x 1.97 x 1.22")

  • Weight

    Eyepiece: 150g (5.29 oz)
    Controller: 80g (2.82 oz)
    Transmitter: 80g (2.82 oz)

  • UPC Code

    849815007411

About Armasight by FLIR IRIS HMD Wireless Head-Mounted Display Kit

Armasight's by FLIR Iris Head Mounted Display (Iris HMD) is a remote commercial heads-up display for thermal and digital imaging systems. The Iris HMD allows the operator to view the system display without looking through the eyepiece. This permits the operator to remotely view the imagery.

Weighing in at 135g, the Iris Head Mounted Display is small and lightweight with very low power consumption. It can operate continuously on rechargeable lithium batteries for up to 2 hours. The Iris HMD interface is compatible with most head and helmet mounts with the selection of the appropriate adapter. Once installed, the Iris HMD can be adjusted for either left or right eye use. Armasight's optional ergonomic, fully adjustable padded head mount assembly allows the Iris HMD to be flipped out of the line of sight. The Iris Head Mounted Display is waterproof for use in all weather conditions. Operators adjustable settings include display brightness, diopter adjustment and PAL/NTSC selection.

The Armasight by FLIR Iris HMD is the right tool for enhancing operational flexibility and capability. The Armasight by FLIR Iris HMD is the ideal unit for camping, hunting, boating, security and law enforcement.

Armasight by FLIR IRIS HMD Wireless Head-Mounted Display Kit Features

  • Head or helmet-mountable flip-up display
  • Left or right eye use
  • High Performance OLED display
  • Manual display brightness control
  • Video-In: analog PAL/NTSC standard, cable included
  • Self contained highly efficient power supply
  • Waterproof

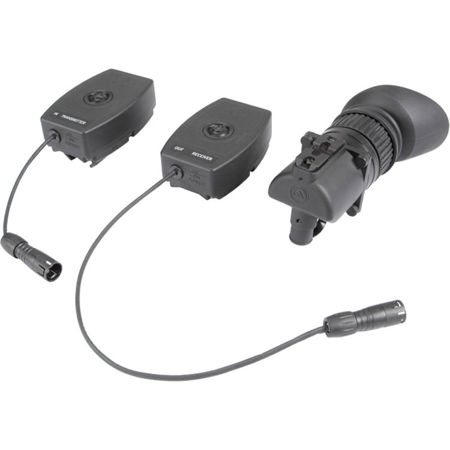

What's in the box:

  • Armasight by FLIR IRIS HMD Wireless Head-Mounted Display
  • Wireless Transmitter
  • Wireless Controller
  • Charger
  • Carry Case
  • Armasight by FLIR 2 Year Limited Warranty
