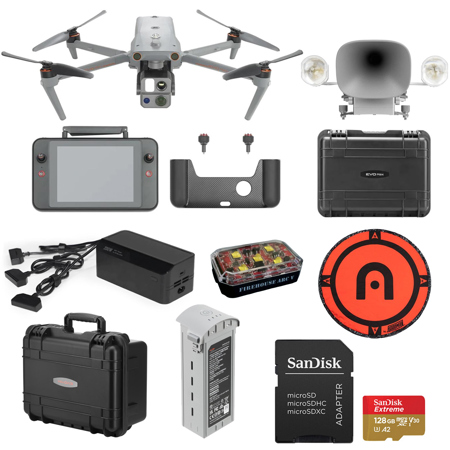

Autel Robotics EVO Max 4T 8K Drone with Smart Controller V3, Bundle with ARC "V" Strobe Light, 128GB Memory Card, Speaker and Spotlight Combo, Battery, Charger, Landing Pad and Hard Case

SKU: AREVOMAX4TKB

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What kind of environments can the EVO Max 4T navigate through?

The EVO Max 4T is designed to navigate through complex environments like mountains, forests, and buildings. It can even operate in GPS-denied environments.

What is the A-Mesh system in the EVO Max 4T?

The A-Mesh system in the EVO Max 4T is the drone industry's first mesh networking technology. It enables drone-to-drone autonomous communication, connection, and collaboration.

What does the mission-ready payload of the EVO Max 4T include?

The mission-ready payload of the EVO Max 4T integrates a wide-angle camera, zoom camera, thermal camera, and a laser rangefinder for all data capture needs and critical decision making.

What features does the Autel Enterprise App offer?

The Autel Enterprise App offers a new interface for simple, efficient operation. It provides various autonomous and semi-autonomous mission planning for public safety, inspection, and surveying.

What are the features of the Autel Smart Controller V3?

The Autel Smart Controller V3 comes with a daylight readable display, functional interface, ultra-long battery life, and built-in 128GB storage space. It also allows connection to 3rd party displays or monitors.

Reviews about this item

Review Summary

2023-12-12T07:13:05

Rated 5 out of 5

Autel Max 4T

This thing has every feature you can think of. The thermal is amazing and offers several color pallets to suit your needs.

BRANDON H.

Autel Robotics EVO Max 4T Specifications

General

General

Jump to...
  • Number of Rotors

    4

  • Configuration

    Drone with Camera

  • Edition

    With Smart Controller

  • FAA Registration (Non-Commercial Usage)

    Required

  • Features

    Thermal Camera, Camera Included

  • Kit Style

    Essential Kit

  • Model

    Autel EVO Max 4T

  • Skill Level

    Enterprise

Aircraft

Jump to...
  • Color

    Gray

  • Maximum Flight Time

    42 Minutes (windless)

  • Takeoff Weight

    4.4 lb / 1999 g

  • Max Ascent/Decent Speed

    Max Ascent Speed - 8m/s
    Max Descent Speed - 6m/s

  • Max Horizontal Speed

    23m/s (windless near sea level)

  • Max Takeoff Altitude

    13,124 ft (4000m)

  • Max Hovering Time

    38 mins (windless)

  • Max Tilt Angle

    35 Degree

  • Max Angular Velocity

    Pitch: 300 Degree/s; Yaw: 120 Degree/s

  • Global Navigation Satellite System (GNSS

    GPS+GLONASS+Galileo+Beidou

  • Hovering Accuracy Range

    Vertical:
    +/-0.1 m (Vision System enabled)
    +/-0.3 m (GPS enabled)
    +/-0.15 m (RTK enabled)
    Horizontal:
    +/-0.15 m (Vision System enabled)
    +/-0.3 m (GPS enabled)
    +/-0.1 m (RTK enabled)

  • IP Rating

    IP43

  • Camera Still Resolution

    48 MP, 50 MP

  • Video Resolution

    8K

  • Image Sensor

    1/2" CMOS, Effective pixels: 48M

  • Lens

    Zoom Camera(Telephoto) - Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm)
    Aperture: f/2.8-f/4.8

    Wide Camera - \tDFOV¼e85°
    Focal length: 4.5 mm (equivalent: 23 mm)
    Aperture: f/1.9
    AF motor: 8-wire SMA, PDAF focus

    Thermal Camera - DFOV: 42° IFOV: 0.92mrad
    Aperture: 13mm
    Focus: f/1.2

  • ISO Range

    Zoom Camera (Telephoto)
    Normal Mode:
    Auto: ISO100 - ISO6400
    Manual:
    Photo: ISO100 - ISO12800
    Video: ISO100 - ISO6400
    Wide Camera
    Auto: Photo: ISO100-ISO6400
    Video: ISO100-ISO64000 (Night scene mode: up to ISO64000)
    Manual:
    Photo: ISO100-ISO12800
    Video: ISO100-ISO6400

  • Shutter Speed

    Photo: 8s - 1/8000s
    Video: 1s - 1/8000s

  • Gimbal Option

    3-Axis Gimbal

  • Stabilization

    ±0.005°

  • Mechanical Range

    Pan: -135 Degree to 45 Degree
    Tilt: -45 Degree to 45 Degree
    Roll: -45 Degree to 45 Degree

  • Controllable Range

    -90 Degree to 30 Degree

  • Max Control Speed (tilt)

    200°/s

  • Angular Vibration Range

    <0.005°

Sensing

Jump to...
  • Forward

    Measurement Range: 0.7 to 164.0' / 0.2 to 50 m
    Field of View: 60° (Horizontal) / 80° (Vertical)

  • Backward

    Measurement Range: 0.7 to 164.0' / 0.2 to 50 m
    Field of View: 60° (Horizontal) / 80° (Vertical)

  • Lateral

    Measurement Range: 0.7 to 164.0' / 0.2 to 50 m
    Field of View: 60° (Horizontal) / 80° (Vertical)

  • Upward

    Measurement Range: 0.7 to 164.0' / 0.2 to 50 m
    Field of View: 360° (Horizontal) / 190° (Vertical)

  • Downward

    Measurement Range: 0.7 to 164.0' / 0.2 to 50 m
    Field of View: 360° (Horizontal) / 190° (Vertical)

Video Transmission

Jump to...
  • Operating Frequency

    2.4G/5.2G*/5.8G/900MHz
    5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.

  • Transmitter Power (EIRP)

    2.4GHz: <33dBm¼FCC¼, <20dBm(CE/SRRC/MIC)
    5.8GHz: <33dBm(FCC), <30dBm(SRRC), <14dBm(CE)
    5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC)
    5.25-5.35GHz: <30dBm(FCC), <23dBm(SRRC/MIC)

  • Max Transmission Distance

    FCC: 20km
    CE: 8km (with interference)

Battery

Jump to...
  • Capacity

    5800mAh

  • Voltage

    14.88V

  • Battery Material

    Lithium ion

  • Energy

    120wh

  • Battery Quantity

    2

Remote Controller

Jump to...
  • Remote Controller

    with Remote Controller

  • Max Operating Time

    3 hours (Max. brightness)
    4.5 hours (50% brightness)

  • Operating Temperature

    -4 Degree F to 104 Degree F (-20 Degree C to 40 Degree C)

Physical

Jump to...
  • Dimensions

    22.6 x 25.9 x 5.8" (576 x 660 x 149mm) (Folded, incl. propellers)
    13.3 x 16 x 5.82" (340 x 407 x 148mm) (Folded, excl. propellers)
    10.1 x 5.3 x 5.2" (257 x 136 x 133mm) (Unfolded, excl. propellers)

  • Weight

    3.5 lbs (1.6kg) (With battery and gimbal included)

1 Accessories for Autel Robotics EVO Max 4T 8K Drone with Smart Controller V3, Bundle with ARC "V" Strobe Light, 128GB Memory Card, Speaker and Spotlight Combo, Battery, Charger, Landing Pad and Hard Case

  • All Accessories (1)
  • Drone Accessories (1)

About Autel Robotics EVO Max 4T

Explore the cutting-edge technology and unparalleled autonomy of the EVO Max 4T 8K Drone with Smart Controller V3. This drone is a leader in drone intelligence, equipped with advanced sensors and a thermal payload that unlock new object identification and tracking scenarios. The EVO Max 4T is designed to assess complex environments and create real-time 3D flight paths for superior obstacle avoidance, even in GPS-denied environments.

The EVO Max 4T is not just powerful, but also portable with its foldable, weather-resistant design. It's capable of navigating through complex environments like mountains, forests, and buildings, making it ideal for applications such as 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

Experience the ultimate obstacle avoidance with the EVO Max 4T, the only commercial drone that combines traditional binocular vision systems with millimeter-wave radar technology. This unique combination allows the drone to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.

The EVO Max 4T is equipped with advanced flight control modules and algorithms designed to counter RFI, EMI, and GPS spoofing. This makes it capable of flying confidently near power lines, critical structures, and in complex areas.

Experience the drone industry's first mesh networking technology with the EVO Max 4T's A-Mesh system. This system enables drone-to-drone autonomous communication, connection, and collaboration, improving BVLOS operation effectiveness.

The EVO Max 4T comes with a mission-ready payload that integrates a wide-angle camera, zoom camera, thermal camera, and a laser rangefinder for all data capture needs and critical decision making. The drone also supports 8K 10x optical zoom, and 160x Max. Hybrid Zoom with clear details on targets up to 1.24 miles away.

The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. The app provides various autonomous and semi-autonomous mission planning for public safety, inspection, and surveying.

The EVO Max 4T also prioritizes data security with features like privacy protection and encrypted data storage. The drone supports AES-256 encryption for photos, videos, and flight logs, which are password-protected.

The Autel Smart Controller V3 comes with a daylight readable display, functional interface, ultra-long battery life, and built-in 128GB storage space. The controller allows connection to 3rd party displays or monitors and offers up to 4.5 hours of continuous operation.

In conclusion, the EVO Max 4T 8K Drone with Smart Controller V3 is a powerful, portable, and intelligent drone designed for a variety of applications. It's equipped with advanced features and technologies that make it a leader in drone intelligence.

Autel Robotics EVO Max 4T Features

  • 15s Take Off
  • 8K 10x Optical Zoom
  • IP43 Weather Rating
  • Hot-Swappable Batteries
  • Navigation In GPS Denied Environments
  • 12.4 miles Transmission Range
  • 42 mins Max. Flight Time
  • 720 Degree Obstacle Avoidance

Product Documents

User Manual

Key Features

  • Advanced drone intelligence with real-time 3D flight path creation for superior obstacle avoidance
  • A-Mesh system for drone-to-drone autonomous communication, connection, and collaboration

What's in the box:

  • Autel Robotics EVO Max 4T 8K Drone
  • Smart Controller V3 w/Sticks
  • Battery
  • Propeller
  • Gimbal
  • Gimbal Cover
  • 64GB SD Card
  • Battery Charger and Cable
  • 2x Pair of Spare Propeller
  • Screwdriver
  • 4x Screws
  • Controller Lanyard
  • Controller Cover
  • 2x Controller Spare Joystick
  • RC Charger
  • RC Cable
  • Data Cable
  • Rugged Case
  • Manual
  • Autel Robotics 1 Year Limited Warranty
  • Bundle Includes:
  • ARC "V" Strobe Light (White)
  • (See the Specification Section for Additional Included Items)
