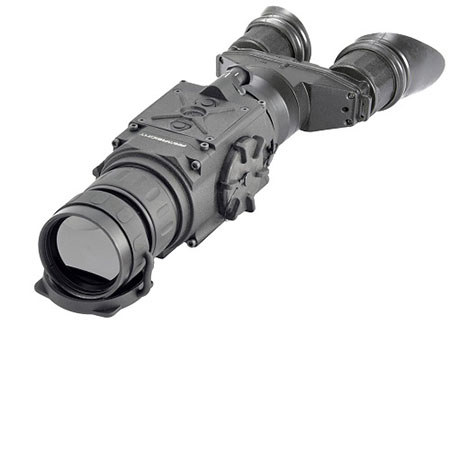

Armasight by FLIR Helios 336 3-12x42(60Hz) Thermal Imaging Bi-Ocular, 10mm Exit Pupil, 45mm Eye Relief, FLIR Tau 2, 336x256 Pixel Array Format, Waterproof

SKU: ARH33631260

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Armasight by FLIR Armasight Helios 336 3-12x42 (60Hz) Thermal Imaging Bi-Ocular Specifications

  • Magnification (NTSC/PAL)

    2.8x / 3.4x

  • Objective Lens Type

    Germanium

  • Type of Focal Plane Array

    FLIR Tau 2

  • Pixel Array Format

    336x256

  • Pixel Size

    17 um

  • Color Modes

    White Hot/ Black Hot/ Rainbow/ Various Color modes

  • Resolution

    0.40 mrad

  • Display Type

    AMOLED SVGA 060

  • Range of Focus

    5 to infinity

  • Controls

    Direct

  • Field of View - ang. (X / Y)

    7.8deg. / 5.9deg.

  • Objective Focal Length

    42mm

  • Objective F-number

    1:1

  • Exit Pupil Diameter

    10mm

  • Eye Relief

    45mm

  • Power Supply

    2x CR123A (3V)

  • Environmental Rating

    Waterproof

  • Operating Temperature

    -40 to +50deg.C (-40 to +122deg.F)

  • Battery Life at 20 deg.C (68 deg.F)

    3 Hrs

  • Storage Temperature

    -50 to +70deg.C (-58 to +158deg.F)

  • Dimensions

    257.00 x 110.00 x 75.00mm (10.11 x 4.33 x 2.95")

  • Weight

    0.81kg (1.80lbs)

  • UPC Code

    849815003888

About Armasight by FLIR Armasight Helios 336 3-12x42 (60Hz) Thermal Imaging Bi-Ocular

The Armasight Helios 336 3-12x42 (60Hz) Thermal Imaging Bi-Ocular is the latest and most technologically advanced family of thermal imaging bi-oculars on the market today. It is better for sustained viewing periods and improved depth perception. The Armasight Helios 336 3-12x42 (60Hz) is based on the latest FLIR Tau 2 VOx microbolometer core. It is a solid state, uncooled, long-wave infrared, magnified, dedicated handheld thermal imager intended for day and nighttime missions.

It also allows you to detect targets by cutting through snow, dust, smoke, fog, haze and other atmospheric obscurants. Unlike the use of laser targeting or near infrared illumination to augment night vision equipment, it is extremely difficult to detect with other devices, as they emit no visible light or RF energy. The Armasight Helios 336 3-12x42 (60Hz) Thermal Imaging Bi-Ocular represents one of the most sophisticated devices on the market today, due to its superior price-to-performance value.

Armasight by FLIR Armasight Helios 336 3-12x42 (60Hz) Thermal Imaging Bi-Ocular Features

  • The lightest and most compact scope in its class
  • User selectable NTS C or PAL format
  • Easy and Intuitive Drop-down user interface
  • Digital E-Zoom: 1x, 2x and 4x
  • Color Modes: White Hot/ Black Hot/ Rainbow/ Various Color modes
  • Extended operation time with optional external battery power supply
  • Recording: video output /optional Video Recorder with onboard replay
  • Tactical scenarios (CQB, etc.)
  • Waterproof, CNC machined aircraft-aluminum alloy construction
  • Rapid start-up

Key Features

  • Lightest & most compact scope in its class
  • User selectable NTS C or PAL format
  • Easy & Intuitive Drop-down user interface
  • Digital E-Zoom: 1x, 2x & 4x
  • Color Modes: White Hot/ Black Hot/ Rainbow/ Various Color modes
  • Extended operation time

What's in the box:

  • Armasight Helios 336 3-12x42 (60Hz) Thermal Imaging Bi-Ocular
  • AWReC (Advanced Wireless Remote Control)
  • Instruction Manual
  • Picatinny Adapter for AWReC (Advanced Wireless Remote Control)
  • Soft Carrying Case
  • 2 x Lithium Battery CR123A
  • Video Cable
  • Armasight 3 Year Limited Warranty and 10 Year FLIR Detector Warranty
