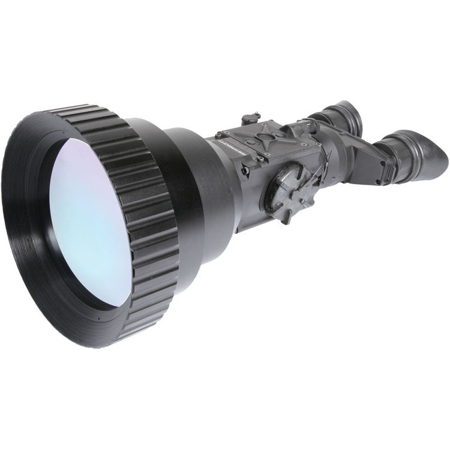

Armasight by FLIR Helios 640 HD 4-32x100 30Hz Thermal Imaging Bi-Ocular, Water and Fog-Resistant

The Armasight Helios HD is a family of Thermal Imaging bi-oculars with professional 75mm and 100mm Germanium (Ge) objective lenses. The bi-ocular design is better for sustained viewing periods and improved depth perception. The Helios HD product line is based on the latest FLIR Tau 2 VOx microbolometer core technology and includes a variety of different models, each optimizing performance, price and state-of-the-art capabilities for a variety of uses and missions. The Helios HD is a solid-state, uncooled, long-wave infrared, magnified, dedicated handheld thermal imager intended for day and nighttime missions.

• 100mm Objective Germanium Lens Options
• Easy and intuitive Drop-down user interface
• Digital E-Zoom: 1x, 2x, 4x and 8x
• Imaging Filter Algorithms: - Active Contrast Enhancement (ACE) - Second Generation Digital Detail Enhancement (DDE) - Smart Scene Optimization (SSO) - Information-Based Histogram Equalization (IBHEQ) - Silent Shutterless Non-uniformity Correction (SSN)
• Color Modes: White Hot/ Black Hot/ Rainbow/ Various Color Modes
• Extended Operation Time with Optional External Battery Power Supply
• Recording: Video Output /Optional Video Recorder with onboard replay
• Wireless remote control
• CNC machined aircraft-aluminum alloy construction
• Rapid start-up
• Made in the USA

Helios HD Thermal Imaging bi-oculars are characterized by their simple but intuitive controls, functions and features that are layered among direct button adjustments, direct combination button functions and electronic menu selections. The Helios HD has the ability to record imagery and is equipped with video-out capabilities. The Helios HD Thermal Imaging bi-ocular represents one of the most sophisticated devices for long-range observation on the market today, due to its superior price-to-performance value.

Special User-Adjustable Imaging Tools

Active Contrast Enhancement (ACE)
A digital "Contrast" correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.

Second Generation Digital Detail Enhancement (DDE)
A "Sharpness" correction that digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.

Smart Scene Optimization (SSO)
A fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.

Information-Based Histogram Equalization (IBHEQ)
A "Sky/Sea" enhancement - information based environment dependent algorithm that automatically adjusts camera gain and excludes pixels determined to not contain critical information, specifically helpful in scenes with lots of sky or water.

User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC)
There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC). During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Helios models allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.

Silent Shutterless NUC (SSN)
In addition to user controlled manual NUC/FFC all Helios models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is an always ON enhancement.
