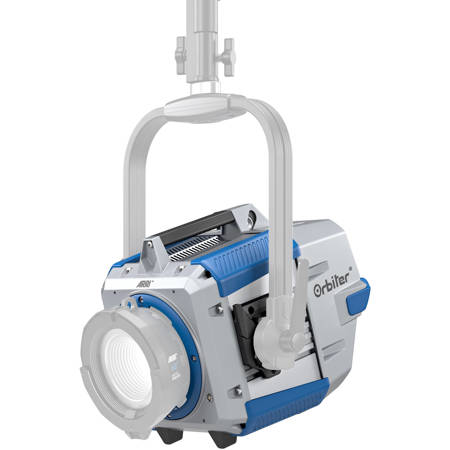

ARRI Orbiter 30 Degree Set

- Orbiter LED Light with Open Face without Lens, Yoke & Cable -

What's new?

Everything.
Orbiter is an ultra-bright, tunable, and directional LED fixture from ARRI. All systems in Orbiter are completely new and designed with versatility in mind.

Changeable Optics
Changeable optics is the core innovation in Orbiter. With a wide variety of optics to choose from, Orbiter transforms into the perfect light for your application without sacrificing beam, output, or color quality. The Quick Lighting Mount (QLM) in Orbiter allows for optics with vastly different properties to be connected to the fixture.

Open Face
The open face optics produce a high-output, directional beam of light in several different beam angles including 15 Degree , 30 Degree , and 60 Degree . Perfect for throwing light long distances or providing a broad swath of light.

Projection
The high-quality projection optics contain high-end lenses that provide even illumination and color across the entire beam field for superior results. The fixed beam angles available are 15 Degree , 25 Degree , 35 Degree (wider angles may be added in the future). The zoom projection optics allow for flexibility in all kinds of applications.

Dome
The dome optics are fabric spheres available in three different diameters - small (approx. 0.25 m), medium (approx. 0.5 m) and large (approx. 0.9 m). The dome emits omnidirectional light, great for illuminating a large area with a beautiful, soft quality of light.

Light Banks
The light bank adapter creates a direct mounting point for Chimera and DoPchoice products. With easy attachment and no additional optical elements needed, the light bank adapter allows for a controlled soft light with amazing output.

Say hello to ARRI Spectra

Six-Color Light Engine
Including a red, green, blue, amber, cyan, and lime LED, the ARRI Spectra six-color light engine translates into a wider color gamut, more accurate colors, and most importantly, higher color rendition across the entire CCT range.

Wide Gamut
Hues are precisely reproduced and the increased gamut allows for 15% more color possibilities when compared to previous ARRI light engines.

Ultra-High Color Rendering
Orbiter has a larger CCT range of 2,000 to 20,000 K with ultra-high color rendition across all color temperatures. Skin tones look amazing and natural.

Compact Light Engine
Cutting-edge LEDs that have never been used before in a luminaire and their arrangement creates a homogeneous color beam field with amazing brightness.

Color Sensor Mode
The new Color Sensor Mode in Orbiter will read the ambient color surrounding the fixture and reproduce the color with great accuracy. There are two measurement types: continuous and momentary. Continuous will constantly measure the ambient color and update the light output accordingly. Momentary will only take one measurement of the ambient color with the press of a button. This new color mode is perfect in situations where the light is changing. Orbiter can automatically adjust for color changes without any interaction.

Sheer Output
Orbiter is an extremely bright and powerful, directional LED fixture with an output similar to that of the corresponding HMI systems. Orbiter's high, yet tunable, ARRI Spectra light engine output can create hard shadows with defined edges. This revolutionary light engine is 76 times smaller than the L10's light engine but produces the same power draw and greater output. A dense arrangement of over 190 LEDs gives Orbiter a point source-like aperture while maintaining full-color tunability with a new six-color LED mixture. These cutting-edge LEDs have never been used before in a luminaire and the arrangement creates a homogeneous color-beam field with amazing brightness.

Technology Unleashed
A new era of digital lighting is truly upon us. Orbiter is the most technologically advanced luminaire ever to be created for image capture while maintaining superior color fidelity. With state-of-the-art electronics, Orbiter is able to perform more tasks than previous luminaires.

Electronics
Orbiter's processor is four times faster than the SkyPanel with 125 times more memory, setting the stage for extensive software features and updates in the future.

Dimming
Using a combination of three dimming techniques, Orbiter's cutting-edge electronics provide smooth dimming down to zero without color changes or jumps.

Power
Orbiter includes a lightweight internal power supply and a 3-pin XLR battery input for 48 V batteries.

Weatherproof
All of this technology comes in a weatherproof housing which means Orbiter can be used outdoors in rain, snow, and other inclement weather.

Powerful Software
Orbiter is able to take advantage of over five years of software development for the SkyPanel. Orbiter's new software called LiOS (Lighting Operating System) includes all the innovative and groundbreaking features from SkyPanel plus others, making Orbiter one of the most fully-featured luminaires on the market.

- Orbiter Manual Yoke with Spigot -

Orbiter Manual Yoke with Spigot is required to mount Orbiter to Light Stand (combo stand) or to hang from studio grid with Junior Pipe Clamp. Junior Pin diameter is 1 1/8".

- 23' Power Cord with Switch -

Arri 23' Power Cord with Switch is designed for L5 LED Fresnel.

- Control Panel for Orbiter -

With a 4" full-color display, quick navigation buttons, and integrated sensors, the Orbiter control panel allows for easy use with a graphic user interface. Simplified menu structure and re-imagined user interfaces provide one-glance operational views and uncluttered screens. This intuitive design makes changing the color or finding a setting easier than ever before. In addition, the control panel is removable and can be used handheld with the aid of a 5 or 15 m (16.4 or 49.2 ft) control panel cable.

- Cable for Control Panel -

Cable for Control Panel with length 16.4' (5m)

- 30 Degree Open Face Optic for Orbiter -

The open face optics produce a high-output, directional beam of light in several different beam angles including 15 Degree, 30 Degree, and 60 Degree. Perfect for throwing light long distances or providing a broad swath of light.

Changeable Optics
Changeable optics is the core innovation in Orbiter. With a wide variety of optics to choose from, Orbiter transforms into the perfect light for your application without sacrificing beam, output, or color quality. The Quick Lighting Mount (QLM) in Orbiter allows for optics with vastly different properties to be connected to the fixture.

- Four Leaf Barndoor for 30 Degree Optic -

Barndoors narrow the beam spread of a light fixture. They help create a 3-dimensional look to a lighting scheme by placing light in a specific area, or by keeping it away. The more leaves a barndoor set has, or the longer the leaves, the more precisely the beam of light can be controlled.
